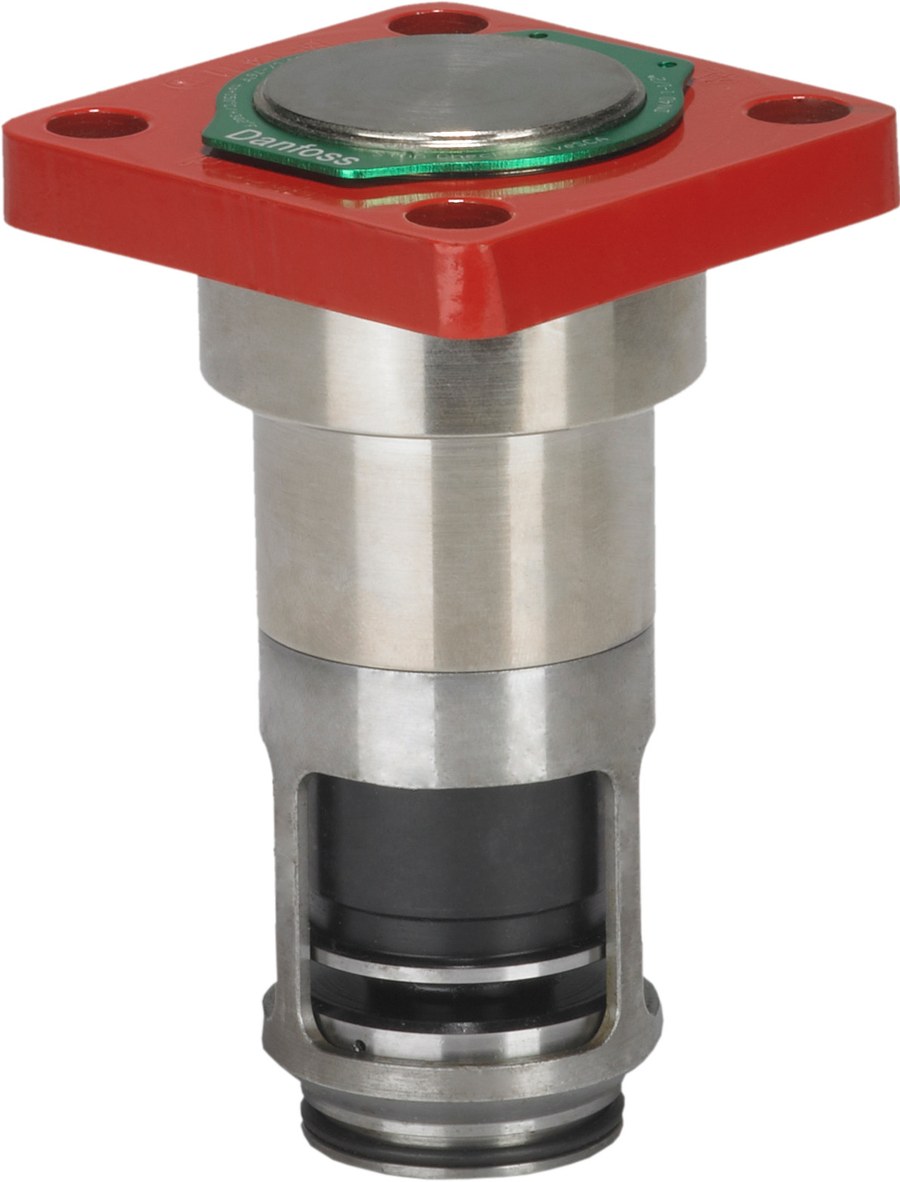

Danfoss CHV-X 50 function module (Top Complete), fits 50 mm (2 in) CHV-X 50 check valve body, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CHV-X 50 function module (also called Top Complete) for the SVL Flexline modular industrial-refrigeration valve platform, store code 148B5747. The function module is the complete internal check assembly (bonnet, seat, check cone and spring, gaskets and bolts) that mounts on the matching CHV-X 50 valve housing to give the non-return (check) function. It is the field-serviceable repair/replacement assembly, not a complete valve and not a loose gasket, so the check valve function can be renewed without cutting the housing out of the line. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 1.23 kg, gross weight 1.362 kg. Specifications per Danfoss store code 148B5747.
Technical Specifications
- Type
- CHV-X 50 function module (Top Complete) — complete operating top part
- Code number
- 148B5747
- Fits body
- CHV-X 50 check valve housing (50 mm (2 in))
- Function
- check / non-return top
- Housing/valve size class
- 50 mm (2 in)
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Weight
- net weight 1.23 kg, gross weight 1.362 kg
- Approvals
- CE
- EAN
- 5702428486132
- Brand
- SVL Flexline
- Product group
- Check valves
- Type designation
- Top Complete
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 150 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R152a; R170; R22; R227ea; R236fa; R245fa; R290; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R452C; R454A; R454B; R454C; R455A; R463A; R502; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a; R717; R744
- REACH candidate-list substances
- No
- EU RoHS compliance
- Yes
- Net weight
- 1.23 Kilogram
- Approval
- CE
- China RoHS compliance
- Yes
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- CHV-X 50
Standards & Compliance
- Size / Series
- 50 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline CHV-X 50 function module. Mounts on the matching CHV-X 50 valve housing / SVL 50 multifunction valve body. Function modules are size-specific — confirm the housing nominal size (50 mm (2 in)) before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and the other check/strainer components of the same size.
