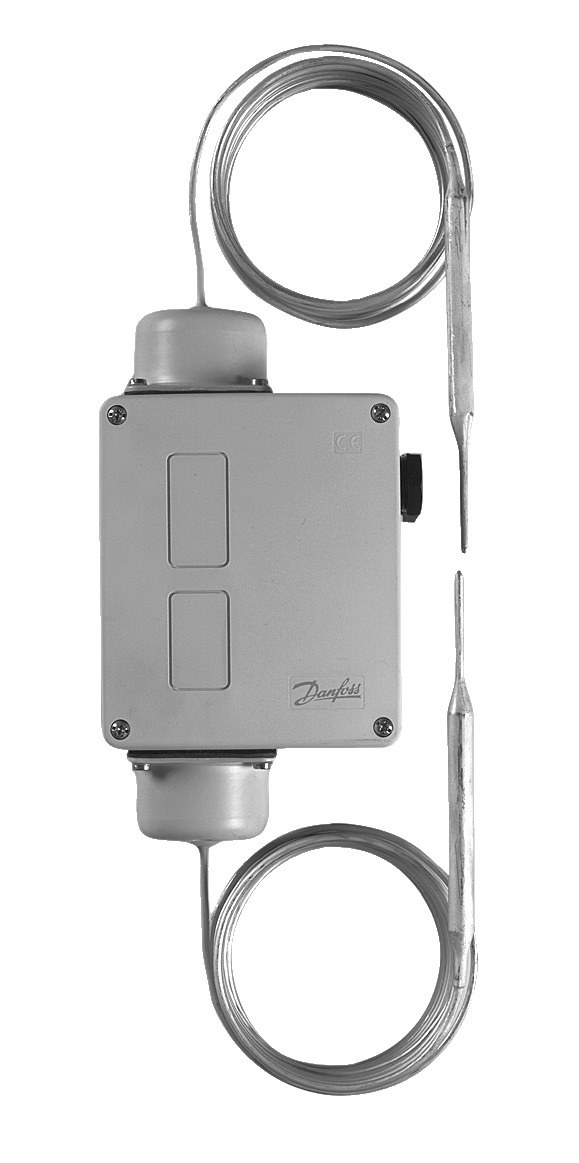

Danfoss RT270 Thermostat -30 to 40 degC SPDT Auto Reset 5 m Capillary
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT270 mechanical thermostat (temperature switch) with cylindrical remote sensor and 5 m capillary, SPDT contact and auto reset. Temperature range -30 to 40 degC; G 3/8 male connection (ISO 228-1); enclosure IP66. Danfoss code number 017D003166.
Technical Specifications
- Brand
- Danfoss
- Model
- RT270 thermostat
- Code number
- 017D003166
- Temperature range
- -30 to 40 degC (-20 to 105 degF)
- Contact differential
- 2 degC
- Contact function
- SPDT
- Reset
- Auto
- Sensor
- cylindrical remote sensor
- Capillary tube length
- 5000 mm
- Connection
- G 3/8 male (ISO 228-1)
- Enclosure
- IP66
- Ambient temperature range
- -50 to +70 degC
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CE, EAC, CCC, RMRS
- EAN
- 5702428042789
- Net weight
- 1.422 Kilogram
- Type
- RT270
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- CCC
- Cap. tube length fraction [in]
- 196 7/8 in
- Capillary tube length [mm]
- 5000 mm
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact differential [°C]
- 2 °C
- Diff. temp. setting range [°C] [max]
- 15 °C
- Diff. temp. setting range [°C] [min]
- 0 °C
- Diff. temp. setting range [°F] [max]
- 59 °F
- Diff. temp. setting range [°F] [min]
- 0 °F
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- Max. sensor temperature [°C]
- 65 °C
- Max. sensor temperature [°F]
- 149 °F
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Relay release time [s]
- 0 s
- Reset function
- Auto
- Sensor size (Ø x L) [in]
- 3/8 x 4 1/4 in
- Sensor size (Ø x L) [mm]
- 9.5 x 110 mm
- Sensor type
- Cylindrical Remote Sensor
- Temperature range [°C] [max]
- 40 °C
- Temperature range [°C] [min]
- -30 °C
- Temperature range [°F] [max]
- 105 °F
- Temperature range [°F] [min]
- -20 °F
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Cylindrical remote sensor, copper capillary
- Thread Standard
- ISO 228-1
- Temperature Range
- -30 to 40 degC
- IP Rating
- IP66
- Classification / Approval
- CE, EAC, CCC, RMRS
- HS Code
- 9032.10
Compatibility & Fitment
Cylindrical remote sensor with 5 m capillary; G 3/8 male (ISO 228-1). Confirm temperature range and capillary length against application.
Product Documentation
More from Danfoss
Danfoss

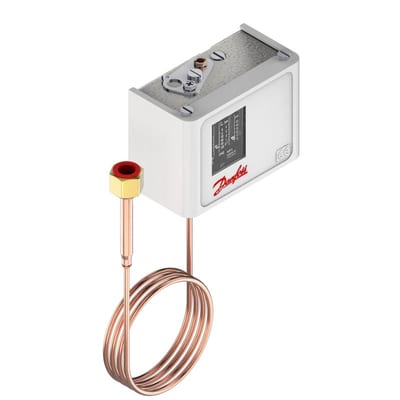

Danfoss KP1 pressure switch, -0.2 to 7.5 bar, auto reset, SPDT, 1/4 in flare female connection
060-110566
Danfoss

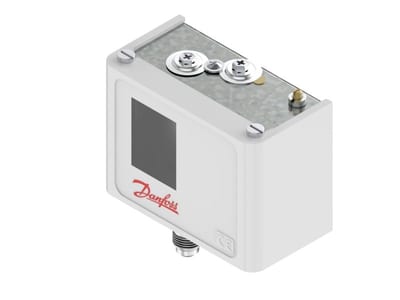

Danfoss KPR1 pressure switch, -0.2 to 8 bar, narrow 0.5-1.5 bar differential, auto reset, SPDT, 1/4 in flare
060-110766
Danfoss

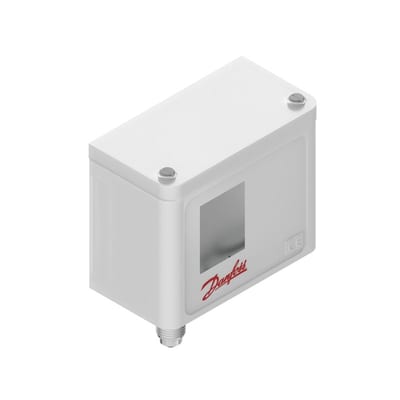

Danfoss KP5 pressure switch, 8 to 32 bar, auto reset, SPDT gold contacts, 1/4 in flare
060-114266
Danfoss

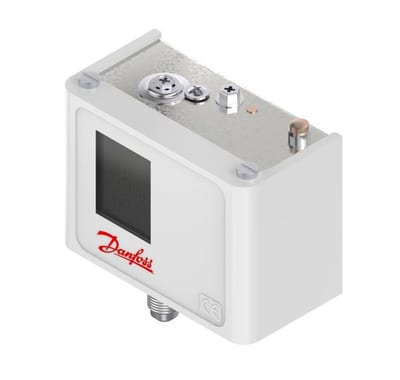

Danfoss KPR5 pressure switch, 6 to 18 bar, narrow 1-2.5 bar differential, auto reset, SPDT, 1/4 in flare
060-117466
Danfoss

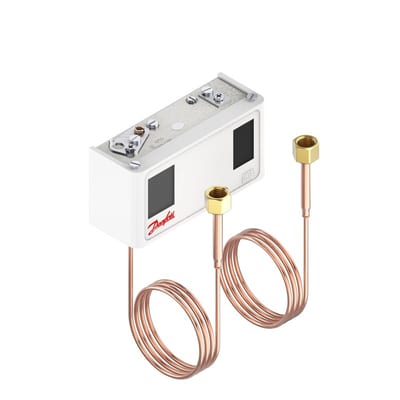

Danfoss KP15 dual pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, auto/auto, SPDT, 1/4 in flare female
060-119966
Danfoss
Danfoss KP7W high-pressure switch, 8 to 32 bar, wide 4-10 bar differential, auto reset, SPDT, 6 mm solder ODF
060-120266
Danfoss

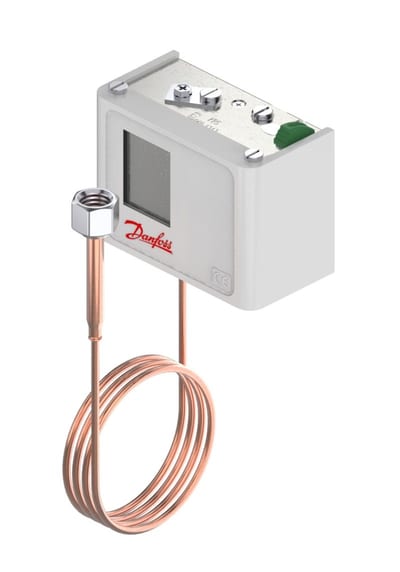

Danfoss KP5 pressure switch, 8 to 32 bar, manual (max) reset, SPDT, 1/4 in flare
060-121266
Danfoss

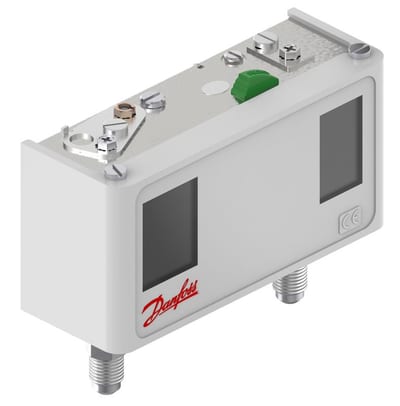

Danfoss KP15 dual pressure switch, LP -0.2 to 7.5 bar auto / HP 8 to 32 bar manual-max, SPDT, 1/4 in flare male
