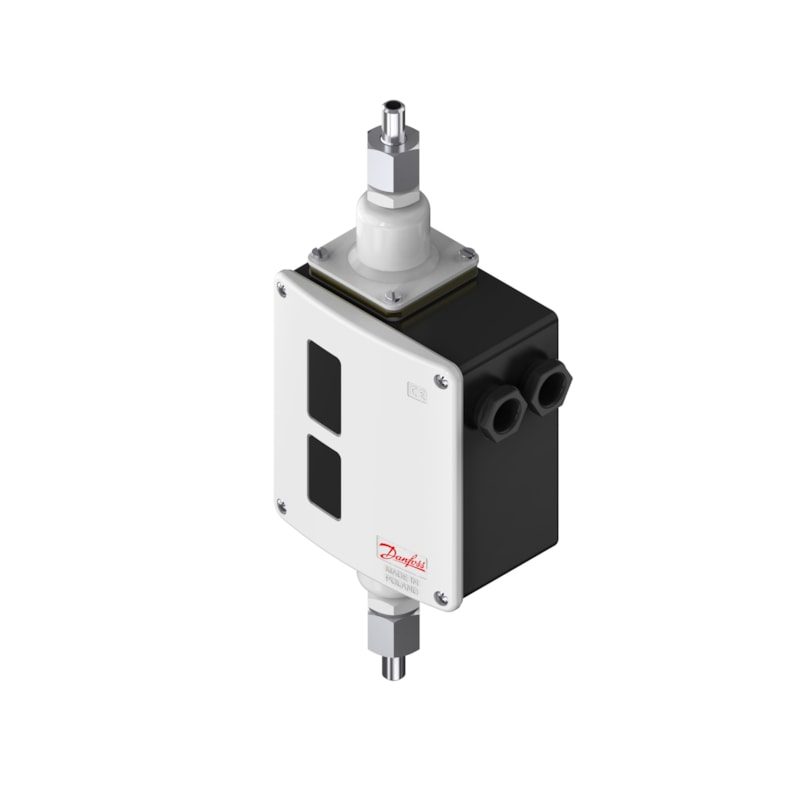

Danfoss RT260A Differential Pressure Switch 0.5 to 4 bar SPDT Manual Max Reset G3/8
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT260A mechanical differential pressure switch with bellows sensing element, SPDT contact and manual maximum reset (lockout on high differential). Differential setting range 0.5 to 4 bar; G 3/8 male pressure connection (ISO 228-1); enclosure IP54. Danfoss code number 017D002266.
Technical Specifications
- Brand
- Danfoss
- Model
- RT260A differential pressure switch
- Code number
- 017D002266
- Differential pressure range
- 0.5 to 4 bar (0.05 to 0.4 MPa; 7 to 58 psi)
- Maximum working pressure
- 22 bar
- Contact function
- SPDT
- Reset
- Manual maximum
- Contact differential
- 0.3 bar
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 male (ISO 228-1)
- Enclosure
- IP54
- Ambient temperature range
- -40 to +70 degC
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CE, EAC, CCC, CMIM, KR, RINA, RMRS
- EAN
- 5702428042833
- Net weight
- 1.006 Kilogram
- Type
- RT260A
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact differential [bar]
- 0.3 bar
- Diff.press.setting range [bar] [max]
- 4 bar
- Diff.press.setting range [bar] [min]
- 0.5 bar
- Diff.press.setting range [MPa] [max]
- 0.4 MPa
- Diff.press.setting range [MPa] [min]
- 0.05 MPa
- Diff.press.setting range [psi] [max]
- 58 psi
- Diff.press.setting range [psi] [min]
- 7 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 25 bar
- Max. test pressure [psig]
- 362 psig
- Max. Working Pressure [bar]
- 22 bar
- Max. Working Pressure [psig]
- 319 psig
- Operat. range LP side [bar] Pe [max]
- 18 bar
- Operat. range LP side [bar] Pe [min]
- -1 bar
- Operat. range LP side [psig]Pe [max]
- 261 psig
- Operat. range LP side [psig]Pe [min]
- -15 psig
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] Pe [max]
- 18 bar
- Pressure range [bar] Pe [min]
- -1 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R11
- Relay release time [s]
- 0 s
- Reset function
- Manual Max
- UL approved refrigerants
- R11
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 8434-1
- Pressure Rating
- 22 bar
- Temperature Range
- -40 to +70 degC
- IP Rating
- IP54
- Classification / Approval
- CE, EAC, CCC, CMIM, KR, RINA, RMRS
- HS Code
- 9032.20
Compatibility & Fitment
G 3/8 male (ISO 228-1). Manual maximum reset locks out on high differential. Confirm range against application.
