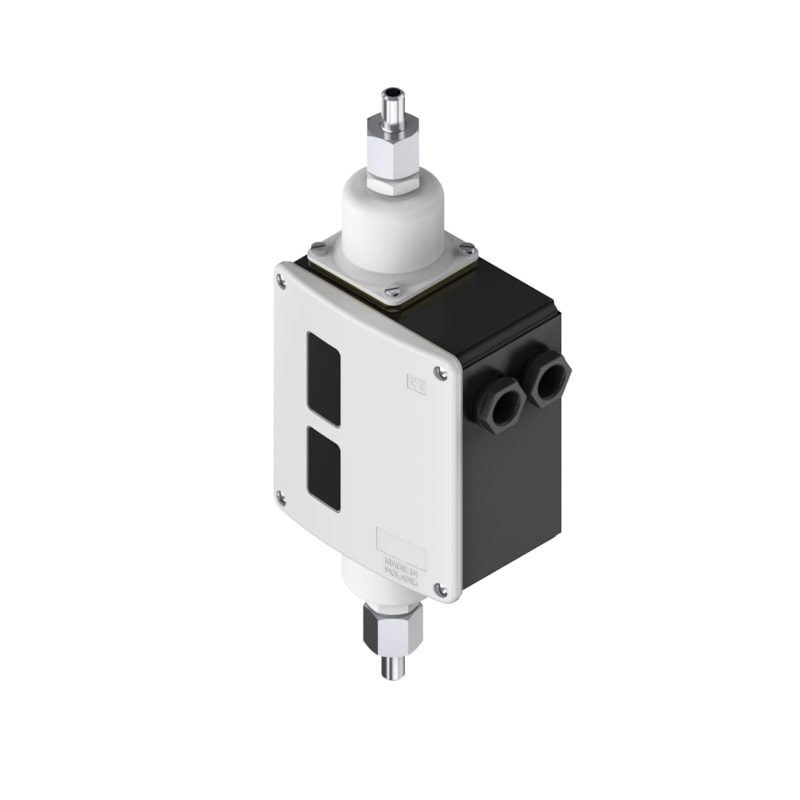

Danfoss RT262AE ATEX Differential Pressure Switch 0.1 to 1.5 bar SPDT Auto Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT262AE ATEX-rated mechanical differential pressure switch (Cat. 2, Zone 1) with bellows sensing element, SPDT neutral-zone gold contact and auto reset. Differential setting range 0.1 to 1.5 bar; G 3/8 male pressure connection (ISO 228-1); enclosure IP66. Danfoss code number 017D003066.
Technical Specifications
- Brand
- Danfoss
- Model
- RT262AE differential pressure switch
- Code number
- 017D003066
- Differential pressure range
- 0.1 to 1.5 bar (0.01 to 0.15 MPa; 1.5 to 22 psi)
- Maximum working pressure
- 11 bar
- Contact function
- SPDT (neutral zone), gold contacts
- Reset
- Auto
- Contact differential
- 0.1 bar
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 male (ISO 228-1)
- Enclosure
- IP66
- Ambient temperature range
- -40 to +70 degC
- Hazardous area
- ATEX Cat. 2, Zone 1
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- ATEX Cat.2 Zone 1, CE, EAC, CCC, RMRS
- EAN
- 5702428131476
- Net weight
- 1.229 Kilogram
- Type
- RT262AE
- Product group
- Switches and thermostats
- Alarm Signal
- Falling
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- ATEX - Cat. 2 - Zone 1
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact differential [bar]
- 0.1 bar
- Contact rating
- Ci=0.5 nF
- Diff.press.setting range [bar] [max]
- 1.5 bar
- Diff.press.setting range [bar] [min]
- 0.1 bar
- Diff.press.setting range [MPa] [max]
- 0.15 MPa
- Diff.press.setting range [MPa] [min]
- 0.01 MPa
- Diff.press.setting range [psi] [max]
- 22 psi
- Diff.press.setting range [psi] [min]
- 1.5 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Pollution degree: 3
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Out of scope
- EX Sales text
- -20C<ta<+65C
- Factory setting [bar]
- 0.12 bar
- Factory setting [MPa]
- 0.012 MPa
- Factory setting [psig]
- 2 psig
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 13 bar
- Max. test pressure [psig]
- 188 psig
- Max. Working Pressure [bar]
- 11 bar
- Max. Working Pressure [psig]
- 160 psig
- Operat. range LP side [bar] Pe [max]
- 9 bar
- Operat. range LP side [bar] Pe [min]
- -1 bar
- Operat. range LP side [psig]Pe [max]
- 131 psig
- Operat. range LP side [psig]Pe [min]
- -15 psig
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] Pe [max]
- 9 bar
- Pressure range [bar] Pe [min]
- -1 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Relay release time [s]
- 0 s
- Reset function
- Auto
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 8434-1
- Pressure Rating
- 11 bar
- Temperature Range
- -40 to +70 degC
- IP Rating
- IP66
- Classification / Approval
- ATEX Cat.2 Zone 1, CE, EAC, CCC, RMRS
- HS Code
- 9032.20
Compatibility & Fitment
ATEX Cat. 2 Zone 1 hazardous-area rated, gold neutral-zone contacts. G 3/8 male (ISO 228-1). Confirm zone classification against application.
