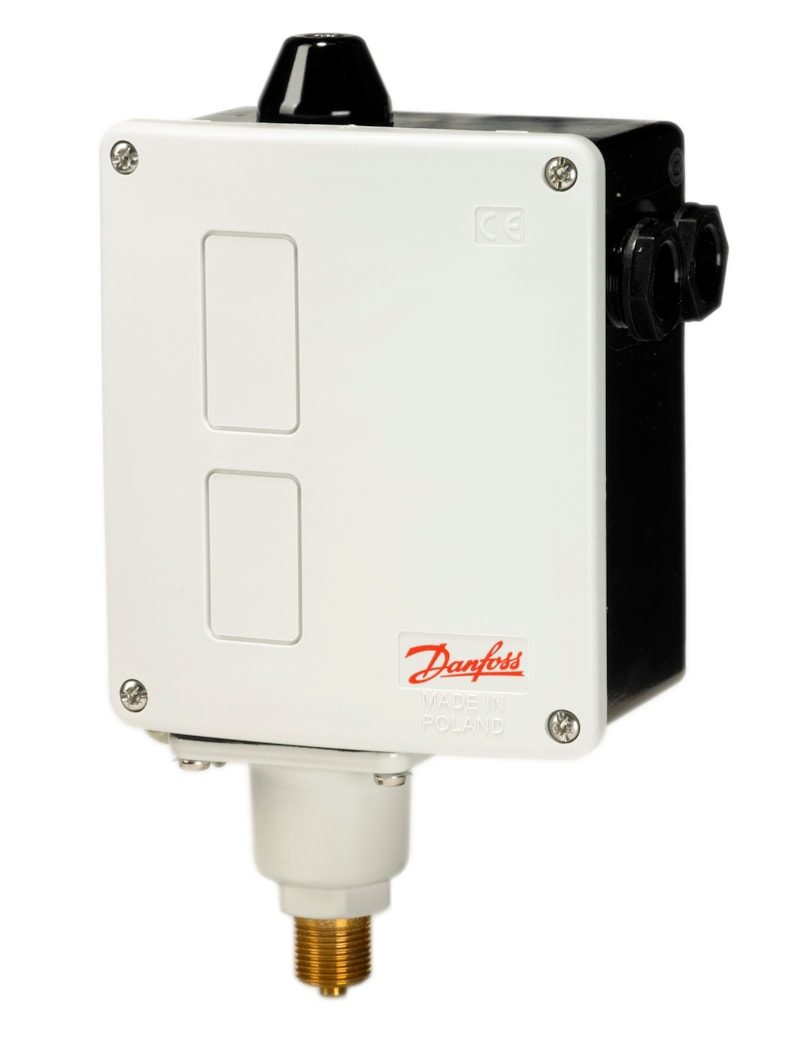

Danfoss RT117 Pressure Switch 10 to 30 bar SPDT Auto Reset (017-529666)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT117 mechanical pressure switch with bellows sensing element, SPDT contact and auto reset. Regulating range 10 to 30 bar; G 3/8 male (ISO 228-1) pressure connection; maximum working pressure 42 bar; enclosure IP66. For industrial and marine refrigeration and HVAC applications. Danfoss code number 017-529666; EAN 5702423121359.
Technical Specifications
- Brand
- Danfoss
- Model
- RT117 pressure switch
- Code number
- 017-529666
- Regulating range (Pe)
- 10 to 30 bar
- Maximum working pressure
- 42 bar
- Contact function
- SPDT
- Reset
- Auto
- Differential
- 1 to 4 bar (adjustable)
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 male (ISO 228-1)
- Enclosure
- IP66
- Ambient temperature range
- -50 to +70 degC
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Standards
- EN 60947-4, EN 60947-5, DIN 40430, ISO 228-1
- Approvals
- BV, CCC, CE, CMIM, DNV, EAC, GL, KR, LR, LVD, NKK, RINA, RMRS, RoHS, TYSK
- EAN
- 5702423121359
- Part number
- 017-529666
- Net weight
- 0.9 Kilogram
- Type
- RT117
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Differential [bar] [max]
- 4 bar
- Differential [bar] [min]
- 1 bar
- Differential [psi] [max]
- 58 psi
- Differential [psi] [min]
- 14.5 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 47 bar
- Max. test pressure [psig]
- 682 psig
- Max. Working Pressure [bar]
- 42 bar
- Max. Working Pressure [psig]
- 610 psig
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R11
- Regulation range [bar] Pe [max]
- 30 bar
- Regulation range [bar] Pe [min]
- 10 bar
- Regulation range [psig] Pe [max]
- 435.1 psig
- Regulation range [psig] Pe [min]
- 145 psig
- Reset function
- Auto
- UL approved refrigerants
- R11
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 42 bar
- Temperature Range
- -50 to +70 degC
- IP Rating
- IP66
- Classification / Approval
- BV, CCC, CE, CMIM, DNV, EAC, GL, KR, LR, LVD, NKK, RINA, RMRS, RoHS, TYSK
- HS Code
- 9032.20
Compatibility & Fitment
G 3/8 male (ISO 228-1) pressure connection. Confirm range and reset type against application.
Product Documentation
More from Danfoss
Danfoss
Danfoss RT262A Differential Pressure Switch 0.1 to 1.5 bar SPDT+SPST Auto Reset
017D001366
Danfoss
Danfoss RT260A Differential Pressure Switch 0.5 to 4 bar SPDT Auto Reset M12
017D001466
Danfoss
Danfoss RT260A Differential Pressure Switch 0.5 to 6 bar SPDT Auto Reset M12
017D001566
Danfoss
Danfoss RT260A Differential Pressure Switch 1.5 to 11 bar SPDT Auto Reset M12
017D001666
Danfoss
Danfoss RT260A Differential Pressure Switch 0.5 to 4 bar SPDT Manual Max Reset G3/8
017D002266
Danfoss

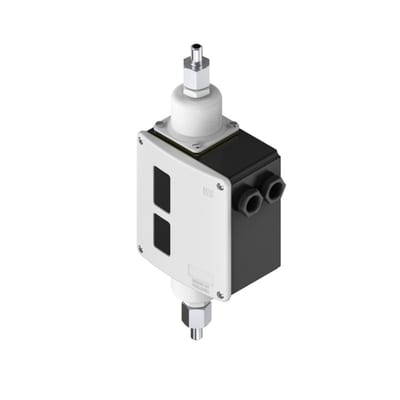

Danfoss RT262AE ATEX Differential Pressure Switch 0.1 to 1.5 bar SPDT Auto Reset
017D003066
Danfoss

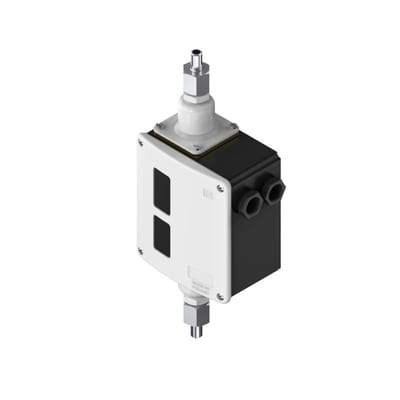

Danfoss RT260AE ATEX Differential Pressure Switch 0.5 to 4 bar SPDT Auto Reset
017D003666
Danfoss

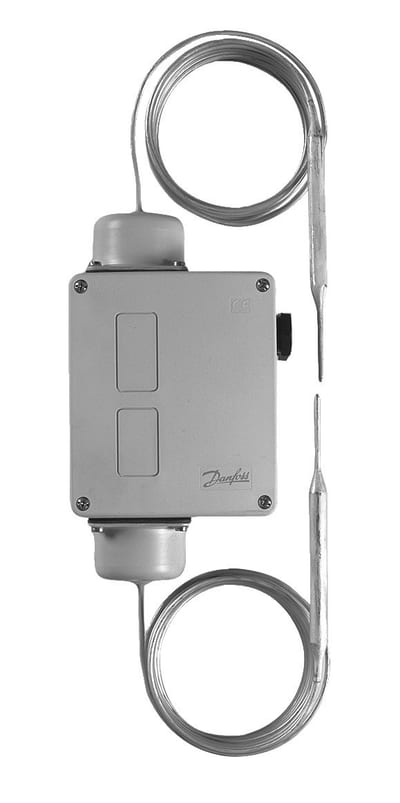

Danfoss RT270 Thermostat -30 to 40 degC SPDT Auto Reset 5 m Capillary
