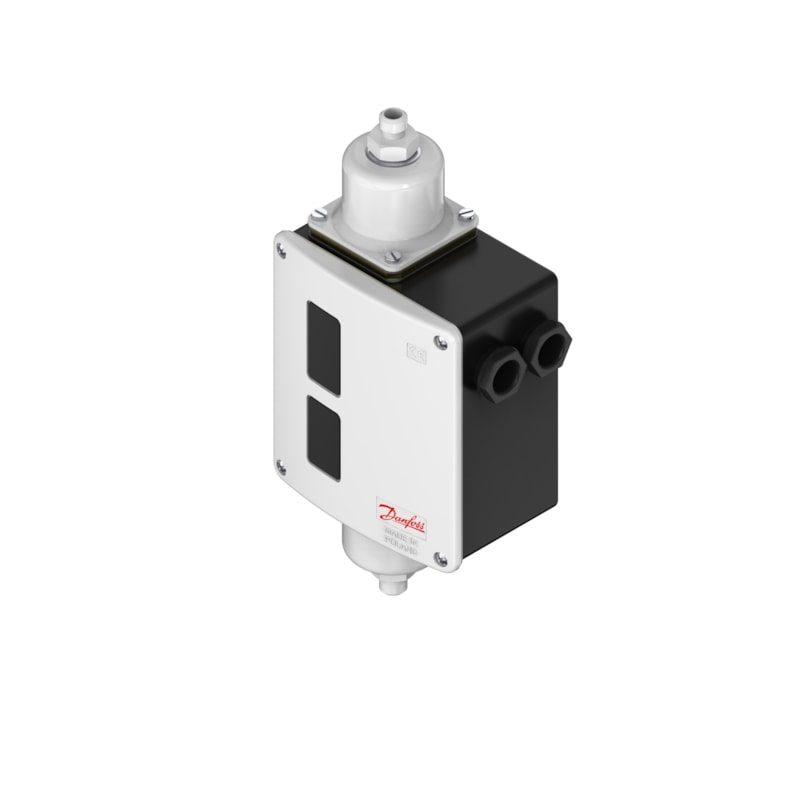

Danfoss RT262A Differential Pressure Switch 0.1 to 1.5 bar SPDT+SPST Auto Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT262A mechanical differential pressure switch with bellows sensing element, SPDT+SPST contact and auto reset. Monitors the pressure difference across two connections; differential setting range 0.1 to 1.5 bar; M 12 x 1.5 cutting-ring pressure connection (ISO 8434-1); enclosure IP66. Danfoss code number 017D001366.
Technical Specifications
- Brand
- Danfoss
- Model
- RT262A differential pressure switch
- Code number
- 017D001366
- Differential pressure range
- 0.1 to 1.5 bar (0.01 to 0.15 MPa; 1.5 to 22 psi)
- Maximum working pressure
- 11 bar
- Contact function
- SPDT+SPST
- Reset
- Auto
- Contact differential
- 0.1 bar
- Pressure sensing element
- bellows
- Pressure connection
- M 12 x 1.5 cutting ring (ISO 8434-1)
- Enclosure
- IP66
- Ambient temperature range
- -40 to +70 degC
- Cable entry
- screwed cable entry
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CE, EAC, CCC, CMIM, KR, RINA, RMRS
- EAN
- 5702428042895
- Net weight
- 0.962 Kilogram
- Type
- RT262A
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact differential [bar]
- 0.1 bar
- Diff.press.setting range [bar] [max]
- 1.5 bar
- Diff.press.setting range [bar] [min]
- 0.1 bar
- Diff.press.setting range [MPa] [max]
- 0.15 MPa
- Diff.press.setting range [MPa] [min]
- 0.01 MPa
- Diff.press.setting range [psi] [max]
- 22 psi
- Diff.press.setting range [psi] [min]
- 1.5 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 13 bar
- Max. test pressure [psig]
- 188 psig
- Max. Working Pressure [bar]
- 11 bar
- Max. Working Pressure [psig]
- 160 psig
- Operat. range LP side [bar] Pe [max]
- 9 bar
- Operat. range LP side [bar] Pe [min]
- -1 bar
- Operat. range LP side [psig]Pe [max]
- 131 psig
- Operat. range LP side [psig]Pe [min]
- -15 psig
- Pressure connection notes
- Cutting ring 6mm tube
- Pressure connection size
- 12 x 1.5
- Pressure connection standard
- ISO 8434-1
- Pressure connection type
- M
- Pressure Male/Female
- Male
- Pressure range [bar] Pe [max]
- 9 bar
- Pressure range [bar] Pe [min]
- -1 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R11
- Relay release time [s]
- 0 s
- Reset function
- Auto
- UL approved refrigerants
- R11
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 8434-1
- Pressure Rating
- 11 bar
- Temperature Range
- -40 to +70 degC
- IP Rating
- IP66
- Classification / Approval
- CE, EAC, CCC, CMIM, KR, RINA, RMRS
- HS Code
- 9032.20
Compatibility & Fitment
M 12 x 1.5 cutting-ring (ISO 8434-1) pressure connections. Confirm differential range and reset type against application.
