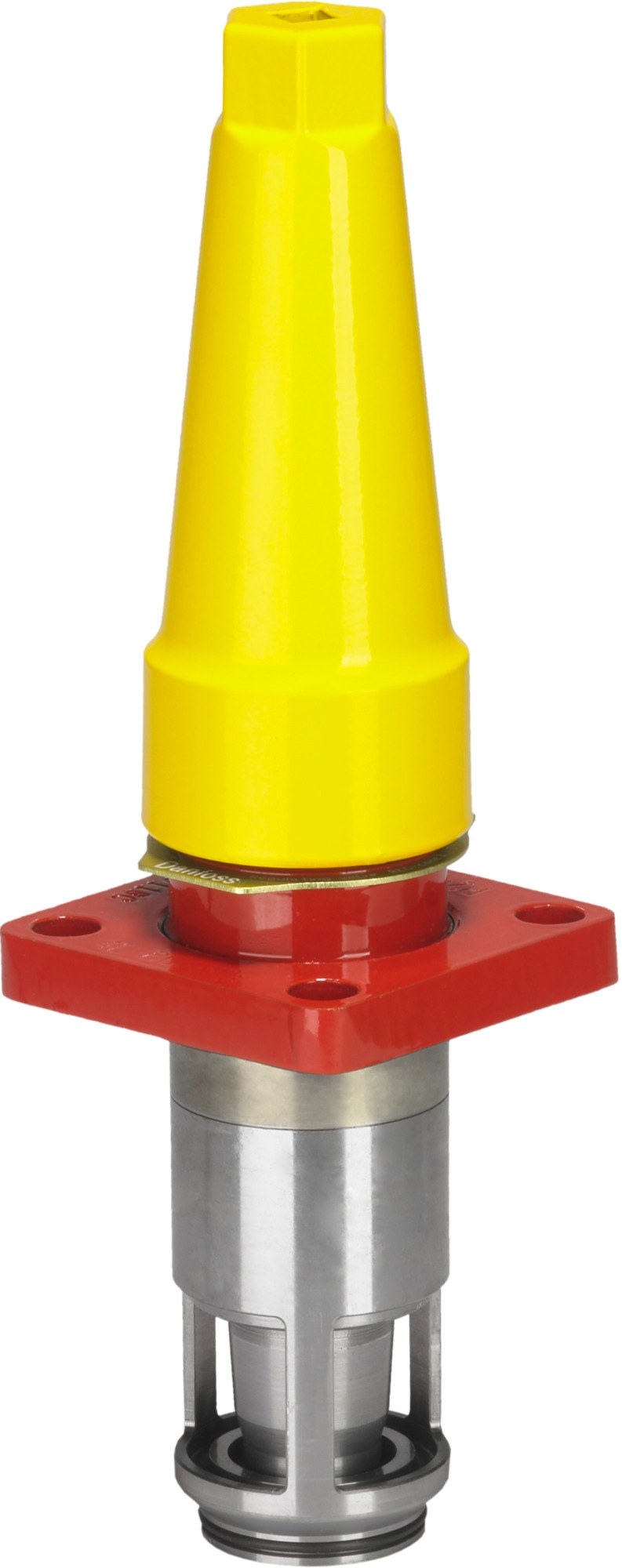

Danfoss REG-SB 10 function module (complete top part), fits REG-SB 10 / SVL 10, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss REG-SB 10 function module (complete top part / bonnet assembly), code 148B5113. Service part comprising the top part, one gasket and four bolts; it converts an SVL 10 multifunction valve body into a complete REG-SB 10 hand-operated regulating valve, or replaces a worn bonnet on an existing REG-SB 10. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Designed for R134a, R404A, R410A, R507A, R717 (ammonia), R744 (CO2) and other HCFC/HFC/HFO refrigerants.
Technical Specifications
- Type
- Danfoss REG-SB 10 function module (complete top part)
- Code number
- 148B5113
- Series
- REG-SB / SVL Flexline
- Type designation
- Top Complete
- Parts included
- 1 gasket; top part; 4 bolts
- Fits
- SVL 10 multifunction valve body / REG-SB 10
- Nominal size
- 10 mm (3/8 in)
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Weight
- net 0.25 kg, gross 0.43 kg
- EAN
- 5702428485920
- Brand
- SVL Flexline
- Product group
- Shut-off and regulating valves
- Outlet connection size
- 10.0 mm
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 150 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R152a; R170; R22; R227ea; R236fa; R245fa; R290; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R452C; R454A; R454B; R454C; R455A; R463A; R502; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a; R717; R744
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Flow area
- 0.024 in², 16.0 mm²
- Neck
- Standard
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Size / Series
- 10 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Service part. The REG-SB 10 function module mounts onto an SVL 10 multifunction valve body (butt weld or solder) to build a complete REG-SB 10 regulating valve. Confirm series (REG-SB cone characteristic) and that the valve body is the 10 mm SVL Flexline platform before ordering.
Product Documentation
