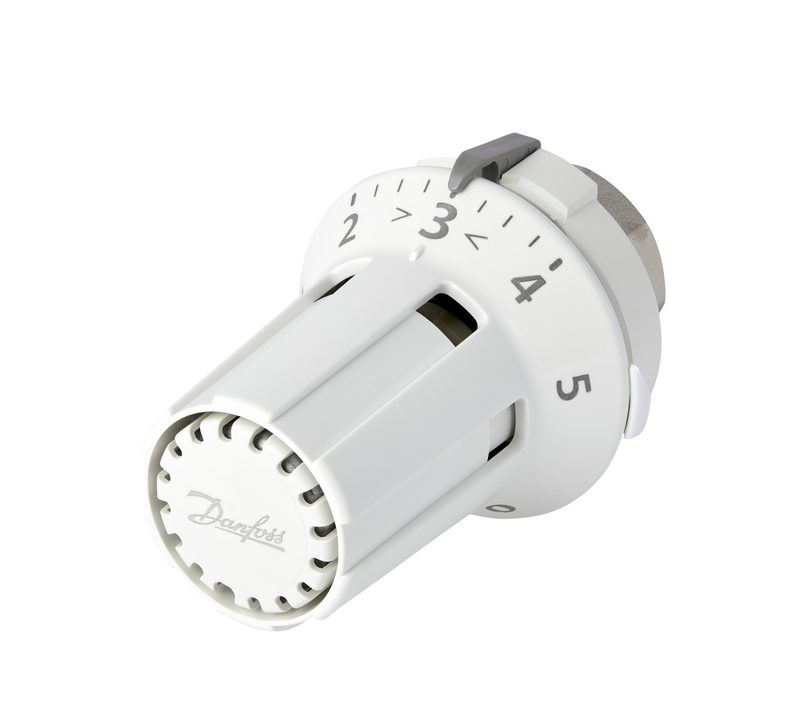

Danfoss RAW-K 5135 thermostatic radiator sensor — liquid-charged, built-in sensor, M30X1.5 connection

Danfoss RAW-K 5135 — self-acting thermostatic radiator sensor (control head), OEM order code 013G5135. The RAW-K 5135 is a self-acting thermostatic operator (control head) for Danfoss radiator valve bodies. It modulates the valve in proportion to room air temperature to hold the set room temperature without any external power or wiring; the liquid charge gives stable, hysteresis-controlled operation and the sensing element is built into the setpoint dial, sensing the air immediately around the valve. Setpoint range 8 °C - 28 °C. Features: frost-protection setting, setpoint limiting and locking, positive shut-off (closes the valve at the low end of the scale). Valve connection M30x1.5. Colour White RAL 9016. Housing plastic. Genuine Danfoss part; specification quoted verbatim from store.danfoss.com (code 013G5135). OEM P/N 013G5135, EAN 5702420091785. HS 9032.10.

Brand

Danfoss

Part number

013G5135

Type

RAW-K 5135

Product group

Radiator Sensors

Function

Self-acting thermostatic radiator sensor / control head

Charge medium

Liquid

Sensor type

Built-in sensor

Setpoint range

8 °C - 28 °C

Frost protection

yes (setting below the scale)

Setpoint limiting / locking

available (concealable stops)

Positive shut-off

yes

Valve connection

M30x1.5

Sensor-to-head connection

Metal nut

Colour

White RAL 9016

Store description

For non Danfoss valve, positive shut-off feature

Operation

self-acting, no power supply required

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.134 Kilogram

Gross weight

0.148 Kilogram

EAN

5702420091785

HS code

9032.10 (thermostats)

Material

Housing plastic (ABS)

Temperature Range

8 °C - 28 °C setpoint (with frost setting)

HS Code

9032.10
