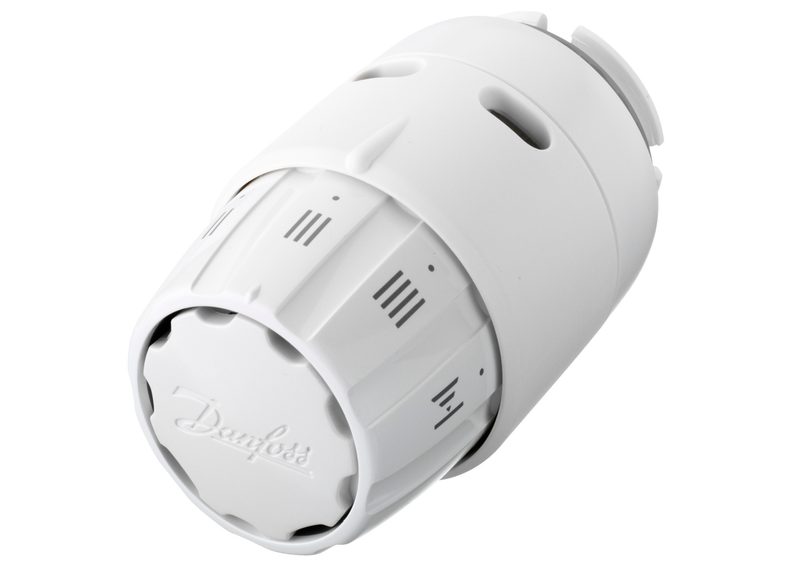

Danfoss RAS-C2 6040 thermostatic radiator sensor — liquid-charged, built-in sensor, Danfoss RA / RA-N fit
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RAS-C2 6040 — self-acting thermostatic radiator sensor (control head), OEM order code 013G6040. The RAS-C2 6040 is a self-acting thermostatic operator (control head) for Danfoss radiator valve bodies. It modulates the valve in proportion to room air temperature to hold the set room temperature without any external power or wiring; the liquid charge gives stable, hysteresis-controlled operation and the sensing element is built into the setpoint dial, sensing the air immediately around the valve. Setpoint range 8 °C - 28 °C. Features: frost-protection setting, positive shut-off (closes the valve at the low end of the scale). Valve connection RA. Colour White RAL 9016. Housing plastic. Genuine Danfoss part; specification quoted verbatim from store.danfoss.com (code 013G6040). OEM P/N 013G6040, EAN 5702420051000. HS 9032.10.
Technical Specifications
- Brand
- Danfoss
- Part number
- 013G6040
- Type
- RAS-C2 6040
- Product group
- Radiator Sensors
- Function
- Self-acting thermostatic radiator sensor / control head
- Charge medium
- Liquid
- Sensor type
- Built-in sensor
- Setpoint range
- 8 °C - 28 °C
- Frost protection
- yes (setting below the scale)
- Positive shut-off
- yes
- Valve connection
- RA
- Sensor-to-head connection
- RA nut
- Colour
- White RAL 9016
- Store description
- Grey socket, positive shut-off feature.
- Operation
- self-acting, no power supply required
- Net weight
- 0.133 Kilogram
- Gross weight
- 0.15 Kilogram
- EAN
- 5702420051000
- HS code
- 9032.10 (thermostats)
- CE mark
- No
- China RoHS compliance
- Out of scope
- Connection type sensor
- RA nut
- Connection type to valve
- RA
- Contents of set
- Sensor
- Description
- Grey socket, positive shut-off feature.
- Sensor design
- RAS-C2
- Sensor media
- Liquid
- Sensor setting temperature [°C] [Max]
- 28 °C
- Sensor setting temperature [°C] [Min]
- 8 °C
- Sensor version
- RAS-C2 6040
- Shut-off function
- Yes
- Temperature limitation
- No
- UL mark
- No
Standards & Compliance
- Material
- Housing plastic (ABS)
- Temperature Range
- 8 °C - 28 °C setpoint (with frost setting)
- HS Code
- 9032.10
Compatibility & Fitment
Thermostatic sensor / operator head only — the matching Danfoss RA radiator valve body is ordered separately. Fits Danfoss RA, RA-N and RA 2000 radiator valve bodies. Suitable where the valve is exposed to representative room air. Verify the valve connection type (RA) before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss RAX 6170 thermostatic radiator sensor — liquid-charged, built-in sensor, Danfoss RA / RA-N fit
013G6170
Danfoss
Danfoss RAX-K 6180 thermostatic radiator sensor — liquid-charged, built-in sensor, M30X1.5 connection
013G6180
Danfoss
Danfoss RTX (limiter) return-temperature limiter — wax-charged, self-acting, for Danfoss RTX design-radiator valves
013G6190
Danfoss
Danfoss RTW 7100 thermostatic radiator sensor — liquid-charged, built-in sensor, Danfoss RA / RA-N fit
013G7100
Danfoss
Danfoss RTW 7110 thermostatic radiator sensor — liquid-charged, built-in sensor, Danfoss RA / RA-N fit
013G7110
Danfoss
Danfoss RA 8240 thermostatic radiator sensor — gas-charged, built-in sensor, Danfoss RA / RA-N fit
013G8240
Danfoss

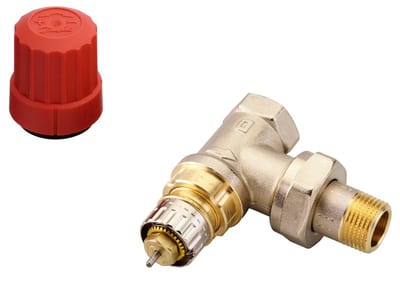

Danfoss RA-N DN 10 angle radiator valve, normal flow with presetting, dimension standard D
013G0031
Danfoss

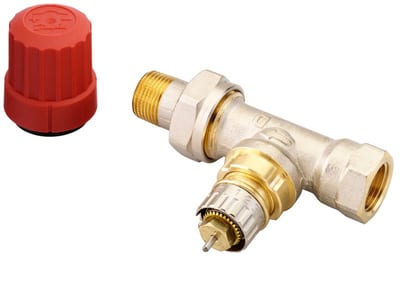

Danfoss RA-N DN 10 straight radiator valve, normal flow with presetting, dimension standard D
