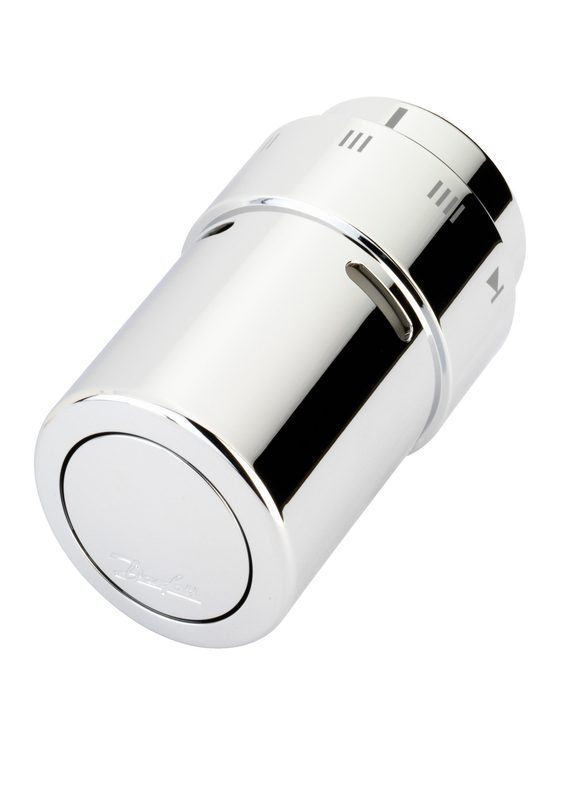

Danfoss RAX 6170 thermostatic radiator sensor — liquid-charged, built-in sensor, Danfoss RA / RA-N fit

Danfoss RAX 6170 — self-acting thermostatic radiator sensor (control head), OEM order code 013G6170. The RAX 6170 is a self-acting thermostatic operator (control head) for Danfoss radiator valve bodies. It modulates the valve in proportion to room air temperature to hold the set room temperature without any external power or wiring; the liquid charge gives stable, hysteresis-controlled operation and the sensing element is built into the setpoint dial, sensing the air immediately around the valve. Setpoint range 8 °C - 28 °C. Features: frost-protection setting, positive shut-off (closes the valve at the low end of the scale). Valve connection RA. Colour Chrome. Housing plastic. Genuine Danfoss part; specification quoted verbatim from store.danfoss.com (code 013G6170). OEM P/N 013G6170, EAN 5702420057323. HS 9032.10.

Brand

Danfoss

Part number

013G6170

Type

RAX 6170

Product group

Products for design radiators

Function

Self-acting thermostatic radiator sensor / control head

Charge medium

Liquid

Sensor type

Built-in sensor

Setpoint range

8 °C - 28 °C

Frost protection

yes (setting below the scale)

Positive shut-off

yes

Response time

24 min

Valve connection

RA

Sensor-to-head connection

Allen screw

Colour

Chrome

Store description

For use when design radiators are the primary heating source

Operation

self-acting, no power supply required

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.122 Kilogram

Gross weight

0.134 Kilogram

EAN

5702420057323

HS code

9032.10 (thermostats)

Material

Housing plastic (ABS)

Temperature Range

8 °C - 28 °C setpoint (with frost setting)

HS Code

9032.10
