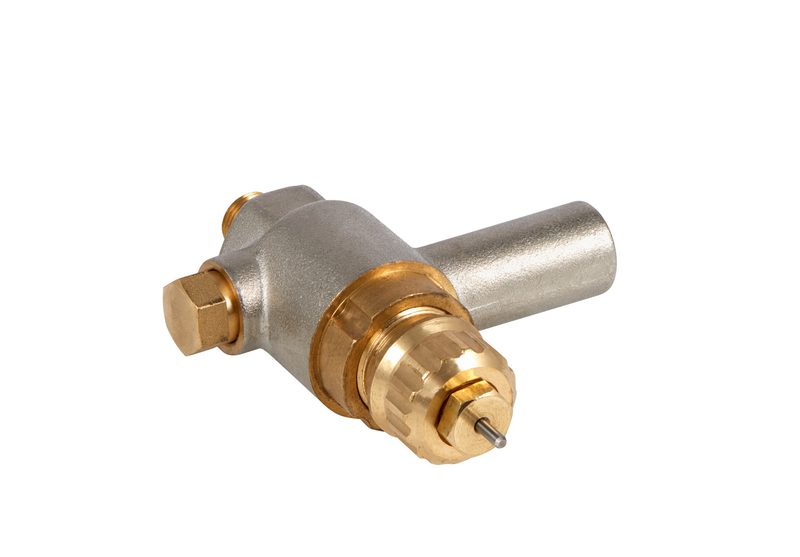

Danfoss RA2000 1/8 angle one-pipe steam radiator valve, MNPT

Danfoss RA2000 — self-contained one-pipe low-pressure steam radiator valve, OEM order code 013G0140. The RA2000 is a self-contained thermostatic radiator valve for one-pipe low-pressure steam systems: the 1/8 MNPT angle body carries an integral thermostatic operator that throttles steam admission to hold room temperature, with no external power or wiring. Nickel-plated brass body, soldering/MNPT connection. (RA2000 1/8, angle, dimension standard Other permitted.) Nominal size 1/8, connection 1/8 MNPT, max. working pressure 1 bar, max. differential pressure 1 bar, flow/steam temperature up to 120 °C. Finish Nickel plated; tailpiece MNPT. Application: 1-pipe system. Net weight 0.24 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G0140). OEM P/N 013G0140, EAN 5702425115516. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Brand

Danfoss

Part number

013G0140

Type

RA2000

Product group

Radiator Valves

Description

RA2000 1-pipe low pressure steam valve, 1/8 MNPT connection

Valve type

Steam valve

Design

Angle

Dimension standard

Other permitted

Nominal size

1/8

Connection size (inlet)

1/8

Connection size (outlet)

1/8

Connection types

Soldering

Tailpiece type

MNPT

Presetting

no

Application

1-pipe system

Flow temperature (max)

120 °C

Working pressure (max)

1 bar

Differential pressure (max)

1 bar

Finish

Nickel plated

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.24 Kilogram

Gross weight

0.24 Kilogram

EAN

5702425115516

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass, Nickel plated

Pressure Rating

1 bar max working

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
