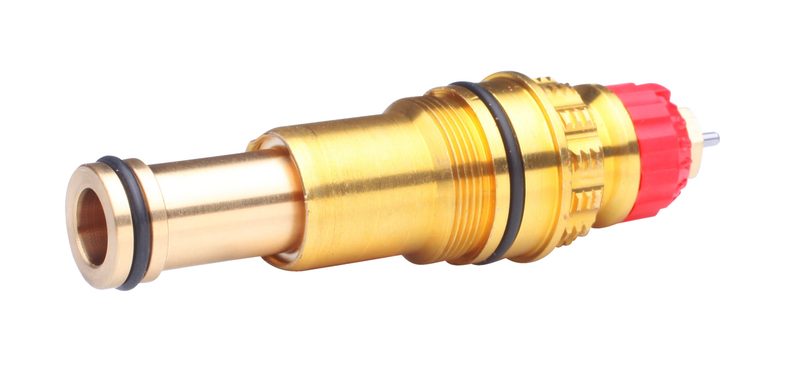

Danfoss RA integrated valve — built-in valve (BIV) set, M22 x 1, presetting yes

Danfoss RA integrated valve — built-in valve (BIV) set for built-in-valve (BIV) radiators, OEM order code 013G0220. This is a Danfoss RA built-in-valve (BIV) valve set for radiators supplied with an integral valve housing. It accepts an RA-series thermostatic sensor on the M22 x 1 connection. Presettable to the design flow of the radiator. For retrofitting/servicing BIV radiators produced in the 1985–93 era and later. Contents of set: Valve. Presetting: yes. Flow temperature up to 120 °C.Net weight 0.118 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G0220). OEM P/N 013G0220, EAN 5702420010366.

Brand

Danfoss

Part number

013G0220

Type

Integrated valves

Product group

Radiator Valves

Description

BIV M22x1 (1985-93 radiator)

Contents of set

Valve

Presetting

yes

Flow temperature (max)

120 °C

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.118 Kilogram

Gross weight

0.12 Kilogram

EAN

5702420010366

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

CE mark

No

China RoHS compliance

Out of scope

Composition

Valve, protective cap

Connection to radiator

M 22 x 1

Connection type to sensor

RA

Flow temperature [°C] [Max]

120 °C

For radiator manufacturers

CICH

UL mark

No

Usage

For bottom supplied radiators

Material

Brass

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
