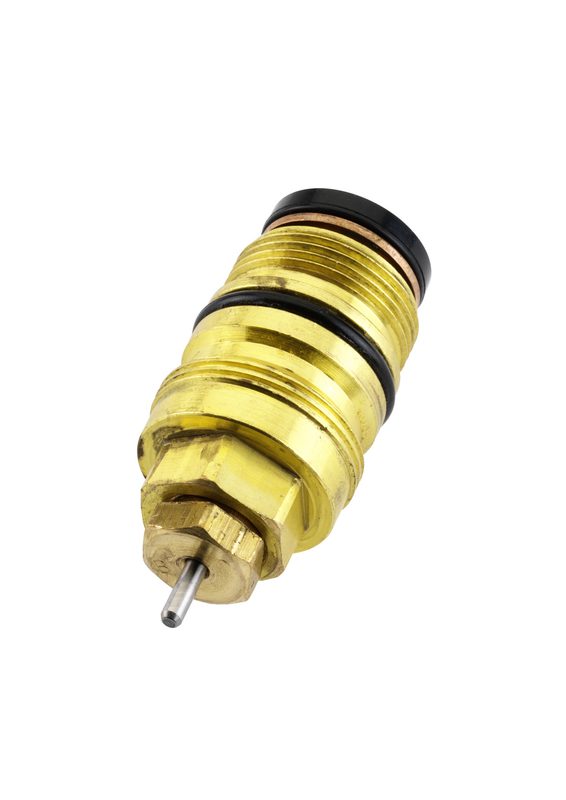

Danfoss RA integrated valve — valve insert, M18 x 1, presetting

Danfoss RA integrated valve — valve insert for built-in-valve (BIV) radiators, OEM order code 013G0245. This is a Danfoss RA built-in-valve (BIV) valve insert — the internal seat/spindle assembly that screws into the radiator's integral valve housing. It accepts an RA-series thermostatic sensor on the M18 x 1 connection. Non-presetting. For retrofitting/servicing BIV radiators produced in the 1985–93 era and later. Contents of set: Valve insert. Presetting: no. Flow temperature up to 120 °C.Net weight 0.048 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G0245). OEM P/N 013G0245, EAN 5702420014838.

Brand

Danfoss

Part number

013G0245

Type

Integrated valves

Product group

Radiator Valves

Description

BIV insert (seat in radiator)

Contents of set

Valve insert

Presetting

no

Flow temperature (max)

120 °C

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.048 Kilogram

Gross weight

0.048 Kilogram

EAN

5702420014838

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

CE mark

No

China RoHS compliance

Out of scope

Composition

Valve insert

Connection to radiator

M 18 x 1

Connection type to sensor

RA

Flow temperature [°C] [Max]

120 °C

For radiator manufacturers

Brötje

UL mark

No

Usage

For bottom supplied radiators

Material

Brass

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
