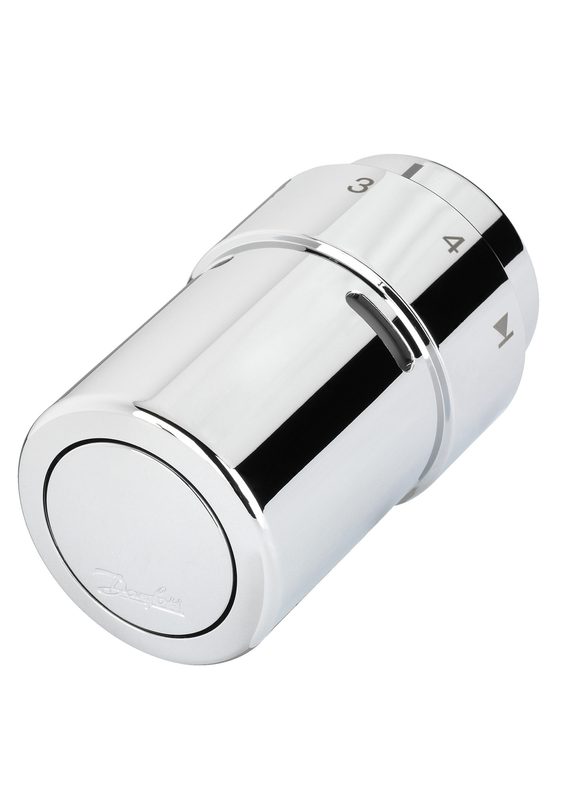

Danfoss RTX (limiter) return-temperature limiter — wax-charged, self-acting, for Danfoss RTX design-radiator valves
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RTX (limiter) — self-acting return-temperature limiter for design radiators, OEM order code 013G6190. The RTX (limiter) is a self-acting return-temperature limiter that throttles a design (towel / decorative) radiator when its return-water temperature exceeds the set value, so the radiator draws only the intended share of heat. It is wax-charged and needs no power or wiring; the sensing element is built into the head. Setpoint range 10 °C - 50 °C. Features: positive shut-off (closes the valve at the low end of the scale). Valve connection RTX. Genuine Danfoss part; specification quoted verbatim from store.danfoss.com (code 013G6190). OEM P/N 013G6190, EAN 5702420066035. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Brand
- Danfoss
- Part number
- 013G6190
- Type
- RTX (limiter)
- Product group
- Products for design radiators
- Function
- Self-acting return-temperature limiter
- Charge medium
- Wax
- Sensor type
- Built-in sensor
- Setpoint range
- 10 °C - 50 °C
- Frost protection
- no
- Positive shut-off
- yes
- Valve connection
- RTX
- Colour
- Chrome
- Store description
- For use when design radiators are the secondary heating source
- Operation
- self-acting, no power supply required
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 142 Gram
- Gross weight
- 142 Gram
- EAN
- 5702420066035
- HS code
- 9032.10 (thermostats)
- CE mark
- No
- China RoHS compliance
- Out of scope
- Connection type to valve
- RTX
- Description
- For use when design radiators are the secondary heating source
- Design
- Return temperature limiter
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Sensor media
- Wax
- Sensor setting temperature [°C] [Max]
- 50 °C
- Sensor setting temperature [°C] [Min]
- 10 °C
- Shut-off function
- Yes
- UL mark
- No
Standards & Compliance
- Material
- Housing plastic (ABS)
- Temperature Range
- 10 °C - 50 °C setpoint
- HS Code
- 9032.10
Compatibility & Fitment
Return-temperature limiter head — the matching Danfoss RTX design-radiator valve body is ordered separately. Fits Danfoss RTX (design-radiator) valve bodies. Verify the valve connection (RTX) before ordering.
