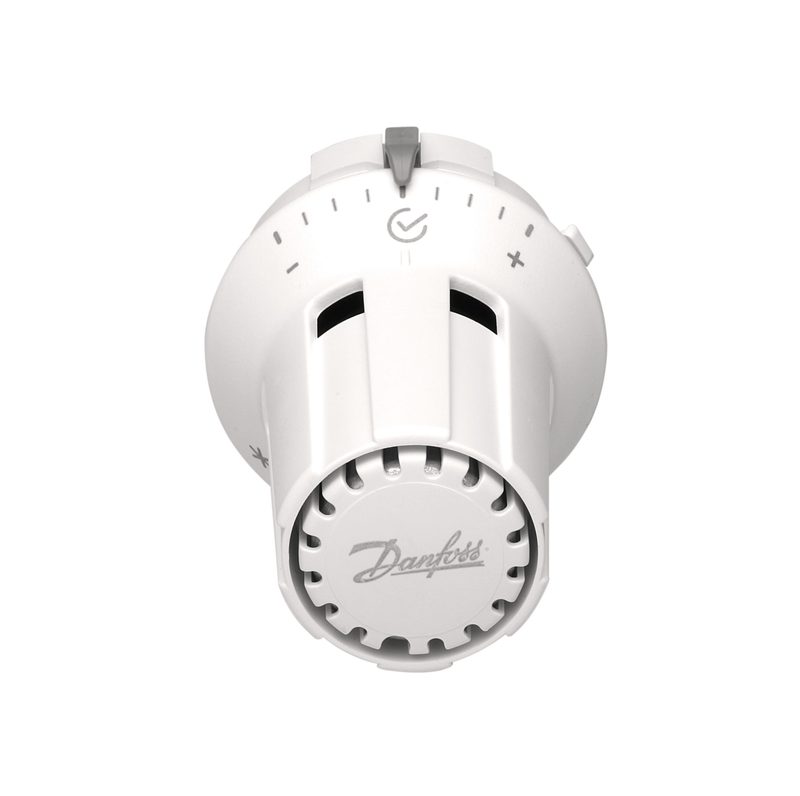

Danfoss React +/- thermostatic radiator sensor — liquid-charged, built-in sensor, M30X1.5 connection

Danfoss React +/- — self-acting thermostatic radiator sensor (control head), OEM order code 013G5145. The React +/- is a self-acting thermostatic operator (control head) for Danfoss radiator valve bodies. It modulates the valve in proportion to room air temperature to hold the set room temperature without any external power or wiring; the liquid charge gives stable, hysteresis-controlled operation and the sensing element is built into the setpoint dial, sensing the air immediately around the valve. Setpoint range 8 °C - 28 °C. Features: frost-protection setting, setpoint limiting and locking. Valve connection M30x1.5. Colour White RAL 9016. The Danfoss React +/- fits M30 x 1.5 (non-Danfoss) valve bodies. Housing plastic. Genuine Danfoss part; specification quoted verbatim from store.danfoss.com (code 013G5145). OEM P/N 013G5145, EAN 5715162434543. HS 9032.10.

Brand

Danfoss

Part number

013G5145

Type

React +/-

Product group

Radiator Sensors

Function

Self-acting thermostatic radiator sensor / control head

Charge medium

Liquid

Sensor type

Built-in sensor

Setpoint range

8 °C - 28 °C

Frost protection

yes (setting below the scale)

Setpoint limiting / locking

available (concealable stops)

Positive shut-off

no

Response time

15 min

Valve connection

M30x1.5

Sensor-to-head connection

Metal nut

Colour

White RAL 9016

Store description

For non Danfoss valves; temperature limitation feature

Operation

self-acting, no power supply required

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.133 Kilogram

Gross weight

0.152 Kilogram

EAN

5715162434543

HS code

9032.10 (thermostats)

Material

Housing plastic (ABS)

Temperature Range

8 °C - 28 °C setpoint (with frost setting)

HS Code

9032.10
