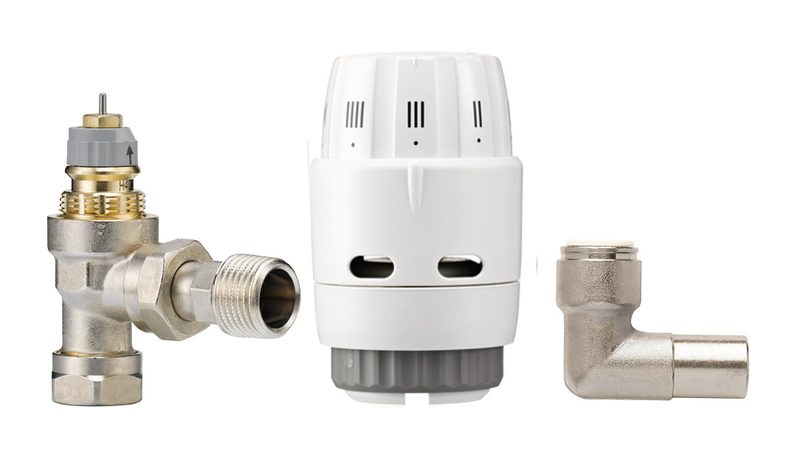

Danfoss RAS-C2 thermostatic radiator valve set — RAS-C2 sensor + 10 mm bidir angle valve (013G6060)

Danfoss RAS-C2 thermostatic radiator valve combi set, OEM order code 013G6060. The set combines a RAS-C2 self-acting thermostatic sensor (liquid-charged, built-in room-air element, setpoint 8 °C … 28 °C °C, frost setting) with a 10 mm bidir angle radiator valve — Includes RAS-C2 sensor, RA-FS bi-directional angle valve and elbow. The sensor modulates the valve in proportion to room temperature with no external power or wiring; the bi-directional valve body allows flow in either direction so it fits both feed and return radiator connections. Colour White RAL 9016. Sensor response time 22 min. Set contents: 2-elements. Genuine Danfoss part; data quoted verbatim from store.danfoss.com (code 013G6060). OEM P/N 013G6060, EAN 5013567411436. HS 8481.80.

Brand

Danfoss

Part number

013G6060

Gross weight

0.409 Kilogram

Net weight

0.382 Kilogram

Type

RAS-C2 TRV Pack

Product group

TRV set

CE mark

No

China RoHS compliance

Out of scope

Colour

White RAL 9016

Connection type to valve

RA

Contents of set

2-elements

Description

Includes RAS-C2 sensor, RA-FS bi-directional angle valve and elbow

Design

Angle

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Limiter pins

No

Packaging type

Box

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time [m]

22 min

RLV type

no RLV

Sensor design

RAS-C2

Sensor media

Liquid

Sensor setting temperature [°C] [Max]

28 °C

Sensor setting temperature [°C] [Min]

8 °C

Sensor type

Built-in sensor

Tailpiece size [mm]

Standard

Tailpiece type

Standard

UL mark

No

Valve size

10 mm

Valve type

Bidir

Zero-blocking

Yes

EAN

5013567411436

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Sensor housing plastic; valve body brass

Temperature Range

8 °C … 28 °C setpoint

HS Code

8481.80
