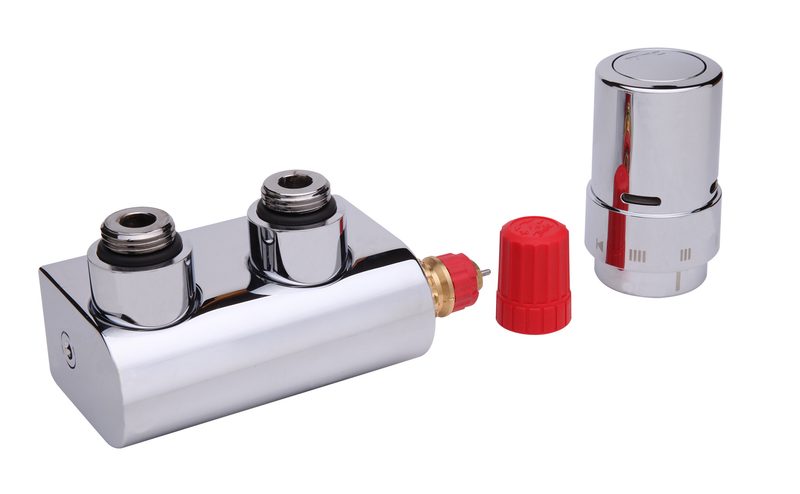

Danfoss VHX-DUO + RAX design-radiator valve set — Angle, dual 50 mm connection, Chrome

Danfoss VHX-DUO + RAX design-radiator valve set (X-tra Collection), OEM order code 013G4206. A dual-connection thermostatic valve set for design/panel radiators: the VHX-DUO valve provides Angle, dual 50 mm connection, G 1/2 inlet / G 1/2 A outlet, and the RAX thermostatic sensor modulates flow in proportion to room temperature. Integrated presetting (RLV type integrated) allows commissioning of the design flow. Chrome finish. Max. working pressure 10 bar, flow temperature up to 120 °C, Kvs 0.56 m³/h m³/h. Set includes RAX sensor. Genuine Danfoss part; data quoted verbatim from store.danfoss.com (code 013G4206). OEM P/N 013G4206, EAN 5702420116259. HS 8481.80.

Brand

Danfoss

Part number

013G4206

Gross weight

2258 Gram

Type

VHX/RAX sets (X-tra Collection)

Product group

Products for design radiators

CE mark

No

China RoHS compliance

Out of scope

Colour

Chrome

Connection size in

G 1/2

Connection size out

G 1/2 A

Contents of set

Valve, sensor

Description

Set includes RAX sensor

Design

Angle, dual 50 mm connection

Differential pressure range [bar] [Max]

0.6 bar

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow temperature [°C] [Max]

120 °C

Kv value at Xp = 1 K [m³/h]

0.03 m³/h

Kv value at Xp = 2 K [m³/h]

0.33 m³/h

Kvs values [m³/h] [Max]

0.56 m³/h

Limiter pins

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time [m]

24 min

RLV type

Integrated

Sensor design

RAX

Sensor type

Thermostatic sensor

UL mark

No

Valve type

VHX-DUO

Working pressure [bar] [Max]

10 bar

Zero-blocking

Yes

EAN

5702420116259

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Valve body brass, chrome-plated; sensor housing plastic

Pressure Rating

10 bar max working

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
