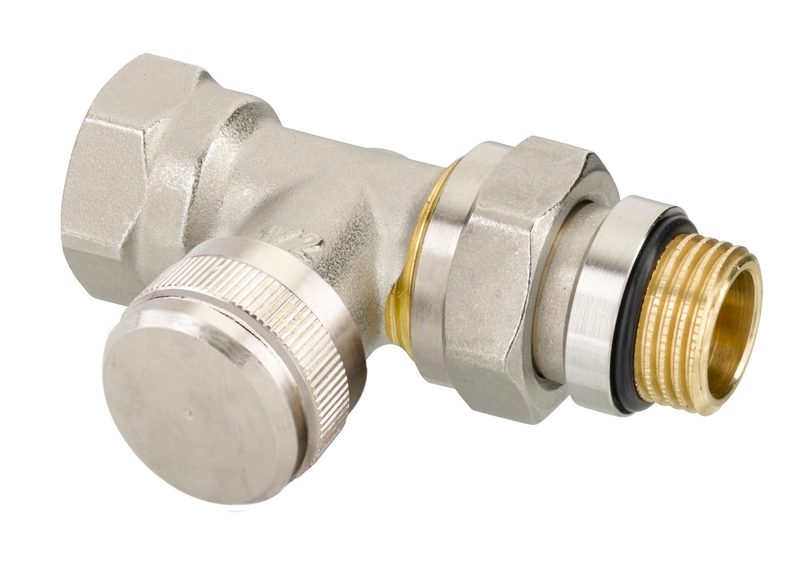

Danfoss RLV DN 15 straight lockshield radiator valve — self-sealing, manual shut-off
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RLV — manual return-side lockshield radiator valve for two-pipe hydronic heating systems, OEM order code 003L0344. The RLV is a return-side lockshield valve with an integral drain-off feature, allowing an individual radiator to be shut off and drained/filled for maintenance without affecting the rest of the system. Regulation and isolation are set with a 6 mm hex socket under a screw-on cap. This variant has a self-sealing tailpiece (dry-break — the tailpiece seals when the union nut is loosened, so the radiator can be disconnected with minimal water loss). RLV DN 15, straight pattern, connection to system Rp 1/2, connection to radiator R 1/2 (internal thread), Kvs 2.5 m³/h. Body brass, finish Nickel plated. working pressure 10 bar, test pressure 16 bar, flow temperature up to 120 °C. Pair with a Danfoss RA-series thermostatic radiator valve on the flow side. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 003L0344). OEM P/N 003L0344, EAN 5702420095097. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L0344
- Type
- RLV
- Product group
- Lockshield Valves
- Description
- Drain-off feature, self-sealing tailpiece
- Function
- Return-side lockshield / isolating valve with drain-off
- Design
- Straight
- Nominal size
- DN 15
- Connection to system
- Rp 1/2
- Connection to radiator
- R 1/2
- Connection types
- Internal thread
- Tailpiece type
- Self-sealing
- Kvs value
- 2.5 m³/h
- Flow temperature (max)
- 120 °C
- Working pressure (max)
- 10 bar
- Test pressure
- 16 bar
- Finish
- Nickel plated
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.257 Kilogram
- Gross weight
- 0.257 Kilogram
- EAN
- 5702420095097
- HS code
- 8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)
Standards & Compliance
- Material
- Body brass, Nickel plated
- Pressure Rating
- 10 bar max working (test 16 bar)
- Temperature Range
- up to 120 °C (flow)
- HS Code
- 8481.80
Compatibility & Fitment
Return-side lockshield / isolating valve — pair with a Danfoss RA-N / RA-FN / RTR thermostatic radiator valve (or equivalent) on the flow side. RLV DN 15, straight pattern, self-sealing tailpiece (dry-break — the tailpiece seals when the union nut is loosened, so the radiator can be disconnected with minimal water loss), connection to system Rp 1/2, to radiator R 1/2. Distinct SKU by EAN 5702420095097 / net weight 0.257 Kilogram — confirm design, nominal size and tailpiece type against the installation before ordering.
