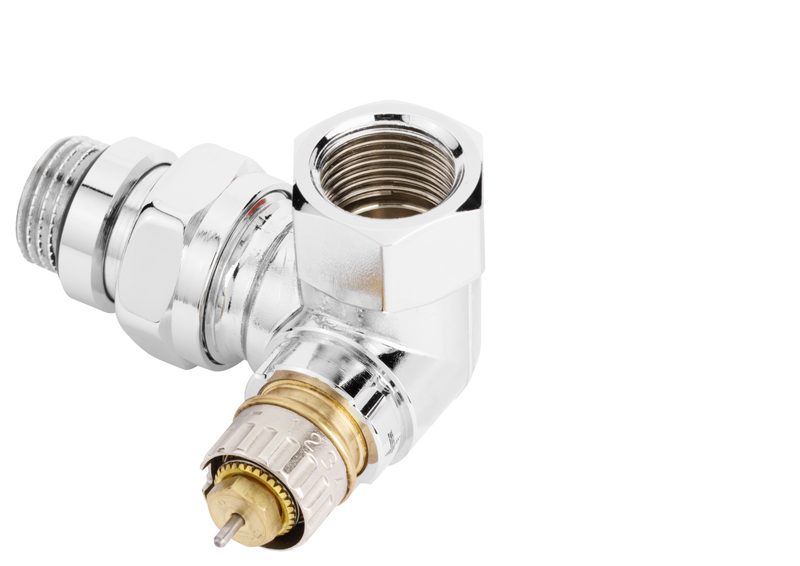

Danfoss RA-NCX DN 15 double angle left design-radiator valve — integrated presetting, Chrome

Danfoss RA-NCX design-radiator valve, DN 15, OEM order code 013G4240. A normal flow radiator valve body with integrated pre-setting for design/panel radiators, in a double angle left pattern. The stepped presetting (settings 1-7 + N) limits the design flow per radiator so a two-pipe system self-balances without a separate balancing valve; the valve accepts an RA-series thermostatic sensor on the clamp connection. 2-pipe system. Connection Rp 1/2 (inlet) / R 1/2 (outlet). Kvs 0.9 m³/h m³/h, max. working pressure 10 bar, test pressure 16 bar, flow temperature up to 120 °C. Chrome plated. Genuine Danfoss part; data quoted verbatim from store.danfoss.com (code 013G4240). OEM P/N 013G4240, EAN 5702420072173. HS 8481.80.

Brand

Danfoss

Part number

013G4240

Gross weight

0.315 Kilogram

Net weight

0.302 Kilogram

Type

RA-NCX

Product group

Products for design radiators

Application

2-pipe system

CE mark

No

China RoHS compliance

Out of scope

Colour

Chrome

Connection size in

Rp 1/2

Connection size out

R 1/2

Connection types

Internal thread

Description

Radiator valve with integrated pre-setting

Design

Double angle left

Differential pressure range [bar] [Max]

0.6 bar

Dimension standard

Other permitted

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Finish

Chrome plated

Flow temperature [°C] [Max]

120 °C

Kv value at setting 1 [m³/h]

0.04 m³/h

Kv value at setting 2 [m³/h]

0.09 m³/h

Kv value at setting 3 [m³/h]

0.16 m³/h

Kv value at setting 4 [m³/h]

0.25 m³/h

Kv value at setting 5 [m³/h]

0.36 m³/h

Kv value at setting 6 [m³/h]

0.43 m³/h

Kv value at setting 7 [m³/h]

0.52 m³/h

Kv value at setting N [m³/h]

0.73 m³/h

Kvs values [m³/h]

0.9 m³/h

Presetting

yes

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Tailpiece type

Standard

Test pressure [bar]

16 bar

UL mark

No

Valve size

DN 15

Valve type

Normal flow

Working pressure [bar] [Max]

10 bar

EAN

5702420072173

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Valve body brass, chrome-plated

Pressure Rating

10 bar max working (test 16 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
