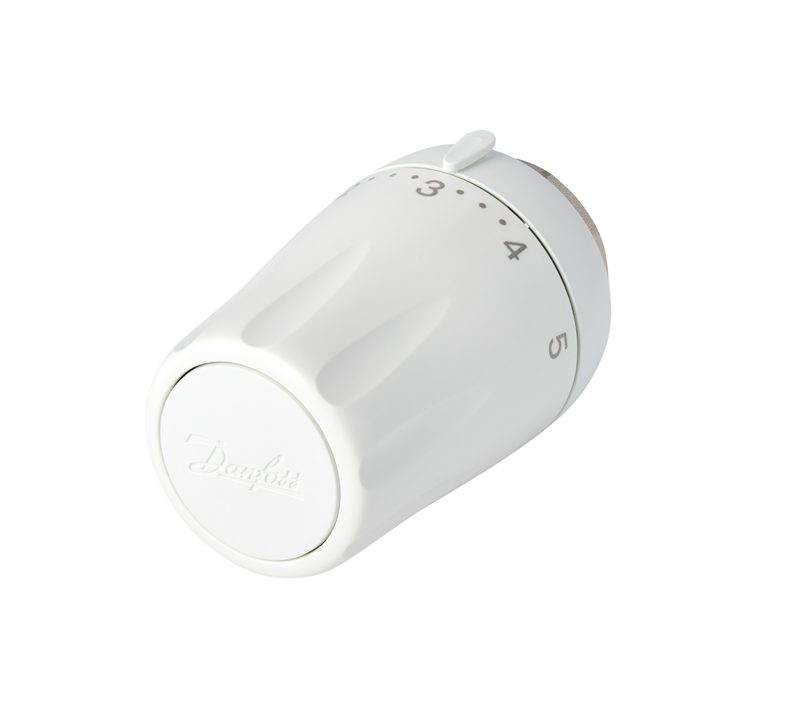

Danfoss RTW-K 7102 thermostatic radiator sensor — liquid-charged, built-in sensor, frost protection, positive shut-off, M30X1.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RTW-K 7102 — self-acting thermostatic radiator sensor (control head), OEM order code 013G7102. A liquid-charged operator with a built-in room-air sensing element that modulates the radiator valve in proportion to room temperature, holding the set temperature without any external power or wiring. Setpoint range 8 °C … 28 °C °C. Includes a frost-protection setting below the scale. Positive shut-off closes the valve fully at the low end of travel. Valve connection M30x1.5. Frost protection, positive shut-off. Genuine Danfoss part; data quoted verbatim from store.danfoss.com (code 013G7102). OEM P/N 013G7102, EAN 5702425119330. HS 9032.10.
Technical Specifications
- Brand
- Danfoss
- Part number
- 013G7102
- Gross weight
- 0.14 Kilogram
- Net weight
- 0.14 Kilogram
- Type
- RTW-K Sensors
- Product group
- Radiator Sensors
- CE mark
- No
- Colour
- White RAL 9016
- Connection type to sensor
- Metal nut
- Connection type to valve
- M30x1.5
- Contents of set
- Sensor
- Description
- Frost protection, positive shut-off
- Frost protection
- Yes
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor design
- RTW-K
- Sensor media
- Liquid
- Sensor setting temperature [°C] [Max]
- 28 °C
- Sensor setting temperature [°C] [Min]
- 8 °C
- Sensor type
- Built-in sensor
- Sensor version
- RTW-K 7102
- Shut-off function
- Yes
- Temperature limitation
- No
- UL mark
- No
- EAN
- 5702425119330
- HS code
- 9032.10 (thermostats)
Standards & Compliance
- Material
- Sensor housing plastic
- Temperature Range
- 8 °C … 28 °C setpoint
- HS Code
- 9032.10
Compatibility & Fitment
Thermostatic sensor / operator head only — the radiator valve body is ordered separately. Valve connection M30x1.5. Suitable where the head is exposed to representative room air. Colour White RAL 9016. Verify the valve connection (M30x1.5) before ordering.
