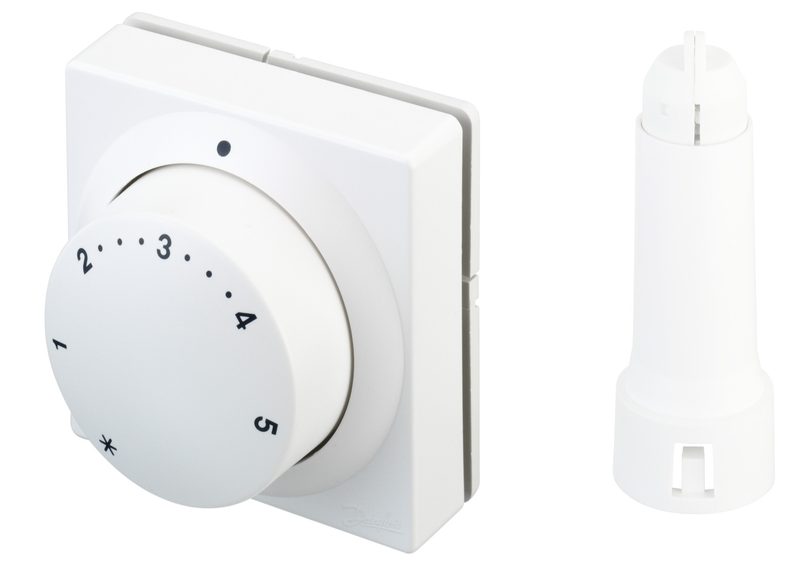

Danfoss RA 5075 remote temperature adjuster — liquid-charged, 15 m capillary, Danfoss RA / RA-N fit

Danfoss RA 5075 — self-acting remote temperature adjuster for Danfoss RA / RA-N radiator valves, OEM order code 013G5075. The RA 5075 is a self-acting remote temperature adjuster: the setpoint dial and sensing element sit away from the radiator, connected to the valve operator by a 15 m capillary, so the room temperature can be set and sensed at a convenient location (e.g. where the valve is concealed or in a draught). Liquid-charged, no power supply required. Setpoint range 8 °C - 28 °C (46 °F - 82 °F). Features: frost-protection setting, setpoint limiting and locking. Valve connection RA. Colour White RAL 9016. Housing plastic. Genuine Danfoss part; specification quoted verbatim from store.danfoss.com (code 013G5075). OEM P/N 013G5075, EAN 5702421035009. HS 9032.10.

Brand

Danfoss

Part number

013G5075

Type

RA 5075

Product group

Radiator Sensors

Function

Self-acting remote temperature adjuster

Charge medium

Liquid

Sensor type

Remote temp. adjuster

Setpoint range

8 °C - 28 °C

Setpoint range (°F)

46 °F - 82 °F

Frost protection

yes (setting below the scale)

Setpoint limiting / locking

available (concealable stops)

Positive shut-off

no

Capillary tube length (max)

15 m

Valve connection

RA

Sensor-to-head connection

RA adaptor

Colour

White RAL 9016

Store description

Remote temperature adjuster with frost protection, limiting and locking of temperature set-point

Operation

self-acting, no power supply required

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.311 Kilogram

Gross weight

0.311 Kilogram

EAN

5702421035009

HS code

9032.10 (thermostats)

Material

Housing plastic (ABS)

Temperature Range

8 °C - 28 °C setpoint (with frost setting)

HS Code

9032.10
