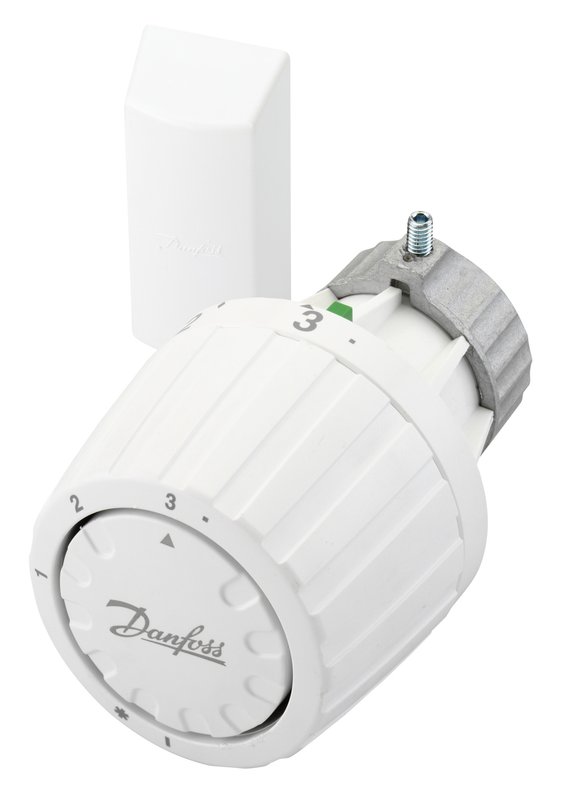

Danfoss RA 2916 thermostatic radiator sensor — gas-charged, remote sensor, Danfoss RA / RA-N fit

Danfoss RA 2916 — self-acting thermostatic radiator sensor (control head) for Danfoss RA, RA-N and RA 2000 radiator valve bodies, OEM order code 013G2916. The RA 2916 is a gas-charged operator that modulates the radiator valve in proportion to room air temperature, holding a set room temperature without any external power or wiring; the gas charge gives a fast sensor response. An air-sensing element on a 2 m capillary lets the sensor be sited away from the valve, for radiators that are concealed or in a cabinet where the air at the valve is not representative of the room. Setpoint range 5 °C - 20 °C, with a frost-protection setting and provision for maximum/minimum limiting and locking of the set-point. Mounts to the valve for Danfoss RA / RA-N bodies. Genuine Danfoss part; specification quoted from store.danfoss.com (code 013G2916). OEM P/N 013G2916, EAN 5702420054841. HS 9032.10.

Brand

Danfoss Part number: 013G2916 Type: RA 2916 Product group: RA 2000 Sensors Function: Self-acting thermostatic radiator sensor / control head Charge medium: Gas (fast response) Sensor type: Remote sensor Setpoint range: 5 °C - 20 °C Frost protection: yes (setting below the scale) Setpoint limiting / locking: available (concealable stops) Valve connection: RA (Danfoss RA / RA-N) Operation: self-acting, no power supply required EAN: 5702420054841 HS code: 9032.10 (thermostats) Net weight: 0.212 Kilogram Capillary tube length [m] [Max]: 2 m CE mark: No China RoHS compliance: Out of scope Colour: White RAL 9016 Connection type to sensor: Allen screw Connection type to valve: RA Contents of set: Sensor Description: Frost protection, limiting and locking of temperature set-point, connection with clamping ring and Allen screw EU RoHS compliance: Out of scope Sensor design: RA 2000 Sensor media: Gas Sensor setting temperature [°C] [Max]: 20 °C Sensor setting temperature [°C] [Min]: 5 °C Sensor version: RA 2916 Shut-off function: No Temperature limitation: Yes UL mark: No

Material

Housing plastic (ABS)

Temperature Range

5 °C - 20 °C setpoint (with frost setting)

HS Code

9032.10
