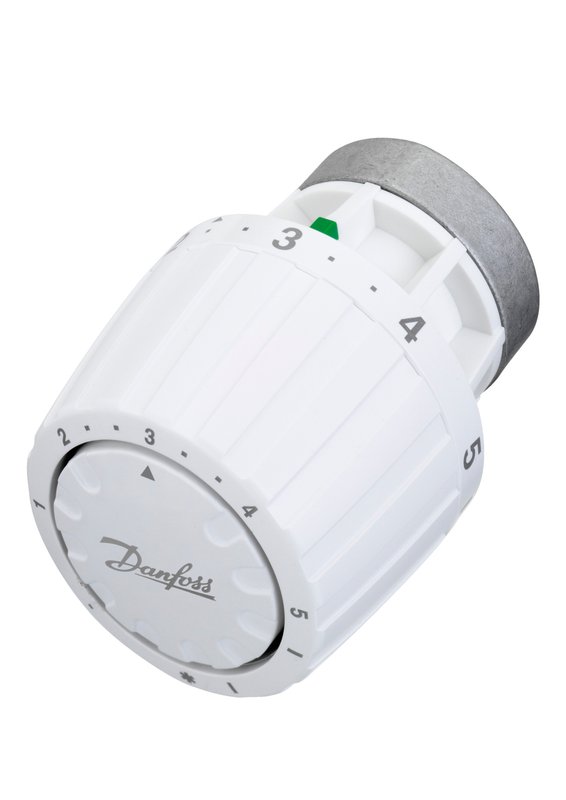

Danfoss RA 2960 thermostatic radiator sensor — gas-charged, built-in sensor, Danfoss RAV fit

Danfoss RA 2960 — self-acting thermostatic radiator sensor (control head) for Danfoss RAV radiator valve bodies (bayonet fixing), OEM order code 013G2960. The RA 2960 is a gas-charged operator that modulates the radiator valve in proportion to room air temperature, holding a set room temperature without any external power or wiring; the gas charge gives a fast sensor response. The temperature-sensing element is built into the setpoint dial, sensing the air immediately around the valve. Setpoint range 5 °C - 26 °C, with a frost-protection setting and provision for maximum/minimum limiting and locking of the set-point. Mounts to the valve for Danfoss RAV bodies. Genuine Danfoss part; specification quoted from store.danfoss.com (code 013G2960). OEM P/N 013G2960, EAN 5702420048079. HS 9032.10.

Brand

Danfoss Part number: 013G2960 Type: RA 2960 Product group: RA-V Sensors Function: Self-acting thermostatic radiator sensor / control head Charge medium: Gas (fast response) Sensor type: Built-in sensor Setpoint range: 5 °C - 26 °C Frost protection: yes (setting below the scale) Setpoint limiting / locking: available (concealable stops) Valve connection: RAV (Danfoss RAV) Operation: self-acting, no power supply required EAN: 5702420048079 HS code: 9032.10 (thermostats) Net weight: 0.136 Kilogram CE mark: No Colour: White RAL 9016 Connection type to sensor: Clamp ring Connection type to valve: RAV Contents of set: Sensor Description: Frost protection, limiting and locking of temperature set-point, suitable for older Danfoss RA/V 34 mm valves EU RoHS compliance: Yes REACH Candidate List substances: No Sensor design: RA/V 2000 Sensor media: Gas Sensor setting temperature [°C] [Max]: 26 °C Sensor setting temperature [°C] [Min]: 5 °C Sensor version: RA 2960 Shut-off function: No Temperature limitation: Yes UL mark: No UNSPSC CODE: 40101801

Material

Housing plastic (ABS)

Temperature Range

5 °C - 26 °C setpoint (with frost setting)

HS Code

9032.10
