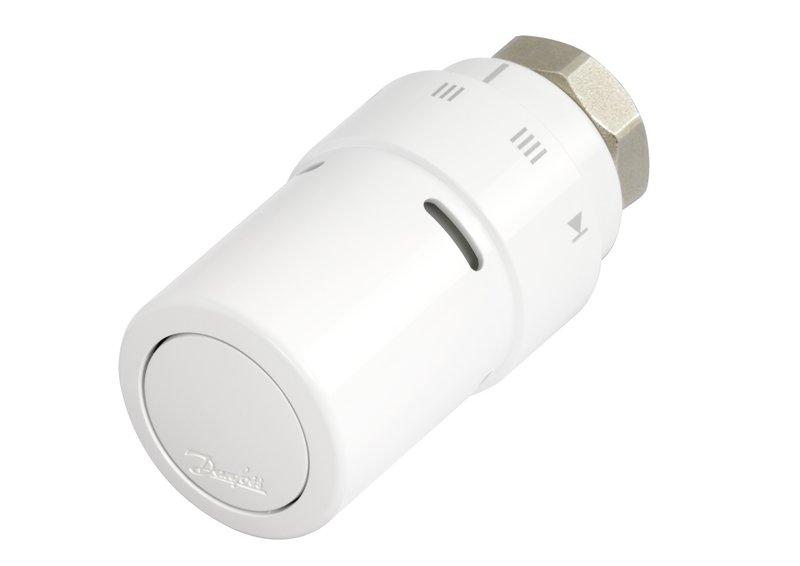

Danfoss RAX-K 6080 thermostatic radiator sensor — liquid-charged, built-in sensor, M30 x 1.5 mm valves fit

Danfoss RAX-K 6080 — self-acting thermostatic radiator sensor (control head) for radiator valve bodies with an M30 x 1.5 mm thermostat connection, OEM order code 013G6080. The RAX-K 6080 is a liquid-charged operator that modulates the radiator valve in proportion to room air temperature, holding a set room temperature without any external power or wiring; the liquid charge gives stable, hysteresis-controlled operation. The temperature-sensing element is built into the setpoint dial, sensing the air immediately around the valve. Setpoint range 8 °C - 28 °C, with a frost-protection setting and provision for maximum/minimum limiting and locking of the set-point. Mounts to the valve for M30 x 1.5 mm valves bodies. Genuine Danfoss part; specification quoted from store.danfoss.com (code 013G6080). OEM P/N 013G6080, EAN 5702420110523. HS 9032.10.

Brand

Danfoss Part number: 013G6080 Type: RAX-K 6080 Product group: RAX-K Sensors Function: Self-acting thermostatic radiator sensor / control head Charge medium: Liquid Sensor type: Built-in sensor Setpoint range: 8 °C - 28 °C Frost protection: yes (setting below the scale) Setpoint limiting / locking: available (concealable stops) Valve connection: M30x1.5 (M30 x 1.5 mm valves) Operation: self-acting, no power supply required EAN: 5702420110523 HS code: 9032.10 (thermostats) Net weight: 0.136 Kilogram CE mark: No Colour: White RAL 9016 Connection type sensor: Metal nut Connection type to valve: M30x1.5 Contents of set: Sensor Description: For non Danfoss valves, positive shut-off feature. EU RoHS compliance: Yes with exemptions EU RoHS exemption clause: 6(c) REACH Candidate List substances: Lead (CAS no. 7439-92-1) Sensor design: RAX-K Sensor media: Liquid Sensor setting temperature [°C] [Max]: 28 °C Sensor setting temperature [°C] [Min]: 8 °C Sensor version: RAX-K 6080 Shut-off function: Yes Temperature limitation: No UL mark: No UNSPSC CODE: 40101801

Material

Housing plastic (ABS)

Temperature Range

8 °C - 28 °C setpoint (with frost setting)

HS Code

9032.10
