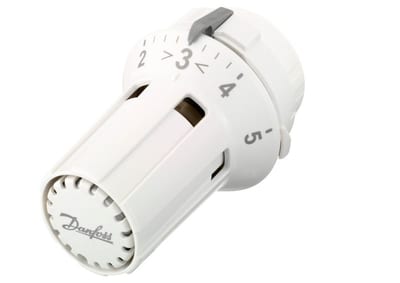

Danfoss RTR-C 7070 thermostatic radiator sensor — liquid-charged, built-in sensor, Danfoss RA / RA-N fit

Danfoss RTR-C 7070 — self-acting thermostatic radiator sensor (control head) for Danfoss RA, RA-N and RA 2000 radiator valve bodies, OEM order code 013G7070. The RTR-C 7070 is a liquid-charged operator that modulates the radiator valve in proportion to room air temperature, holding a set room temperature without any external power or wiring; the liquid charge gives stable, hysteresis-controlled operation. The temperature-sensing element is built into the setpoint dial, sensing the air immediately around the valve. Setpoint range 8 °C - 28 °C, with a frost-protection setting and provision for maximum/minimum limiting and locking of the set-point. Mounts to the valve for Danfoss RA / RA-N bodies. Genuine Danfoss part; specification quoted from store.danfoss.com (code 013G7070). OEM P/N 013G7070, EAN 5702425204647. HS 9032.10.

Brand

Danfoss Part number: 013G7070 Type: RTR-C 7070 Product group: RTR-C Sensors Function: Self-acting thermostatic radiator sensor / control head Charge medium: Liquid Sensor type: Built-in sensor Setpoint range: 8 °C - 28 °C Frost protection: yes (setting below the scale) Setpoint limiting / locking: available (concealable stops) Valve connection: RA (Danfoss RA / RA-N) Operation: self-acting, no power supply required EAN: 5702425204647 HS code: 9032.10 (thermostats) Net weight: 0.135 Kilogram CE mark: No Colour: White RAL 9016 Connection type to sensor: RA-click Connection type to valve: RA Contents of set: Sensor Description: White socket, temperature limitation feature Sensor design: RTR-C Sensor media: Liquid Sensor setting temperature [°C] [Max]: 28 °C Sensor setting temperature [°C] [Min]: 8 °C Sensor version: RTR-C 7070 Shut-off function: No Temperature limitation: Yes UL mark: No

Material

Housing plastic (ABS)

Temperature Range

8 °C - 28 °C setpoint (with frost setting)

HS Code

9032.10
