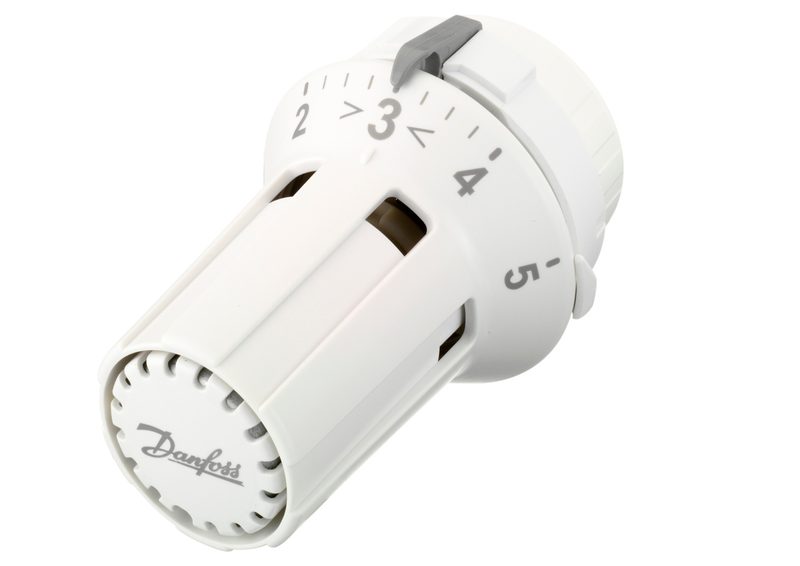

Danfoss RAW 5010 thermostatic radiator sensor — liquid-charged, built-in sensor, Danfoss RA / RA-N fit

Danfoss RAW 5010 — self-acting thermostatic radiator sensor (control head), OEM order code 013G5010. The RAW 5010 is a self-acting thermostatic operator (control head) for Danfoss radiator valve bodies. It modulates the valve in proportion to room air temperature to hold the set room temperature without any external power or wiring; the liquid charge gives stable, hysteresis-controlled operation and the sensing element is built into the setpoint dial, sensing the air immediately around the valve. Setpoint range 8 °C - 28 °C. Features: frost-protection setting, setpoint limiting and locking. Valve connection RA. Colour White RAL 9016. Housing plastic. Genuine Danfoss part; specification quoted verbatim from store.danfoss.com (code 013G5010). OEM P/N 013G5010, EAN 5702420018409. HS 9032.10.

Brand

Danfoss

Part number

013G5010

Type

RAW 5010

Product group

Radiator Sensors

Function

Self-acting thermostatic radiator sensor / control head

Charge medium

Liquid

Sensor type

Built-in sensor

Setpoint range

8 °C - 28 °C

Frost protection

yes (setting below the scale)

Setpoint limiting / locking

available (concealable stops)

Positive shut-off

no

Valve connection

RA

Sensor-to-head connection

RA-click

Colour

White RAL 9016

Store description

White socket; temperature limitation feature

Operation

self-acting, no power supply required

REACH candidate-list substances

No

Net weight

0.131 Kilogram

Gross weight

0.15 Kilogram

EAN

5702420018409

HS code

9032.10 (thermostats)

Material

Housing plastic (ABS)

Temperature Range

8 °C - 28 °C setpoint (with frost setting)

HS Code

9032.10
