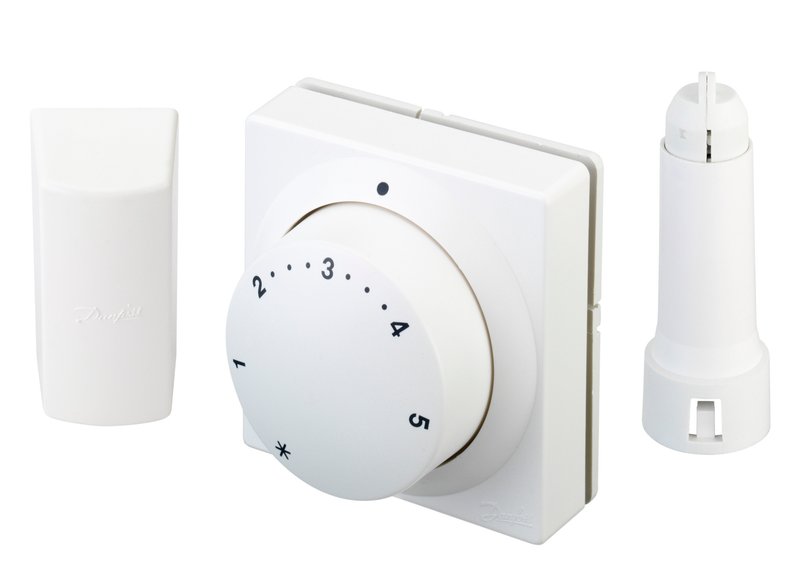

Danfoss RA 5074 thermostatic radiator sensor — liquid-charged, remote temperature adjuster, Danfoss RA / RA-N fit

Danfoss RA 5074 — self-acting thermostatic radiator sensor (control head) for Danfoss RA, RA-N and RA 2000 radiator valve bodies, OEM order code 013G5074. The RA 5074 is a liquid-charged operator that modulates the radiator valve in proportion to room air temperature, holding a set room temperature without any external power or wiring; the liquid charge gives stable, hysteresis-controlled operation. The setpoint dial is remote, connected to the valve by a 2 m capillary, for concealed valves or wall-mounted adjustment at a convenient height. Setpoint range 8 °C - 28 °C, with a frost-protection setting and provision for maximum/minimum limiting and locking of the set-point. Mounts to the valve for Danfoss RA / RA-N bodies. Genuine Danfoss part; specification quoted from store.danfoss.com (code 013G5074). OEM P/N 013G5074, EAN 5702420063812. HS 9032.10.

Brand

Danfoss Part number: 013G5074 Type: RA 5074 Product group: RA Remote Setting Sensors Function: Self-acting thermostatic radiator sensor / control head Charge medium: Liquid Sensor type: Remote temperature adjuster Setpoint range: 8 °C - 28 °C Frost protection: yes (setting below the scale) Setpoint limiting / locking: available (concealable stops) Valve connection: RA (Danfoss RA / RA-N) Operation: self-acting, no power supply required EAN: 5702420063812 HS code: 9032.10 (thermostats) Net weight: 0.383 Kilogram Capillary tube length: 0 - 2 + 0 - 2 m Capillary tube length [m] [Max]: 2 m Capillary tube to radiator length [m] [Max]: 2 m CE mark: No Colour: White RAL 9016 Connection type sensor: RA adaptor Connection type to valve: RA Contents of set: Sensor Description: Remote temperature adjuster with frost protection, limiting and locking of temperature set-point REACH Candidate List substances: Lead (CAS no. 7439-92-1) Sensor design: RA 2000 Sensor media: Liquid Sensor setting temperature [°C] [Max]: 28 °C Sensor setting temperature [°C] [Min]: 8 °C Sensor setting temperature [°F] [Max]: 82 °F Sensor setting temperature [°F] [Min]: 46 °F Sensor version: RA 5074 Shut-off function: No Temperature limitation: Yes UL mark: No

Material

Housing plastic (ABS)

Temperature Range

8 °C - 28 °C setpoint (with frost setting)

HS Code

9032.10
