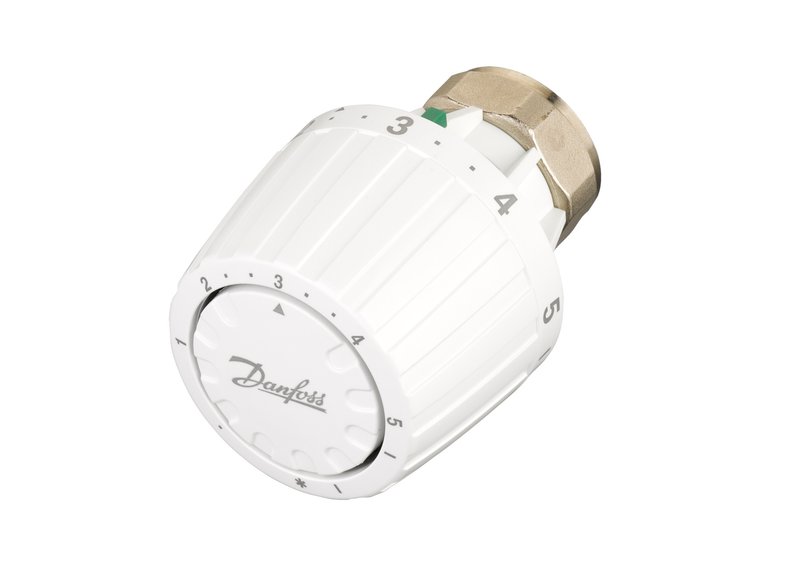

Danfoss RA 2945 thermostatic radiator sensor — gas-charged, built-in sensor, Danfoss RTD fit

Danfoss RA 2945 — self-acting thermostatic radiator sensor (control head) for Danfoss RTD-N and RTD radiator valve bodies, OEM order code 013G2945. The RA 2945 is a gas-charged operator that modulates the radiator valve in proportion to room air temperature, holding a set room temperature without any external power or wiring; the gas charge gives a fast sensor response. The temperature-sensing element is built into the setpoint dial, sensing the air immediately around the valve. Setpoint range 5 °C - 26 °C, with a frost-protection setting and provision for maximum/minimum limiting and locking of the set-point. Mounts to the valve for Danfoss RTD bodies. Genuine Danfoss part; specification quoted from store.danfoss.com (code 013G2945). OEM P/N 013G2945, EAN 5702420091792. HS 9032.10.

Brand

Danfoss Part number: 013G2945 Type: RA 2945 Product group: RA-RTD Sensors Function: Self-acting thermostatic radiator sensor / control head Charge medium: Gas (fast response) Sensor type: Built-in sensor Setpoint range: 5 °C - 26 °C Frost protection: yes (setting below the scale) Setpoint limiting / locking: available (concealable stops) Valve connection: RTD (Danfoss RTD) Operation: self-acting, no power supply required EAN: 5702420091792 HS code: 9032.10 (thermostats) Net weight: 0.136 Kilogram CE mark: No Colour: White RAL 9016 Connection type to sensor: Metal nut Connection type to valve: RTD Contents of set: Sensor Description: Frost protection, limiting and locking of temperature REACH Candidate List substances: Lead (CAS no. 7439-92-1) Sensor design: RA/RTD 2000 Sensor media: Gas Sensor setting temperature [°C] [Max]: 26 °C Sensor setting temperature [°C] [Min]: 5 °C Sensor version: RA 2945 Shut-off function: No Temperature limitation: Yes UL mark: No UNSPSC CODE: 40101801

Material

Housing plastic (ABS)

Temperature Range

5 °C - 26 °C setpoint (with frost setting)

HS Code

9032.10
