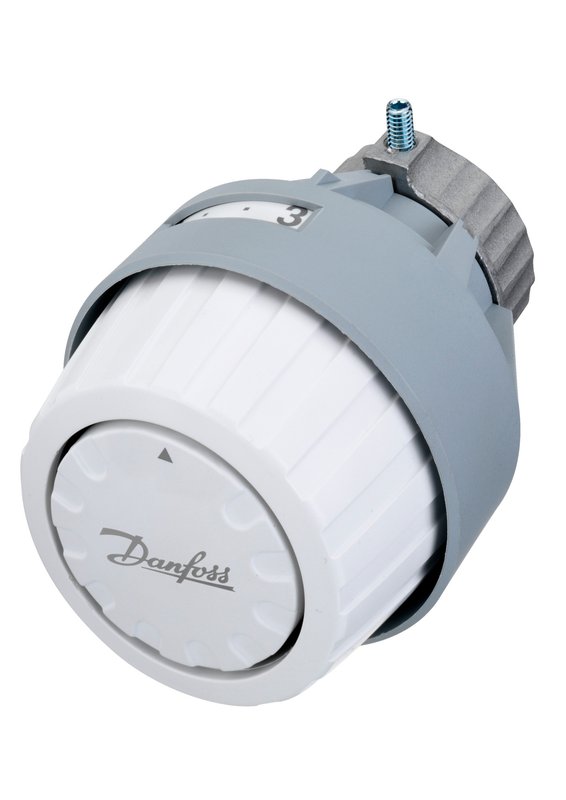

Danfoss RA 2920 thermostatic radiator sensor — gas-charged, built-in sensor, Danfoss RA / RA-N fit

Danfoss RA 2920 — self-acting thermostatic radiator sensor (control head) for Danfoss RA, RA-N and RA 2000 radiator valve bodies, OEM order code 013G2920. The RA 2920 is a gas-charged operator that modulates the radiator valve in proportion to room air temperature, holding a set room temperature without any external power or wiring; the gas charge gives a fast sensor response. The temperature-sensing element is built into the setpoint dial, sensing the air immediately around the valve. Setpoint range 5 °C - 26 °C, with a frost-protection setting and provision for maximum/minimum limiting and locking of the set-point. Mounts to the valve for Danfoss RA / RA-N bodies. Genuine Danfoss part; specification quoted from store.danfoss.com (code 013G2920). OEM P/N 013G2920, EAN 5702420048215. HS 9032.10.

Brand

Danfoss Part number: 013G2920 Type: RA 2920 Product group: RA 2000 Sensors Function: Self-acting thermostatic radiator sensor / control head Charge medium: Gas (fast response) Sensor type: Built-in sensor Setpoint range: 5 °C - 26 °C Frost protection: yes (setting below the scale) Setpoint limiting / locking: available (concealable stops) Valve connection: RA (Danfoss RA / RA-N) Operation: self-acting, no power supply required EAN: 5702420048215 HS code: 9032.10 (thermostats) Net weight: 0.164 Kilogram CE mark: No China RoHS compliance: Out of scope Colour: White RAL 9016 Connection type to sensor: Allen screw Connection type to valve: RA Contents of set: Sensor Description: Frost protection, limiting and locking of temperature set-point, tamperproof, connection with clamping ring and Allen screw EU RoHS compliance: Out of scope REACH Candidate List substances: No Sensor design: RA 2000 Sensor media: Gas Sensor setting temperature [°C] [Max]: 26 °C Sensor setting temperature [°C] [Min]: 5 °C Sensor version: RA 2920 Shut-off function: No Temperature limitation: Yes UL mark: No

Material

Housing plastic (ABS)

Temperature Range

5 °C - 26 °C setpoint (with frost setting)

HS Code

9032.10
