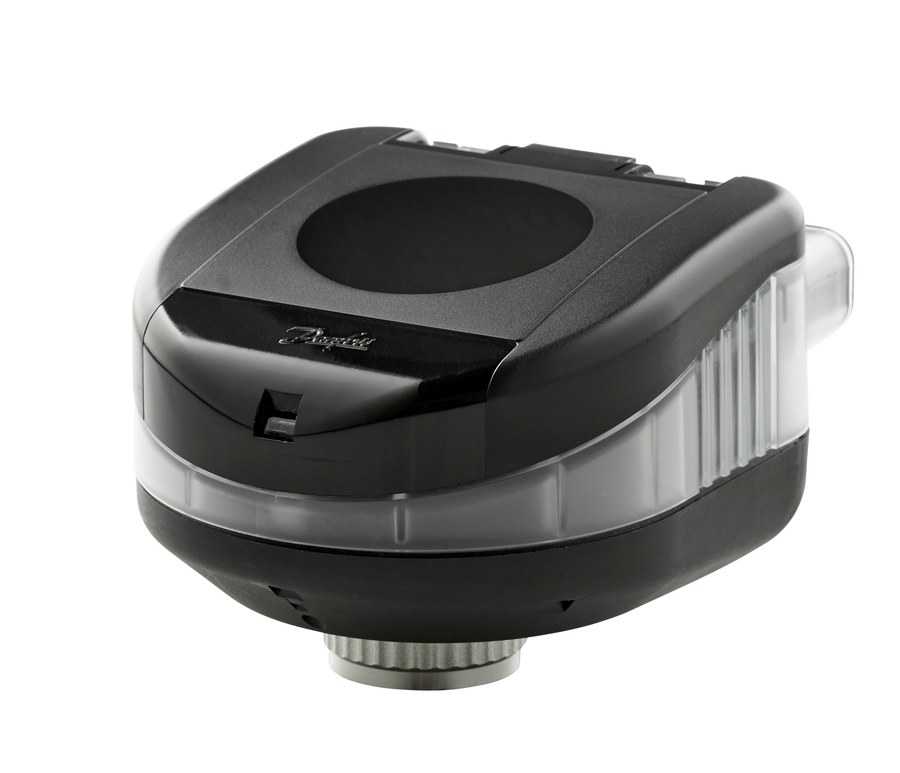

Danfoss NovoCon S — NovoCon S, Digital actuator for AB-QM DN 10-32
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss NovoCon S digital electric actuator, OEM order code 003Z8504. NovoCon S, Digital actuator for AB-QM DN 10-32. Drives Danfoss AB-QM pressure-independent balancing & control valves (DN 10-32). Supply voltage 24 V AC/DC. Control / communication signals: 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU. Stroke 7 mm. Ingress protection IP 54 (IP 40 upside down). Mounts on the AB-QM valve neck and modulates flow to a controller setpoint. Technical data quoted verbatim from store.danfoss.com (code 003Z8504). EAN 5702425203855. HS 9032.89.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003Z8504
- Code number
- 003Z8504
- Valve compatibility
- DN 10-32
- Type
- NovoCon S
- Product group
- Gear actuators
- Description
- NovoCon S, Digital actuator for AB-QM DN 10-32
- Compatibility with AB-QM size
- DN 10-32
- Control signal type
- 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU
- Stroke [mm]
- 7 mm
- Supply voltage [V]
- 24 V AC/DC
- IP protection class
- IP 54 (IP 40 upside down)
- Cable included
- No
- Contains batteries
- No
- REACH Candidate List substances
- No
- EU RoHS compliance
- Yes
- EPD available
- Yes
- Net weight
- 0.345 Kilogram
- Gross weight
- 0.376 Kilogram
- Volume
- 1.011 Liter
- EAN
- 5702425203855
- HS code
- 9032.89
Standards & Compliance
- IP Rating
- IP 54 (IP 40 upside down)
- HS Code
- 9032.89
Compatibility & Fitment
Digital actuator for Danfoss AB-QM pressure-independent balancing valves, size range DN 10-32. Match the actuator to the AB-QM valve DN before ordering — NovoCon S covers DN10-32, NovoCon M DN40-100, NovoCon L DN125-150, NovoCon XL DN200-250. Confirm the control signal (0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, …) matches your BMS.
Product Documentation
More from Danfoss
Danfoss
Danfoss CHANGEOVER6 — CHANGEOVER6 Actuator for NovoCon S
003Z8520
Danfoss

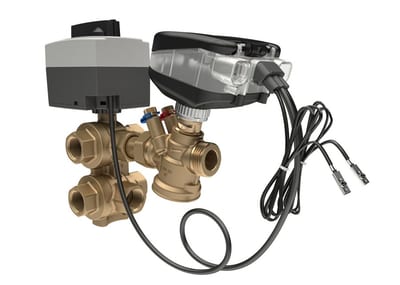

Danfoss CHANGEOVER6 — CHANGEOVER6 Actuator for NovoCon S, with surface temperature sensors
