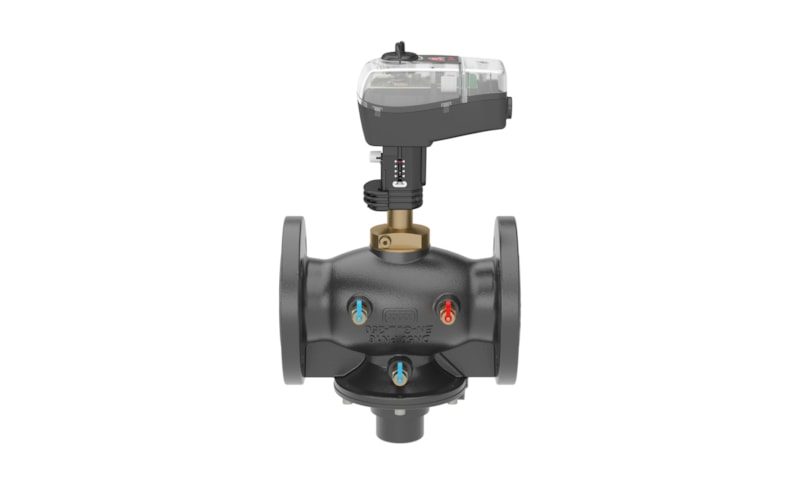

Danfoss NovoCon M — NovoCon M, Digital actuator for AB-QM DN 40-100
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss NovoCon M digital electric actuator, OEM order code 003Z8540. NovoCon M, Digital actuator for AB-QM DN 40-100. Drives Danfoss AB-QM pressure-independent balancing & control valves (DN 40-100). Supply voltage 24 V AC/DC. Control / communication signals: 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU. Stroke 20 mm. Ingress protection IP 54 (IP 40 upside down). Mounts on the AB-QM valve neck and modulates flow to a controller setpoint. Technical data quoted verbatim from store.danfoss.com (code 003Z8540). EAN 5714279038613. HS 9032.89.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003Z8540
- Code number
- 003Z8540
- Valve compatibility
- DN 40-100
- Type
- NovoCon M
- Product group
- Gear actuators
- Description
- NovoCon M, Digital actuator for AB-QM DN 40-100
- Compatibility with AB-QM size
- DN 40-100
- Control signal type
- 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU
- Stroke [mm]
- 20 mm
- Supply voltage [V]
- 24 V AC/DC
- IP protection class
- IP 54 (IP 40 upside down)
- Cable included
- No
- Contains batteries
- No
- REACH Candidate List substances
- No
- EU RoHS compliance
- Yes
- EPD available
- Yes
- Net weight
- 0.7 Kilogram
- Gross weight
- 0.7 Kilogram
- Volume
- 3.529 Liter
- EAN
- 5714279038613
- HS code
- 9032.89
Standards & Compliance
- IP Rating
- IP 54 (IP 40 upside down)
- HS Code
- 9032.89
Compatibility & Fitment
Digital actuator for Danfoss AB-QM pressure-independent balancing valves, size range DN 40-100. Match the actuator to the AB-QM valve DN before ordering — NovoCon S covers DN10-32, NovoCon M DN40-100, NovoCon L DN125-150, NovoCon XL DN200-250. Confirm the control signal (0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, …) matches your BMS.
