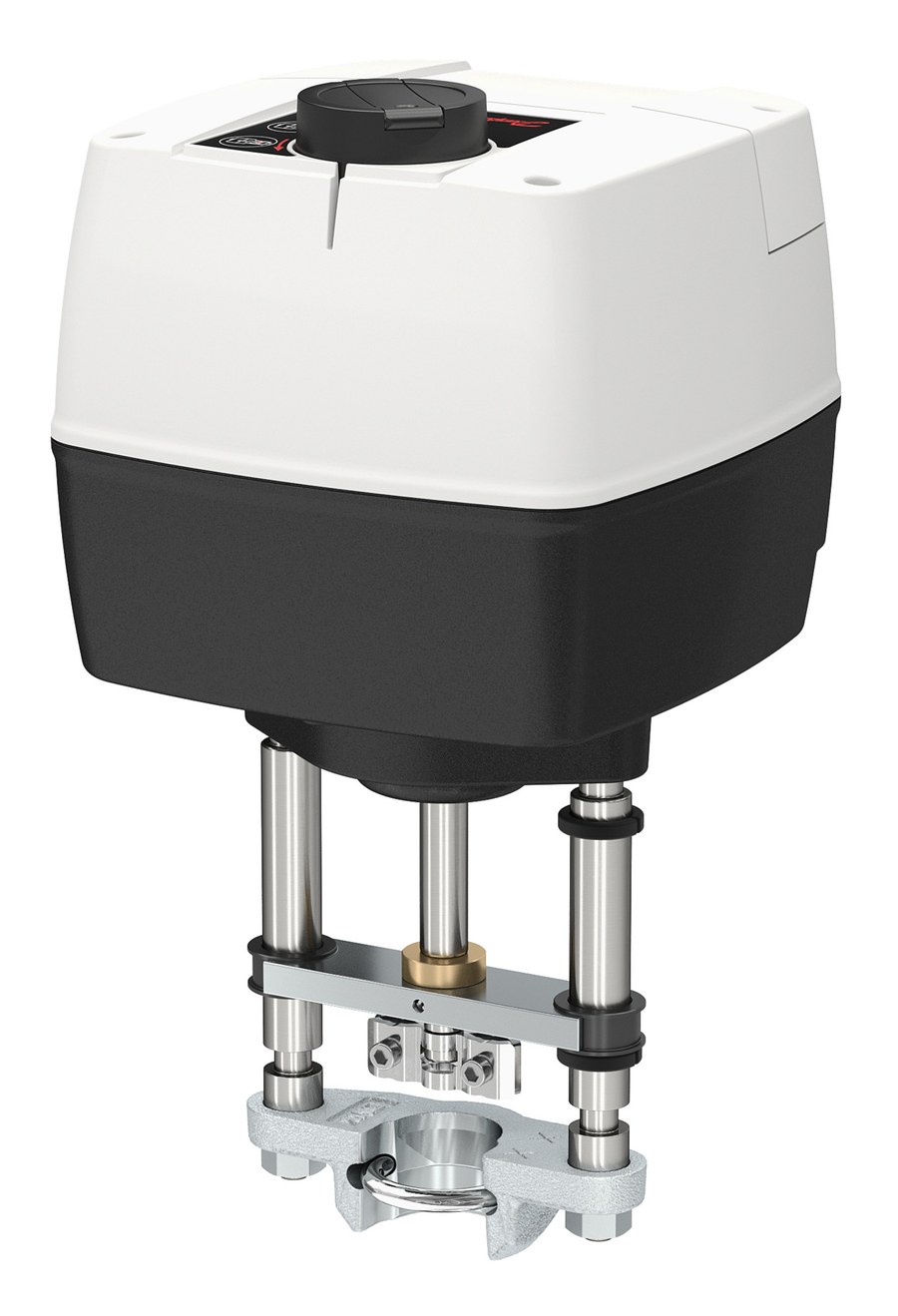

Danfoss NovoCon L — NovoCon L, Digital actuator for AB-QM DN 125-150
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss NovoCon L digital electric actuator, OEM order code 003Z8560. NovoCon L, Digital actuator for AB-QM DN 125-150. Drives Danfoss AB-QM pressure-independent balancing & control valves (DN 125-150). Supply voltage 24 V AC/DC. Control / communication signals: 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU. Stroke 50 mm. Ingress protection IP54. Mounts on the AB-QM valve neck and modulates flow to a controller setpoint. Technical data quoted verbatim from store.danfoss.com (code 003Z8560). EAN 5714279426090. HS 9032.89.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003Z8560
- Code number
- 003Z8560
- Valve compatibility
- DN 125-150
- Type
- NovoCon L
- Product group
- Gear actuators
- Description
- NovoCon L, Digital actuator for AB-QM DN 125-150
- Compatibility with AB-QM size
- DN 125-150
- Control signal type
- 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU
- Control characteristic
- Linear / Equal percentage
- Stroke [mm]
- 50 mm
- Supply voltage [V]
- 24 V AC/DC
- IP protection class
- IP54
- Cable included
- No
- Contains batteries
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- EU RoHS compliance
- Yes with exemptions
- Net weight
- 5.4 Kilogram
- Gross weight
- 6.241 Kilogram
- Volume
- 17.85 Liter
- EAN
- 5714279426090
- HS code
- 9032.89
Standards & Compliance
- IP Rating
- IP54
- HS Code
- 9032.89
Compatibility & Fitment
Digital actuator for Danfoss AB-QM pressure-independent balancing valves, size range DN 125-150. Match the actuator to the AB-QM valve DN before ordering — NovoCon S covers DN10-32, NovoCon M DN40-100, NovoCon L DN125-150, NovoCon XL DN200-250. Confirm the control signal (0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, …) matches your BMS.
