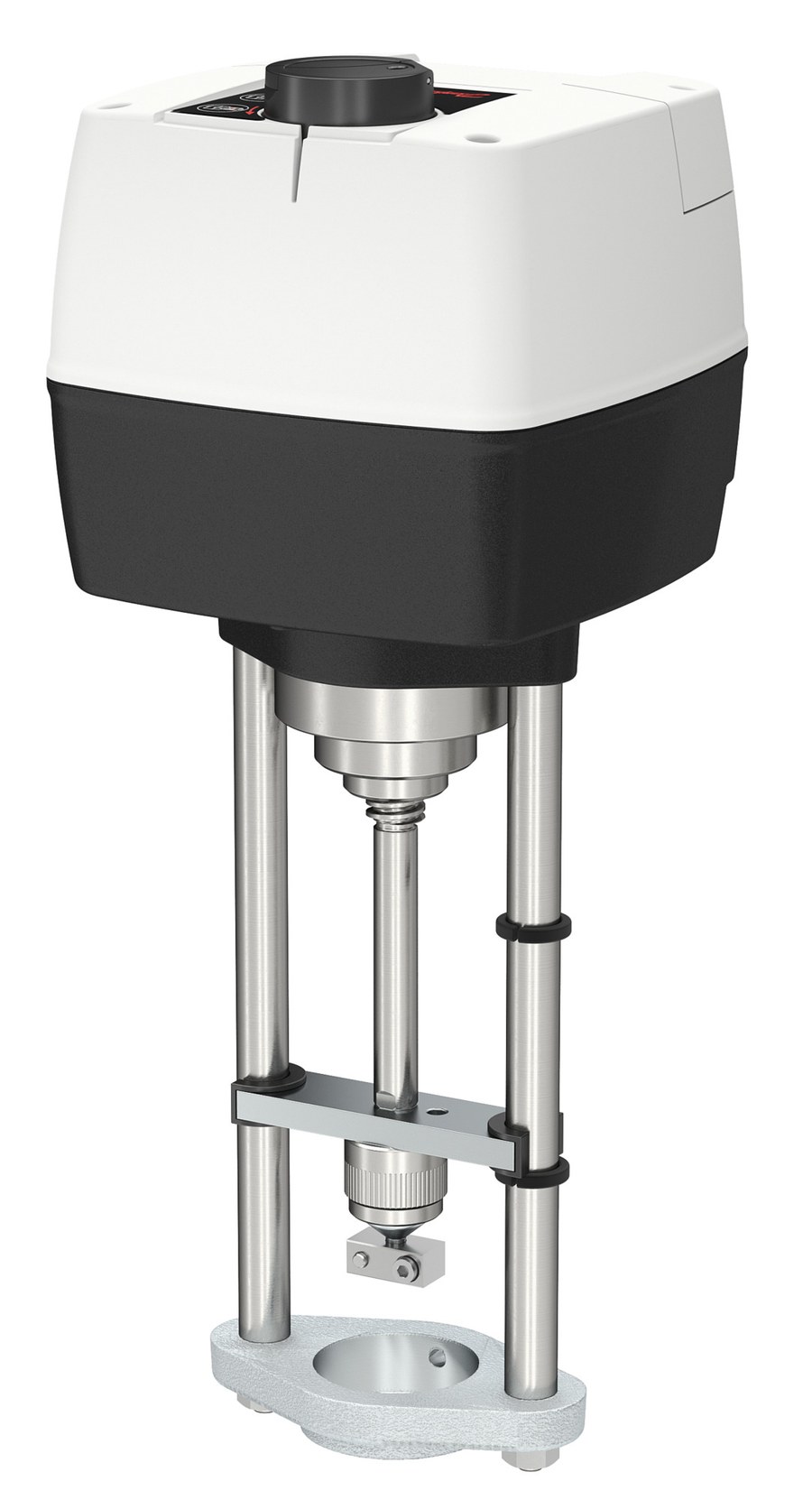

Danfoss NovoCon XL — NovoCon XL, Digital actuator for AB-QM DN 200-250
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss NovoCon XL digital electric actuator, OEM order code 003Z8563. NovoCon XL, Digital actuator for AB-QM DN 200-250. Drives Danfoss AB-QM pressure-independent balancing & control valves (DN 200-250). Supply voltage 24 V AC/DC. Control / communication signals: 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU. Stroke 80 mm. Ingress protection IP54. Mounts on the AB-QM valve neck and modulates flow to a controller setpoint. Technical data quoted verbatim from store.danfoss.com (code 003Z8563). EAN 5714279426243. HS 9032.89.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003Z8563
- Code number
- 003Z8563
- Valve compatibility
- DN 200-250
- Type
- NovoCon XL
- Product group
- Gear actuators
- Description
- NovoCon XL, Digital actuator for AB-QM DN 200-250
- Compatibility with AB-QM size
- DN 200-250
- Control signal type
- 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU
- Control characteristic
- Linear / Equal percentage
- Stroke [mm]
- 80 mm
- Supply voltage [V]
- 24 V AC/DC
- IP protection class
- IP54
- Cable included
- No
- Contains batteries
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- EU RoHS compliance
- Yes with exemptions
- Net weight
- 6.3 Kilogram
- Gross weight
- 8.833 Kilogram
- Volume
- 26.565 Liter
- EAN
- 5714279426243
- HS code
- 9032.89
Standards & Compliance
- IP Rating
- IP54
- HS Code
- 9032.89
Compatibility & Fitment
Digital actuator for Danfoss AB-QM pressure-independent balancing valves, size range DN 200-250. Match the actuator to the AB-QM valve DN before ordering — NovoCon S covers DN10-32, NovoCon M DN40-100, NovoCon L DN125-150, NovoCon XL DN200-250. Confirm the control signal (0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, …) matches your BMS.
Product Documentation
More from Danfoss
Danfoss
Danfoss Cable for NovoCon S Digital, 1,5 m — NovoCon Cable
003Z8600
Danfoss
Danfoss Cable for NovoCon S Digital, 5 m — NovoCon Cable
003Z8601
Danfoss
Danfoss Cable for NovoCon S Digital, 10 m — NovoCon Cable
003Z8602
Danfoss
Danfoss Cable for NovoCon S Digital, Daisy chain, 1,5 m — NovoCon Cable
003Z8603
Danfoss
Danfoss Cable for NovoCon S Digital, Daisy chain, 5 m — NovoCon Cable
003Z8604
Danfoss
Danfoss Cable for NovoCon S Digital, Daisy chain, 10 m — NovoCon Cable
003Z8605
Danfoss

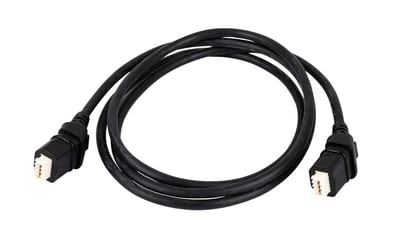

Danfoss Cable for NovoCon S Digital Daisy Chain, 0,5 m — NovoCon Cable
003Z8609
Danfoss

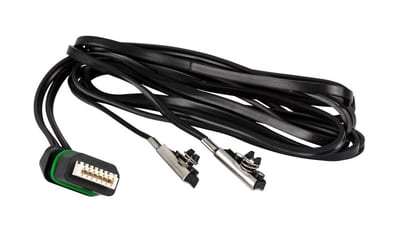

Danfoss Cable for NovoCon S with surface temperature sensors, 1,5 m — NovoCon Cable
