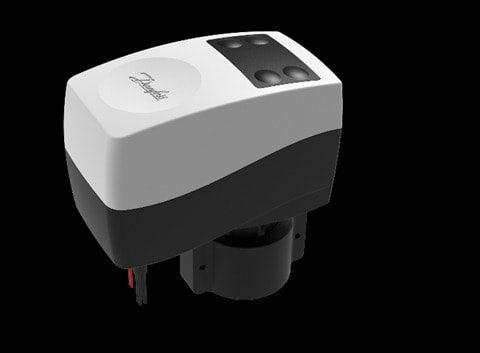

Danfoss BeaCon — A, China-tailored smart actuator, compatible with AB-QM valves (DN15-32)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BeaCon digital electric actuator, OEM order code 003Z8524. A, China-tailored smart actuator, compatible with AB-QM valves (DN15-32). Drives Danfoss AB-QM pressure-independent balancing & control valves (AB-QM DN 15-32). Supply voltage 24 V AC/DC. Control / communication signals: M-Bus cummunication CJ188. Stroke 7 mm. Closing force 120 N. Ingress protection IP54/IP40 (upside down). Mounts on the AB-QM valve neck and modulates flow to a controller setpoint. Technical data quoted verbatim from store.danfoss.com (code 003Z8524). EAN 5715162449004. HS 9032.89.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003Z8524
- Code number
- 003Z8524
- Valve compatibility
- AB-QM DN 15-32
- Type
- Beacon
- Product group
- Gear actuators
- Description
- A, China-tailored smart actuator, compatible with AB-QM valves (DN15-32)
- Compatibility with valve
- AB-QM DN 15-32
- Actuator connection
- M30 x 1.5
- Control signal type
- M-Bus cummunication CJ188
- Control characteristic
- Linear
- Stroke [mm]
- 7 mm
- Closing force [N]
- 120 N
- Spindle speed [s/mm]
- 1.5 s/mm
- Supply voltage [V]
- 24 V AC/DC
- Frequency [Hz]
- 50/60 Hz
- Power consumption [W]
- 2 W
- Power consumption (standby) [W]
- 0.2 W
- IP protection class
- IP54/IP40 (upside down)
- Electrical Protection Class according to EN60730-1
- III
- Manual operation
- Yes
- Calibration
- Yes
- Number of temperature sensors
- 1
- Temperature sensors type
- NTC 10K, 3950ohms
- Temperature sensors cable length [m]
- 1.5 m
- Communication speed [bps]
- 2400 b/s
- Cable included
- Yes
- Cable length [m]
- 1.5 m
- Ambient temperature [°C] [min]
- -10 °C
- Ambient temperature [°C] [max]
- 55 °C
- Medium temperature range [°C] [min]
- 0 °C
- Medium temperature range [°C] [max]
- 90 °C
- Contains batteries
- No
- EU RoHS compliance
- Out of scope
- Net weight
- 0.2 Kilogram
- Gross weight
- 0.2 Kilogram
- Volume
- 366.6 Cubic centimeter
- EAN
- 5715162449004
- HS code
- 9032.89
Standards & Compliance
- Temperature Range
- -10 to 55 °C (ambient)
- IP Rating
- IP54/IP40 (upside down)
- HS Code
- 9032.89
Compatibility & Fitment
Digital actuator for Danfoss AB-QM pressure-independent balancing valves, size range AB-QM DN 15-32. Match the actuator to the AB-QM valve DN before ordering — NovoCon S covers DN10-32, NovoCon M DN40-100, NovoCon L DN125-150, NovoCon XL DN200-250. Confirm the control signal (M-Bus cummunication CJ188) matches your BMS.
Product Documentation
More from Danfoss
Danfoss

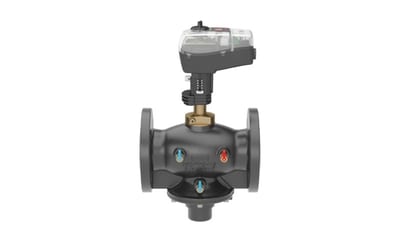

Danfoss NovoCon M — NovoCon M, Digital actuator for AB-QM DN 40-100
003Z8540
Danfoss

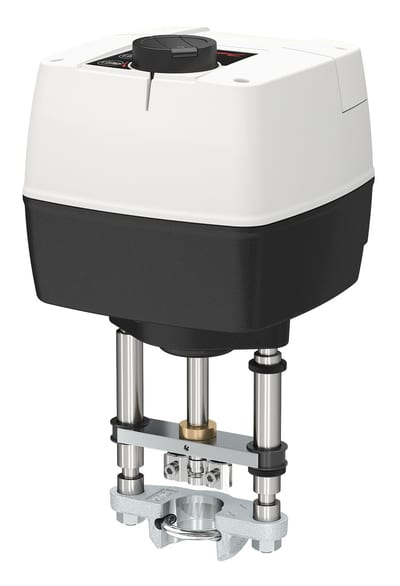

Danfoss NovoCon L — NovoCon L, Digital actuator for AB-QM DN 125-150
