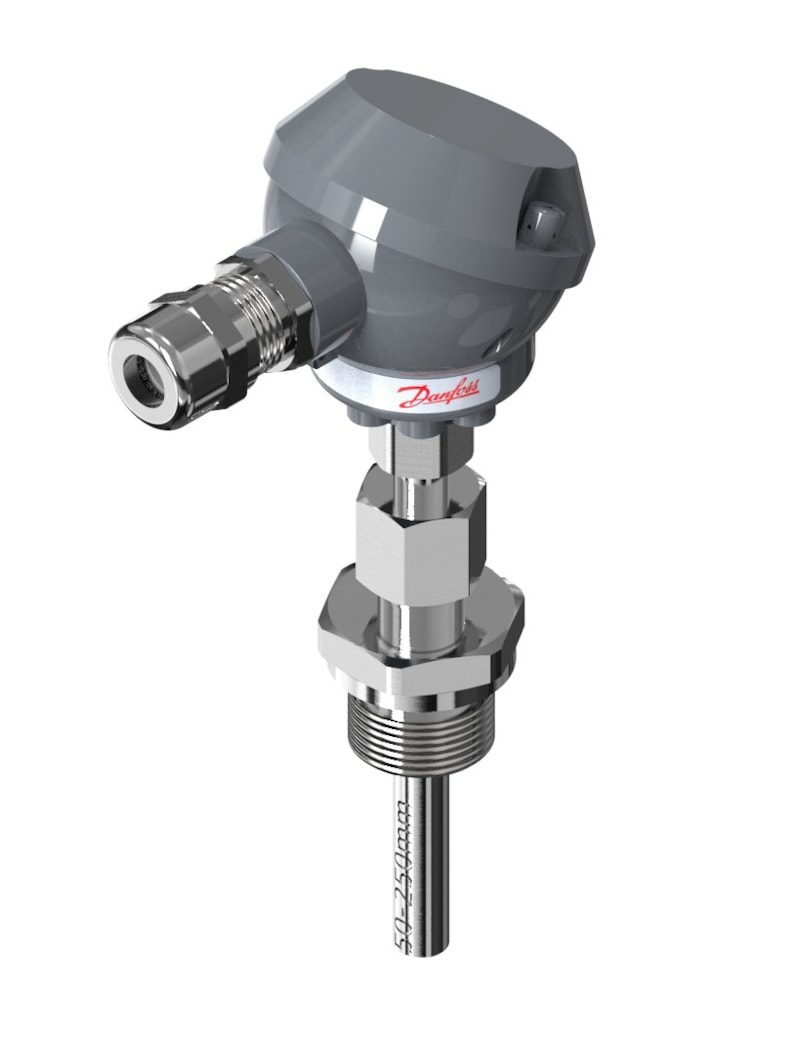

Danfoss MBT 5252 temperature sensor with exchangeable insert, Pt 100 100 ohm, 250 mm insertion, G 1/2 process connection (code 084Z7100)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5252 heavy-duty temperature sensor with exchangeable measuring insert, code 084Z7100 (type designation MBT 5252-0100-0250-1F02-0000). Insertion RTD for cooling water, lubricating and hydraulic oil and refrigeration plant in general industry and marine installations; the replaceable insert allows the element to be changed without breaking the process seal. Standardized Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 250 mm; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless-steel protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Type B mini connection head; IP65 enclosure per IEC 60529. CE marked.
Specifications
- Part number
- 084Z7100
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 250 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5252 insertion sensor. Confirm insertion length (250 mm), process thread (G 1/2) and element (Pt 100) match the pocket and controller input. The measuring insert is field-replaceable.
Standards
- EN 60751
- ISO 228-1-A
- IEC 60529
Approvals
