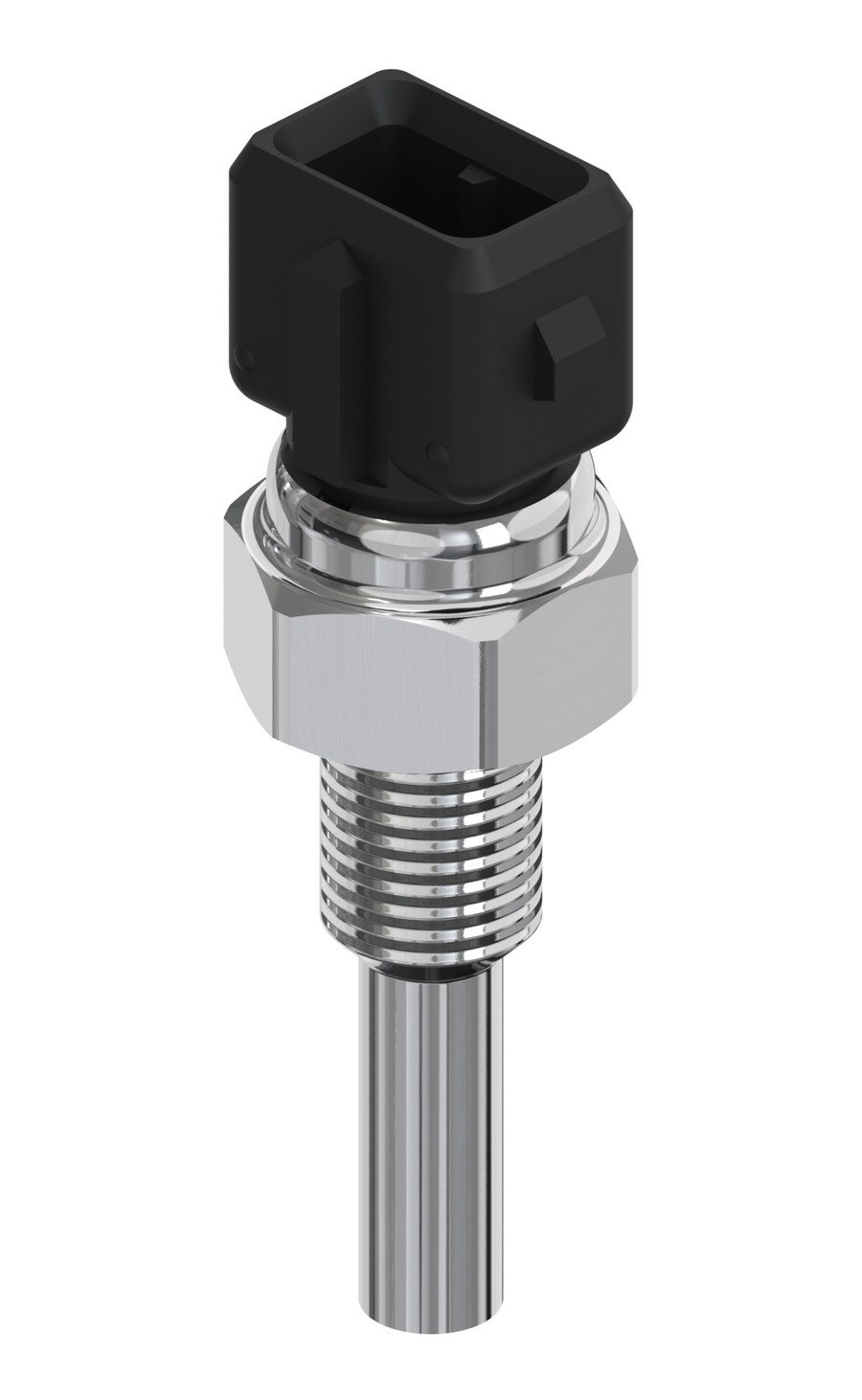

Danfoss MBT 3270 temperature sensor, Pt 1000 platinum resistance, 32 mm, M 10X1 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 temperature sensor (type designation MBT 3270-02001-032-30300-000), code 084Z2311. Sensor element Pt 1000 platinum resistance (1000 ohm at 0 C), Class B per EN 60751. Insertion length 32 mm insertion; M 10x1 male (ISO 965) process connection; AISI 303 stainless steel. Measuring range -50 to +150 C (-58 to +302 F); output Ohm (resistance). Electrical connection: AMP Junior Power Timer, 2-pin. Enclosure IP67 per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3270 (temperature sensor)
- Type designation
- MBT 3270-02001-032-30300-000
- Code number
- 084Z2311
- Sensor element
- Pt 1000 platinum resistance (1000 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 32 mm insertion
- Process connection
- M 10x1 male (ISO 965)
- Protection tube
- AISI 303 stainless steel, 6.5 mm diameter
- Temperature range
- -50 to +150 C (-58 to +302 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- AMP Junior Power Timer, 2-pin
- Enclosure rating
- IP67 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.024 kg
- Approvals
- CE
- EAN
- 5702428889285
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 303
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.26 in
- Insertion length [mm]
- 32 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- AISI 303
- Process connection size
- 10x1
- Process connection standard
- ISO 965
- Process connection type
- M
- Protection tube diameter [in]
- 0.256 in
- Protection tube diameter [mm]
- 6.5 mm
- Protection tube material
- AISI 303
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 32 mm insertion
- Material
- AISI 303 stainless steel
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +150 C (-58 to +302 F)
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 temperature sensor. Confirm insertion length (32 mm insertion), process thread (M 10x1) and element (Pt 1000 platinum resistance) match the pocket and controller input.
Product Documentation
More from Danfoss
Danfoss

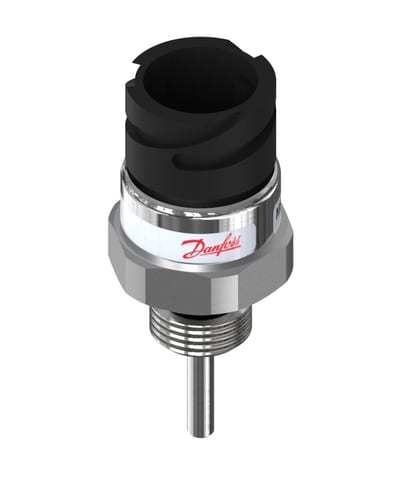

Danfoss MBT 3270 temperature sensor, NTC thermistor, 2020 ohm, 30 mm, M 16X1.5 process connection
084Z2340
Danfoss

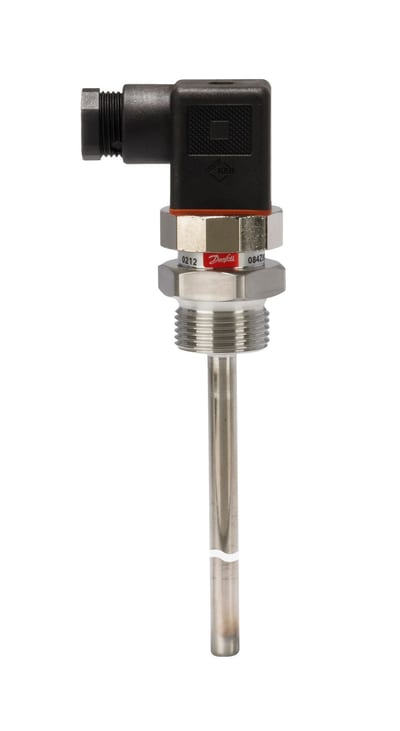

Danfoss MBT 5250 temperature sensor, Pt 100 platinum resistance, 40 mm, M 14X1.5 process connection
084Z2350
Danfoss

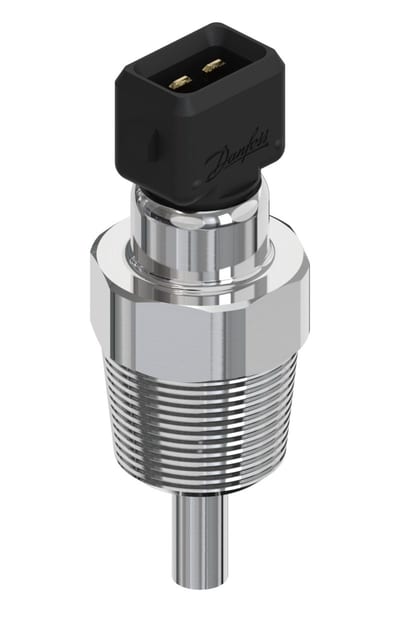

Danfoss MBT 3270 temperature sensor, NTC thermistor, 3000 ohm, 30 mm, NPTF 1/2-14 process connection
