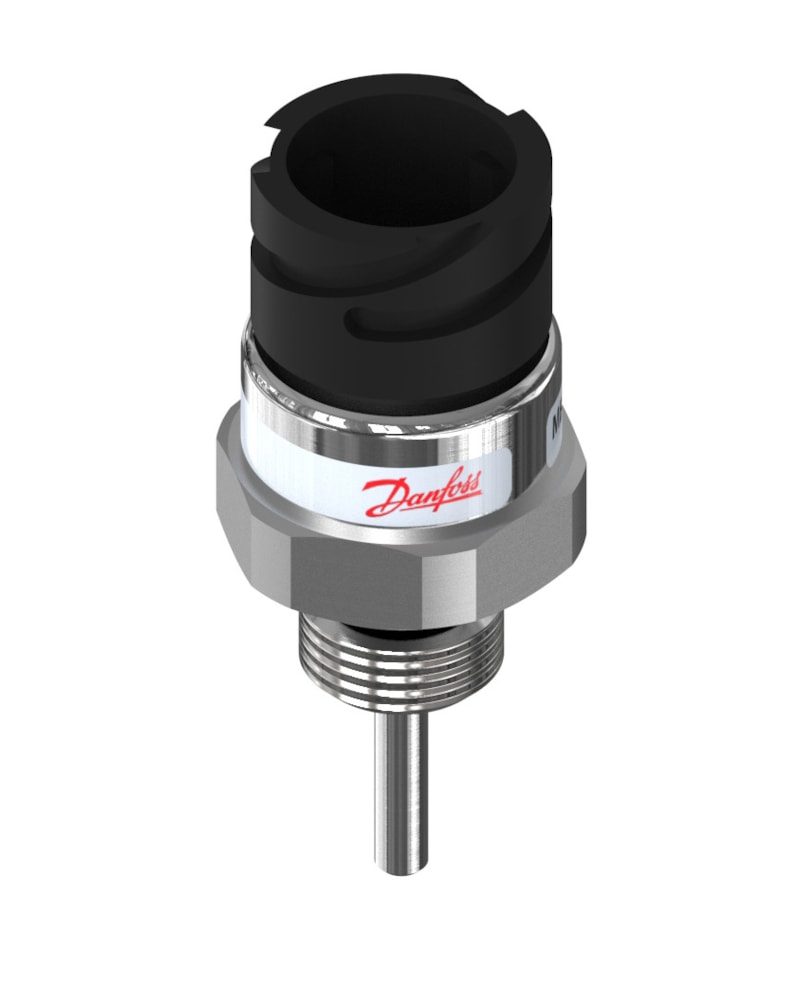

Danfoss MBT 3270 temperature sensor, NTC thermistor, 2020 ohm, 30 mm, M 16X1.5 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 temperature sensor (type designation MBT 3270-66182-030-50G00-000), code 084Z2340. Sensor element NTC thermistor, 2020 ohm, +/-1%. Insertion length 30 mm insertion; M 16x1.5 male (ISO 6149-2) process connection; AISI 316 Ti stainless steel. Measuring range -40 to +135 C (-40 to +275 F); output Ohm (resistance). Electrical connection: Bayonet, 4-pin (DIN 72585-1), male. Enclosure IP54 per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3270 (temperature sensor)
- Type designation
- MBT 3270-66182-030-50G00-000
- Code number
- 084Z2340
- Sensor element
- NTC thermistor, 2020 ohm
- Tolerance
- +/-1%
- Insertion length
- 30 mm insertion
- Process connection
- M 16x1.5 male (ISO 6149-2)
- Protection tube
- AISI 316 Ti stainless steel, 4.2 mm diameter
- Temperature range
- -40 to +135 C (-40 to +275 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Bayonet, 4-pin (DIN 72585-1), male
- Enclosure rating
- IP54 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.058 kg
- Approvals
- CE
- EAN
- 5702428910309
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 4 pin
- Electrical connection standard
- DIN 72585-1
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.18 in
- Insertion length [mm]
- 30 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 135 °C
- Measuring range [°C] [min]
- -40 °C
- Measuring range [°F] [max]
- 275 °F
- Measuring range [°F] [min]
- -40 °F
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 16x1.5
- Process connection standard
- ISO 6149-2
- Process connection type
- M
- Protection tube diameter [in]
- 0.165 in
- Protection tube diameter [mm]
- 4.2 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 2020 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element tolerance
- ± 1%
- Sensor element type
- NTC
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 135 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 275 °F
- Temperature range [°F] [min]
- -40 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 30 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 6149-2
- Temperature Range
- -40 to +135 C (-40 to +275 F)
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 temperature sensor. Confirm insertion length (30 mm insertion), process thread (M 16x1.5) and element (NTC thermistor, 2020 ohm) match the pocket and controller input.
