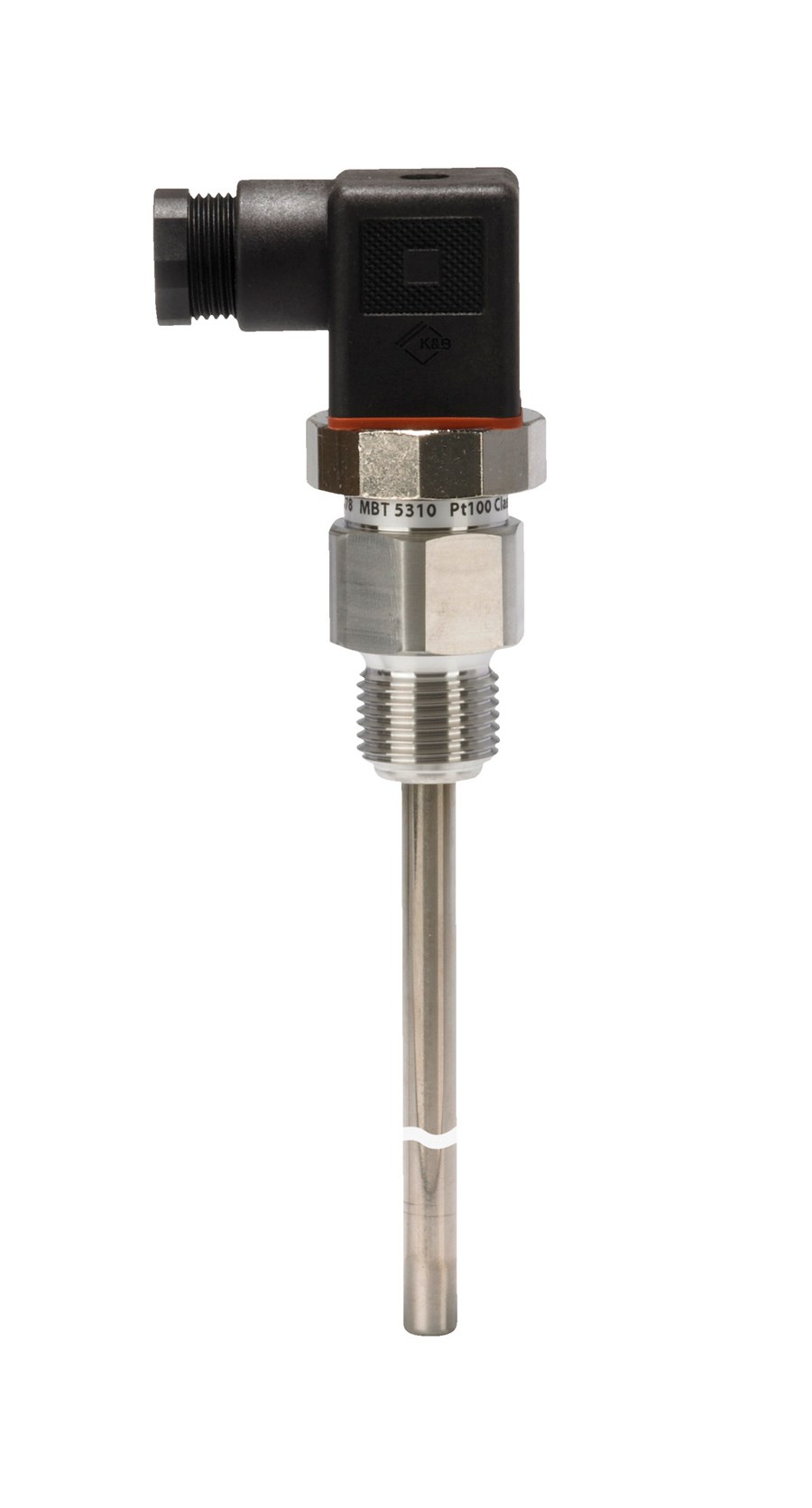

Danfoss MBT 5310 temperature sensor, Pt 100 platinum resistance, 72-84 mm, G 1/2 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5310 temperature sensor (type designation MBT 5310-00-084-000), code 084Z3127. Sensor element Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 72-84 mm adjustable insertion; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless steel. Measuring range -50 to +200 C (-58 to +392 F); output Ohm (resistance). Electrical connection: Angular connector, Pg 11 (EN 175301-803-A). Enclosure IP65 per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 5310 (temperature sensor)
- Type designation
- MBT 5310-00-084-000
- Code number
- 084Z3127
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 72-84 mm adjustable insertion
- Process connection
- G 1/2 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 8 mm diameter
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Angular connector, Pg 11 (EN 175301-803-A)
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 20 pc
- Net weight
- 0.197 kg
- Approvals
- CE
- EAN
- 5702423279845
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 11
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in] [max]
- 3.31 in
- Insertion length [in] [min]
- 2.83 in
- Insertion length [mm] [max]
- 84 mm
- Insertion length [mm] [min]
- 72 mm
- Insertion type
- Variable
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 72-84 mm adjustable insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5310 temperature sensor. Confirm insertion length (72-84 mm adjustable insertion), process thread (G 1/2) and element (Pt 100 platinum resistance) match the pocket and controller input.
