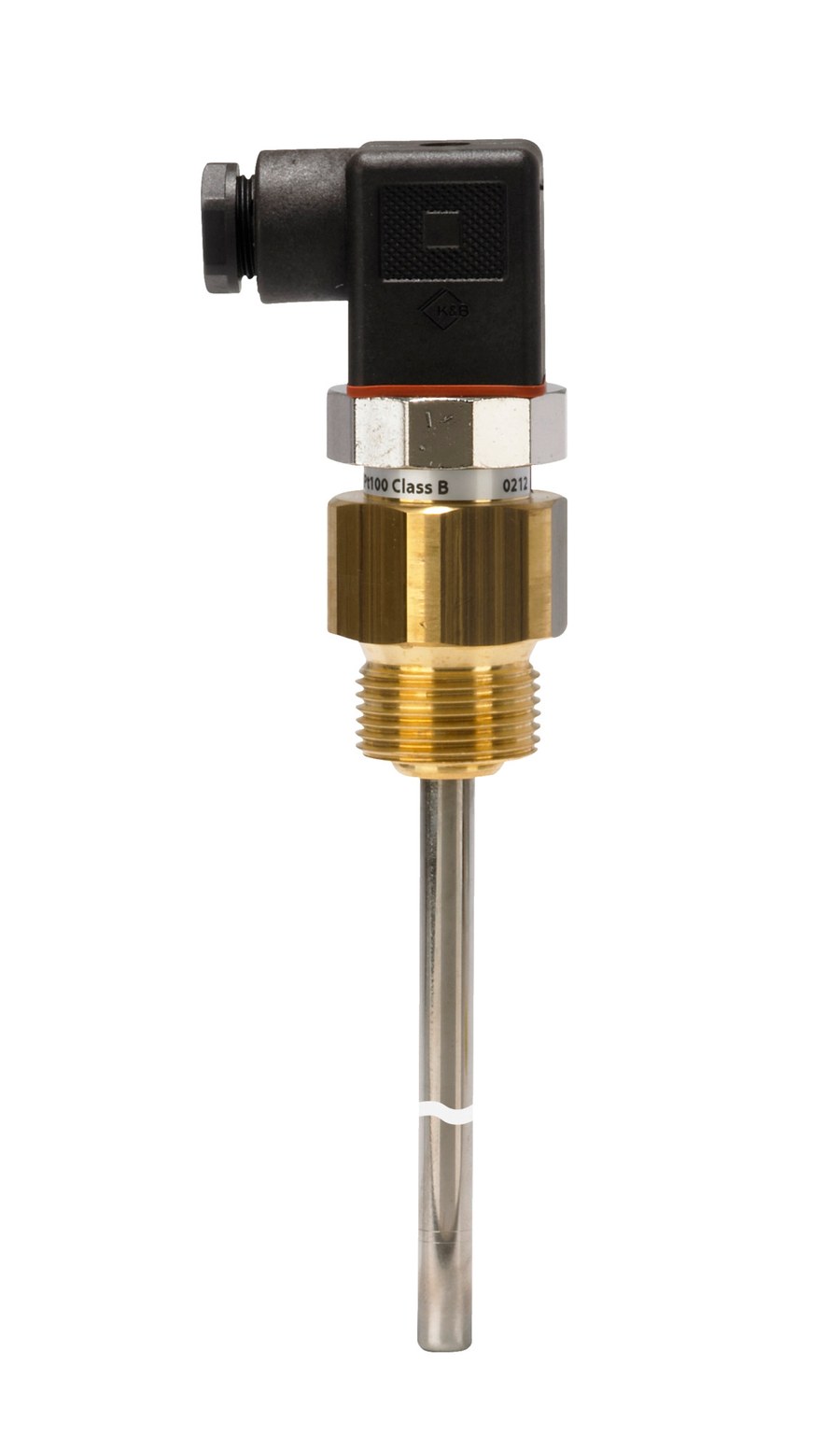

Danfoss MBT 5310 temperature sensor, Pt 100 platinum resistance, 40-55 mm, G 3/4 process connection (code 084Z3145)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5310 temperature sensor (type designation MBT 5310-00-055-130), code 084Z3145. Sensor element Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 40-55 mm adjustable insertion; G 3/4 male (ISO 228-1-A) process connection; AISI 316 Ti stainless steel. Measuring range -50 to +200 C (-58 to +392 F); output Ohm (resistance). Electrical connection: Angular connector, Pg 9 (EN 175301-803-A). Enclosure IP65 per IEC 60529. CE marked.
Specifications
- Part number
- 084Z3145
- HS code
- 9025.19
- Material
- brass body, AISI 316 Ti tube
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 40-55 mm adjustable insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5310 temperature sensor. Confirm insertion length (40-55 mm adjustable insertion), process thread (G 3/4) and element (Pt 100 platinum resistance) match the pocket and controller input.
Standards
- EN 60751
- ISO 228-1-A
- EN 175301-803-A
- IEC 60529
Approvals
