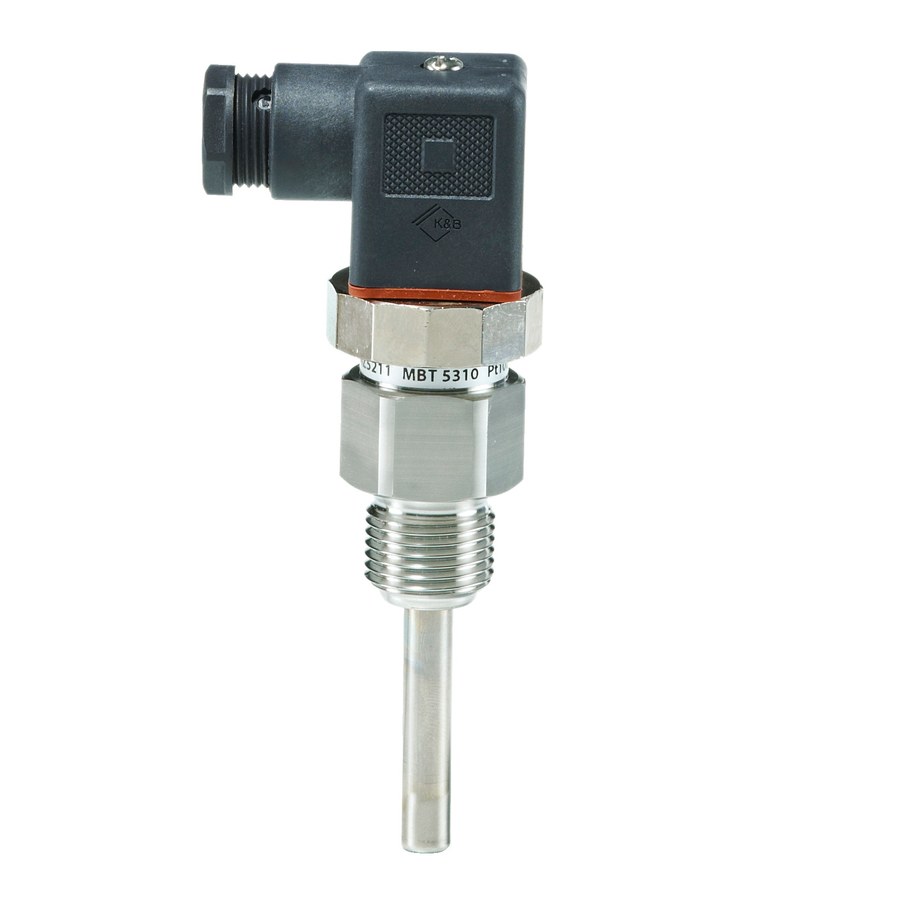

Danfoss MBT 5310 temperature sensor, Pt 100 100 ohm, 279-291 mm adjustable insertion, G 1/2 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5310 adjustable-insertion temperature sensor, code 084Z2258 (type designation MBT 5310-00-291-000). Insertion RTD with a sliding compression gland that lets the insertion depth be set anywhere between 279 and 291 mm, for cooling water, oil and refrigeration plant in general industry and marine installations. Standardized Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless-steel protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Angular connector (form A) per EN 175301-803-A, Pg 11; IP65 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 5310 (adjustable-insertion temperature sensor)
- Type designation
- MBT 5310-00-291-000
- Code number
- 084Z2258
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 279-291 mm (variable, adjustable insertion)
- Process connection
- G 1/2 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 8 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Angular connector (form A) per EN 175301-803-A, Pg 11
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 20 pc
- Net weight
- 0.239 kg
- Approvals
- CE
- EAN
- 5702428843768
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 11
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in] [max]
- 11.5 in
- Insertion length [in] [min]
- 11 in
- Insertion length [mm] [max]
- 291 mm
- Insertion length [mm] [min]
- 279 mm
- Insertion type
- Variable
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 279-291 mm insertion (adjustable)
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5310 adjustable-insertion sensor. Set the insertion depth within the 279-291 mm range at the compression gland. Confirm process thread (G 1/2) and element (Pt 100) match the pocket and controller input.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 3252 temperature sensor with exchangeable insert, Pt 100 100 ohm, 50 mm insertion, G 1/2 process connection
084Z2266
Danfoss
Danfoss MBT 3252 temperature sensor with exchangeable insert, Pt 100 100 ohm, 100 mm insertion, G 1/2 process connection
084Z2267
Danfoss
Danfoss MBT 3252 temperature sensor with exchangeable insert, Pt 100 100 ohm, 150 mm insertion, G 1/2 process connection
084Z2268
Danfoss
Danfoss MBT 3252 temperature sensor with exchangeable insert, Pt 100 100 ohm, 200 mm insertion, G 1/2 process connection
084Z2269
Danfoss
Danfoss MBT 3252 temperature sensor with exchangeable insert, Pt 100 100 ohm, 250 mm insertion, G 1/2 process connection
084Z2270
Danfoss
Danfoss MBT 3252 temperature transmitter, Pt 100, 50 mm insertion, G 1/2, 4-20 mA output
084Z2271
Danfoss

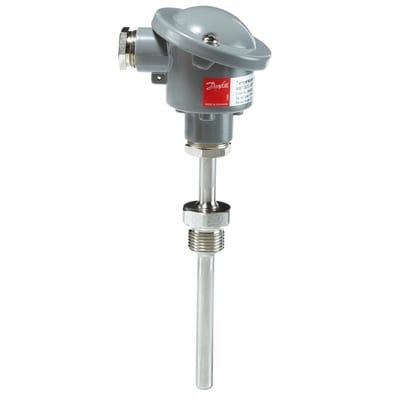

Danfoss MBT 3252 temperature transmitter, Pt 100, 100 mm insertion, G 1/2, 4-20 mA output
