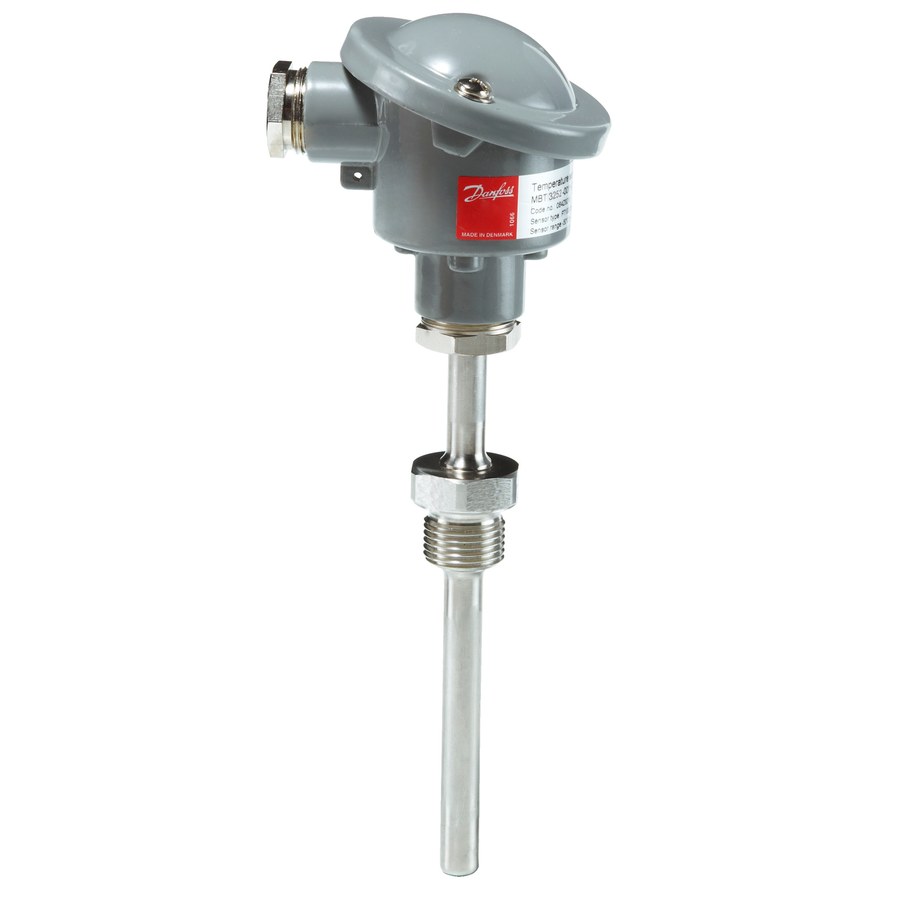

Danfoss MBT 3252 temperature transmitter, Pt 100, 100 mm insertion, G 1/2, 4-20 mA output
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3252 insertion temperature transmitter, code 084Z2272 (type designation MBT 3252-0011-0100-0200-G110). Integrated Pt 100 sensor and 2-wire loop-powered transmitter delivering a 4-20 mA output proportional to the measuring range, for cooling water, oil and refrigeration plant in general industry and marine installations. The measuring insert is exchangeable without breaking the process seal. Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 100 mm; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti protection tube, 10 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); 8-35 V DC supply; Type B connection head, Pg 16; IP65 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3252 (insertion temperature transmitter, exchangeable insert)
- Type designation
- MBT 3252-0011-0100-0200-G110
- Code number
- 084Z2272
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 100 mm
- Process connection
- G 1/2 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 10 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- 4-20 mA (2-wire, loop-powered)
- Supply voltage
- 8-35 V DC
- Electrical connection
- Type B connection head, Pg 16
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 8 pc
- Net weight
- 0.401 kg
- Approvals
- CE
- EAN
- 5702428849463
- Product group
- Sensors
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection standard
- ISO 228
- Connection type
- G
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 1.97 in
- Extension length [mm]
- 50 mm
- Insertion length [in]
- 3.94 in
- Insertion length [mm]
- 100 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 100 °C
- Measuring range [°C] [min]
- 0 °C
- Measuring range [°F] [max]
- 212 °F
- Measuring range [°F] [min]
- 32 °F
- Number of terminals [pcs]
- 3 pc
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.394 in
- Protection tube diameter [mm]
- 10 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Supply voltage [V] DC [max]
- 35 V
- Supply voltage [V] DC [min]
- 8 V
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Transmitter setting range [°C] [max]
- 100 °C
- Transmitter setting range [°C] [min]
- 0 °C
- Transmitter setting range [°F] [max]
- 212 °F
- Transmitter setting range [°F] [min]
- 32 °F
- Transmitter type
- Standard
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 100 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3252 transmitter (4-20 mA). Confirm the measuring range (-50 to +200 C) matches the receiving controller/PLC scaling and that an 8-35 V DC loop supply is available. Insertion 100 mm, G 1/2 thread; measuring insert is field-replaceable.
