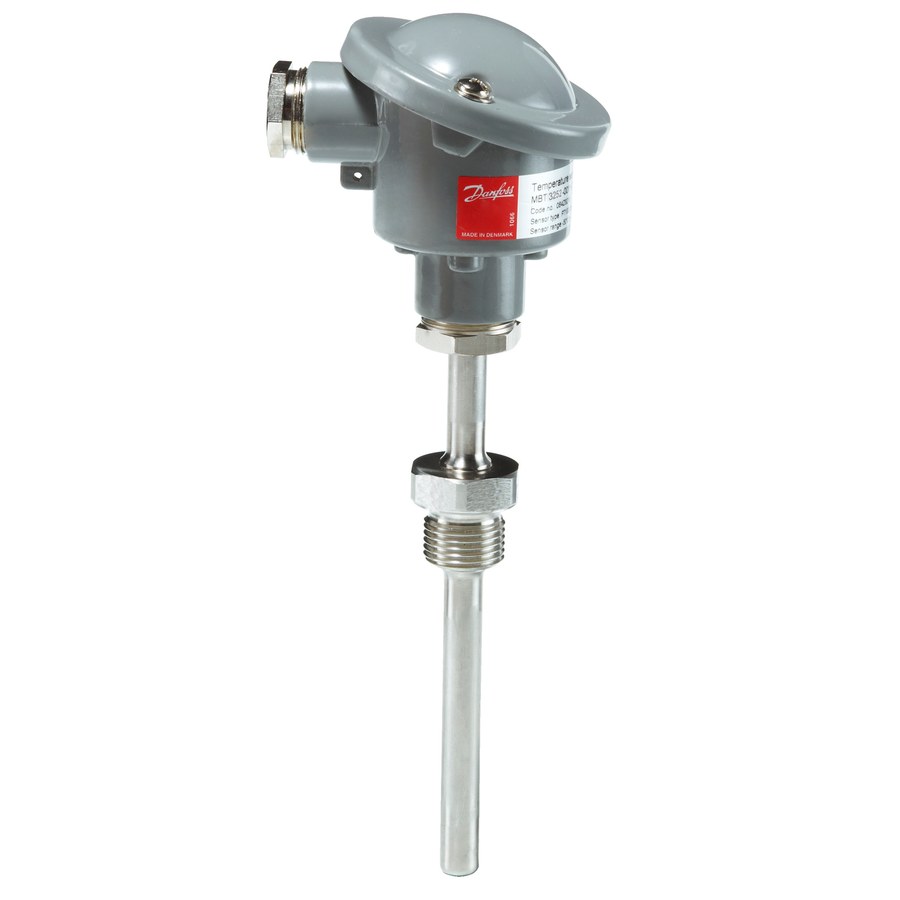

Danfoss MBT 3252 temperature transmitter, Pt 100, 150 mm insertion, G 1/2, 4-20 mA output (code 084Z2273)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 3252 insertion temperature transmitter, code 084Z2273 (type designation MBT 3252-0011-0150-0200-G110). Integrated Pt 100 sensor and 2-wire loop-powered transmitter delivering a 4-20 mA output proportional to the measuring range, for cooling water, oil and refrigeration plant in general industry and marine installations. The measuring insert is exchangeable without breaking the process seal. Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 150 mm; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti protection tube, 10 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); 8-35 V DC supply; Type B connection head, Pg 16; IP65 enclosure per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2273
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 150 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 3252 transmitter (4-20 mA). Confirm the measuring range (-50 to +200 C) matches the receiving controller/PLC scaling and that an 8-35 V DC loop supply is available. Insertion 150 mm, G 1/2 thread; measuring insert is field-replaceable.
