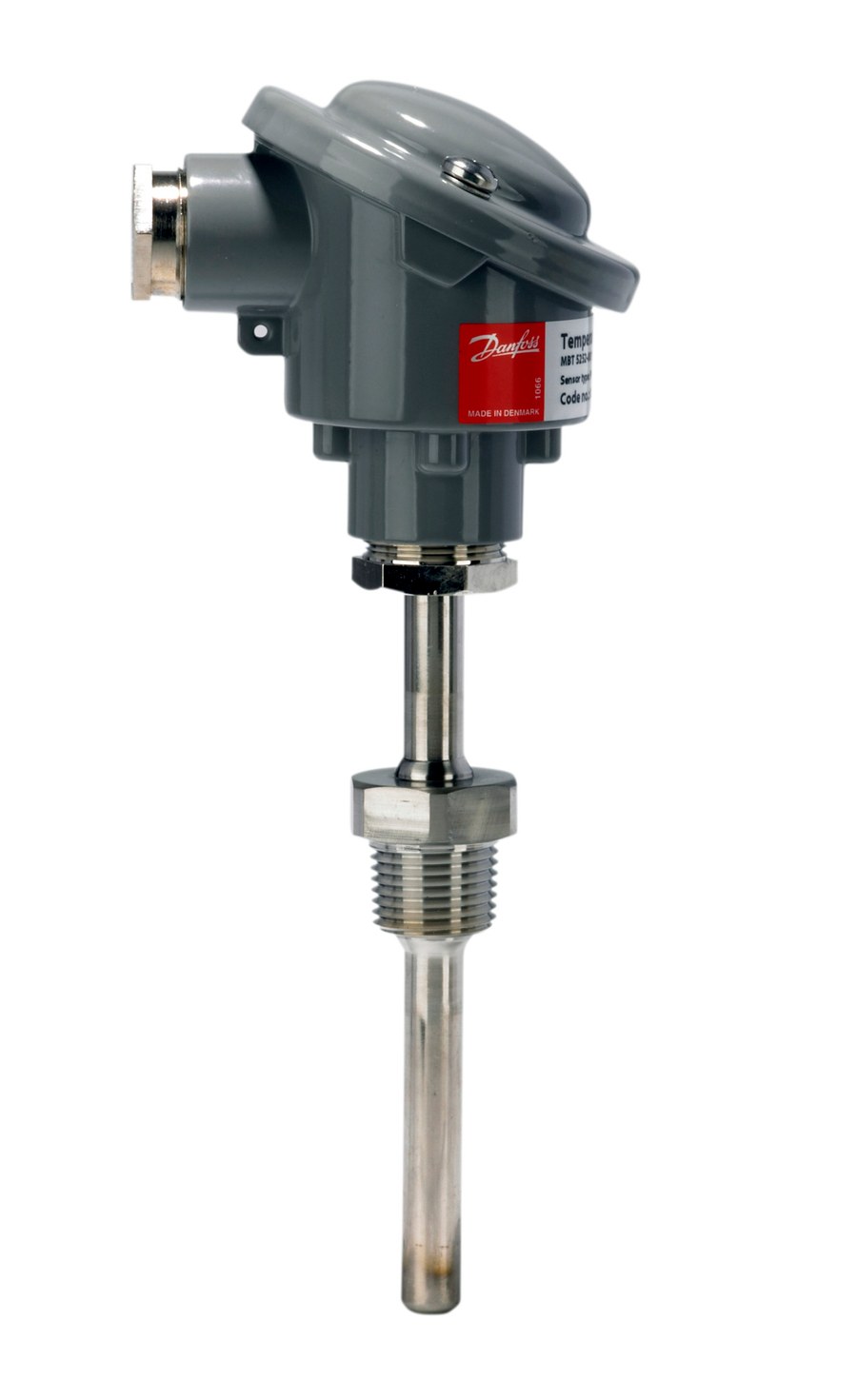

Danfoss MBT 5252 temperature transmitter, Pt 100 platinum resistance, 50 mm, G 1/2 process connection (code 084Z2420)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5252 temperature transmitter (type designation MBT 5252-0000-0050-0200-L415), code 084Z2420. Sensor element Pt 100 platinum resistance (100 ohm at 0 C) with built-in 4-20 mA transmitter, Class B per EN 60751. Insertion length 50 mm insertion; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless steel. Measuring range -50 to +200 C (-58 to +392 F); output 4-20 mA (2-wire). Electrical connection: Type B, Pg 16. Enclosure IP65 per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2420
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 50 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5252 temperature transmitter. Confirm insertion length (50 mm insertion), process thread (G 1/2) and element (Pt 100 platinum resistance) match the pocket and controller input.
Standards
- EN 60751
- ISO 228-1-A
- IEC 60529
Approvals
