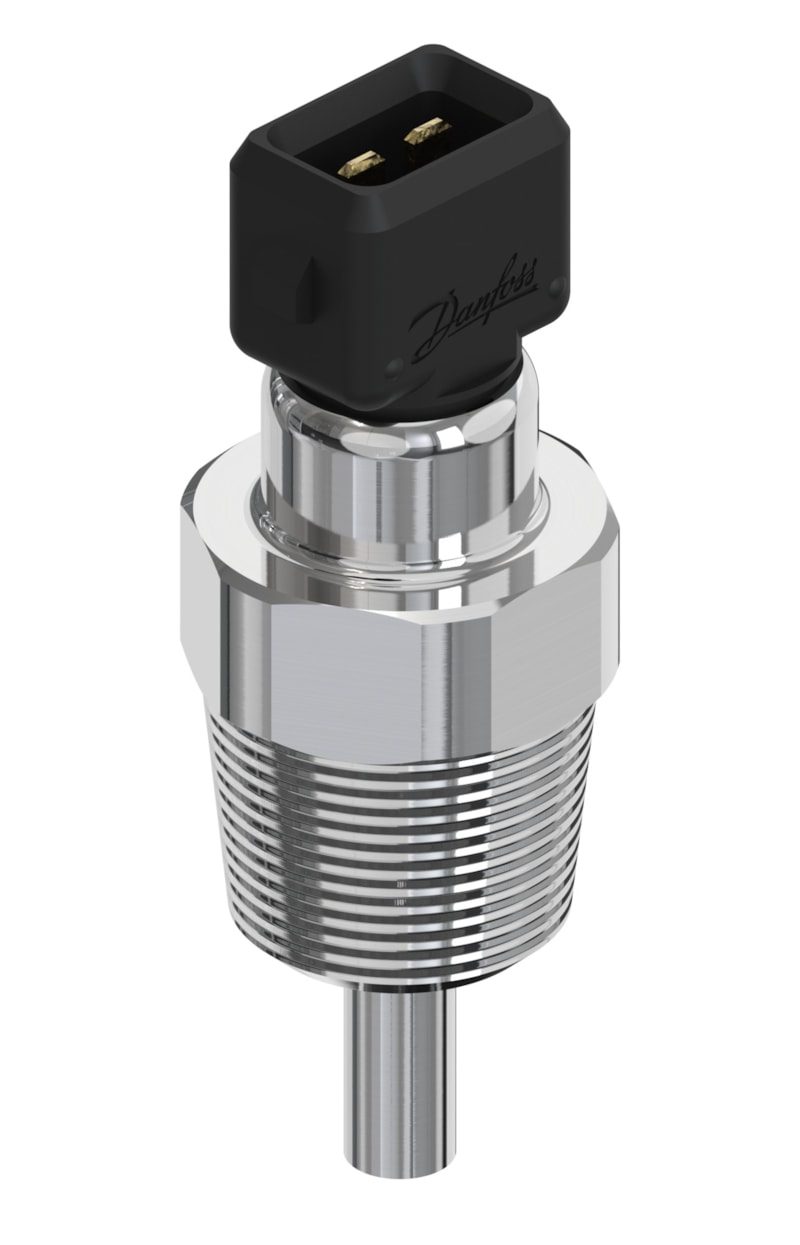

Danfoss MBT 3270 temperature sensor, NTC thermistor, 3000 ohm, 30 mm, NPTF 1/2-14 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 temperature sensor (type designation MBT 3270-09191-030-G0300), code 084Z2360. Sensor element NTC thermistor, 3000 ohm, +/-1%. Insertion length 30 mm insertion; NPTF 1/2-14 male (ANSI/ASME B1.20.3) process connection; AISI 316 Ti stainless steel. Measuring range -50 to +150 C (-58 to +302 F); output Ohm (resistance). Electrical connection: AMP Junior Power Timer, 2-pin. Enclosure IP67 per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3270 (temperature sensor)
- Type designation
- MBT 3270-09191-030-G0300
- Code number
- 084Z2360
- Sensor element
- NTC thermistor, 3000 ohm
- Tolerance
- +/-1%
- Insertion length
- 30 mm insertion
- Process connection
- NPTF 1/2-14 male (ANSI/ASME B1.20.3)
- Protection tube
- AISI 316 Ti stainless steel, 6 mm diameter
- Temperature range
- -50 to +150 C (-58 to +302 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- AMP Junior Power Timer, 2-pin
- Enclosure rating
- IP67 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.07 kg
- Approvals
- CE
- EAN
- 5702428922432
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection type
- NPTF
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.18 in
- Insertion length [mm]
- 30 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 1/2-14
- Process connection standard
- ANSI/ASME B1.20.1
- Process connection type
- NPTF
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 3000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element tolerance
- ± 1%
- Sensor element type
- NTC
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 30 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ANSI/ASME B1.20.3
- Temperature Range
- -50 to +150 C (-58 to +302 F)
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 temperature sensor. Confirm insertion length (30 mm insertion), process thread (NPTF 1/2-14) and element (NTC thermistor, 3000 ohm) match the pocket and controller input.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 3250 temperature sensor, Pt 1000 platinum resistance, 100 mm, G 1/2 process connection
084Z2410
Danfoss
Danfoss MBT 5252 temperature transmitter, Pt 100 platinum resistance, 50 mm, G 1/2 process connection
084Z2420
Danfoss
Danfoss MBT 3250 temperature sensor, Pt 100 platinum resistance, 100 mm, G 1/2 process connection
084Z2450
Danfoss
Danfoss MBT 5250 temperature sensor, Pt 1000 platinum resistance, 100 mm, M 18X1.5 process connection
084Z3107
Danfoss
Danfoss MBT 5310 temperature sensor, Pt 100 platinum resistance, 72-84 mm, G 1/2 process connection
084Z3127
Danfoss
Danfoss MBT 5116 temperature sensor, Pt 100 platinum resistance, 100 mm, M 33X2 process connection
084Z3140
Danfoss
Danfoss MBT 5310 temperature sensor, Pt 100 platinum resistance, 40-55 mm, G 3/4 process connection
084Z3145
Danfoss
Danfoss MBT 3270 temperature sensor, Pt 100 platinum resistance, 40 mm, R 1/4 process connection
084Z3190
Technical guides
- Temperature Sensor Finder — Pt 100 / Pt 1000 / NTC / Thermocouple, Danfoss MBT 5250 / 5252 / 5560 / 3560 / 153, Siemens SITRANS TS500 by Insertion Length, Process Connection and Output
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
Catalogue entry last verified: 2026-09-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 084Z2360?
- 084Z2360 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 084Z2360.
- What is the HS code for 084Z2360?
- The customs tariff (HS) code for 084Z2360 is 9025.19.
- Who manufactures 084Z2360?
- 084Z2360 is a Danfoss product in the Sensors & Instrumentation range.
- Is a datasheet available for 084Z2360?
- Yes — the 084Z2360 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 084Z2360?
- The minimum order quantity is 1.
- Is 084Z2360 available?
- Yes — 084Z2360 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
