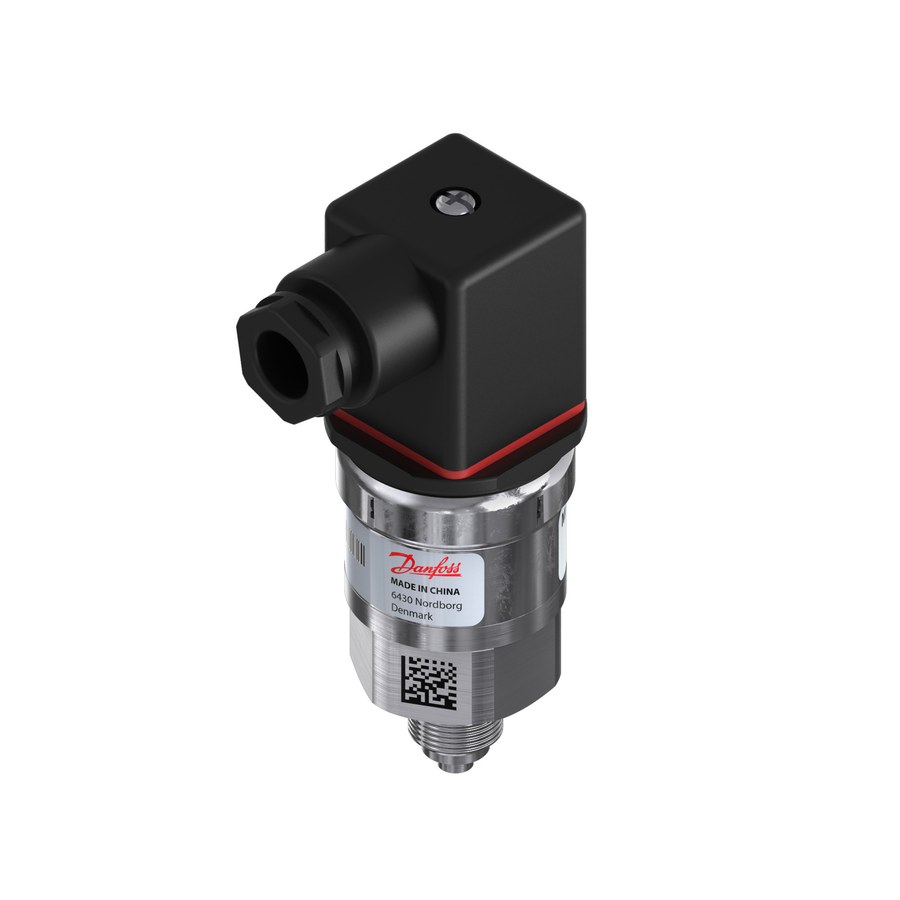

Danfoss MBS 3000 Pressure Transmitter 0-400 bar 4-20MA G1/4

Danfoss MBS 3000 compact pressure transmitter for high-pressure industrial applications. 0-400 bar gauge pressure with 4-20mA output signal.

Type

Pressure Transmitter

Series

MBS 3000

Pressure Range

0-400 bar (0-5800 PSI)

Output

4-20 mA

Supply Voltage

10-30 VDC

Accuracy

±0.5% FS (typical), ±1% FS (max)

Pressure Connection

G1/4 EN 837

Electrical Connection

DIN 43650-A Plug PG9

Response Time

<4ms

Overload

6x FS (max 1500 bar)

Enclosure

IP65

Ambient Temp

-40 to +85°C

Code number

060G1109

Product group

Sensors

Medium temperature range

-40 °C to 85 °C

Approval

ATEX; C UL US UL Recognized; CE

UL mark

Yes

CE mark

Yes

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.159 kg

EAN

5702423057702

Accuracy, max.

1.00 %

Accuracy, typical

0.5 %

Adj. zero point and span

No

Compensated temp. range

0 °C to 80 °C

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Flush diaphragm

No

High Clipping Level

22.40

In scope of WEEE

Yes

Intrinsically safe

No

Low Clipping level

3.60

Negative / common

Pin 2

Non-linearity BFSL

0.50 %

Output signal

Current, 4 mA to 20 mA

Overload pressure max.

1500.0 bar

Positive / supply

Pin 1

Classification-society approval

not listed in the manufacturer approval data for this code.

Material

316L stainless steel wetted parts

Temperature Range

-40°C to +85°C (electronics)

Classification / Approval

CE, EAC, UL, ATEX II 1G Ex ia IIC T4 Ga (Ex models), IECEx

HS Code

9026.20
