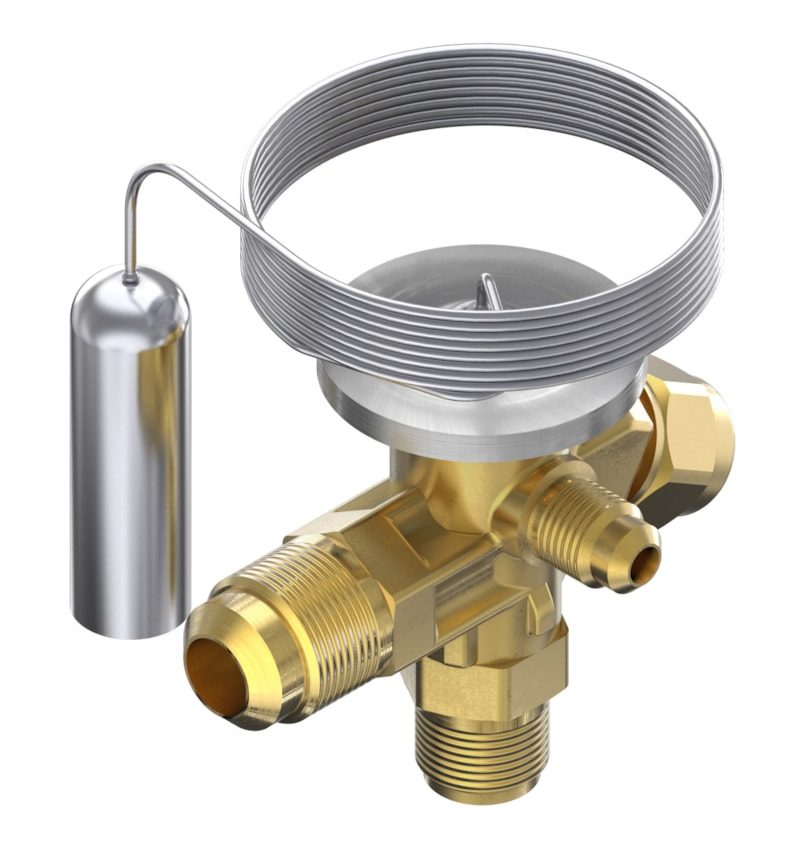

Danfoss TEX 2 Thermostatic Expansion Valve R22 3/8"X1/2" Flare
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TEX 2 (TE 2) thermostatic expansion valve for R22 refrigerant. External equalization, without MOP. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Type
- Thermostatic Expansion Valve
- Series
- TEX 2 / TE 2
- Refrigerant
- R22
- Inlet
- 3/8" Flare
- Outlet
- 1/2" Flare
- Equalization
- 1/4" External
- Capillary
- 5 ft (1.5m)
- Temp Range
- -40°F to +50°F (-40 to +10°C)
- Max Working Pressure
- 34 bar (500 PSIG)
- MOP
- Without
- Orifice
- Replaceable (sold separately)
- Capacity
- 1/4 to 5.5 tons (varies by orifice)
- Code number
- 068Z3209
- Product group
- Expansion valves
- Direction
- Angleway
- Body material
- Brass
- Connection material
- Brass
- Inlet connection type
- Flare
- Inlet size
- 3/8 in
- Outlet connection type
- Flare
- Outlet size
- 1/2 in
- Temperature range
- -40 °C to 10 °C
- Fluid Group
- 2
- PED category
- Art. 4, par. 3
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.294 kg
- EAN
- 5702422117261
- Capillary tube length
- 1500 mm
- Equalization connection type
- Flare
- Equalization size
- 1/4 in
- Flow direction
- Bi-flow with orifice 01-05
- Flow direction indicator
- Embossed 1-way arrow
- Identical product
- 068Z3238
- Parts included
- Bulb strap
- Pressure equalization
- Externally equalized
- Rated cap. cond. Range N [IMP]
- OS=10.8 °F; tcond=100 °F; tevap=40 °F; tliq=98 °F
- Static Superheat (SS)
- 4.00 °C
- Superheat setting
- Adjustable
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Classification / Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- HS Code
- 8481.80
Compatibility & Fitment
Refrigerant compatibility listed. Verify with your system spec.
