Danfoss

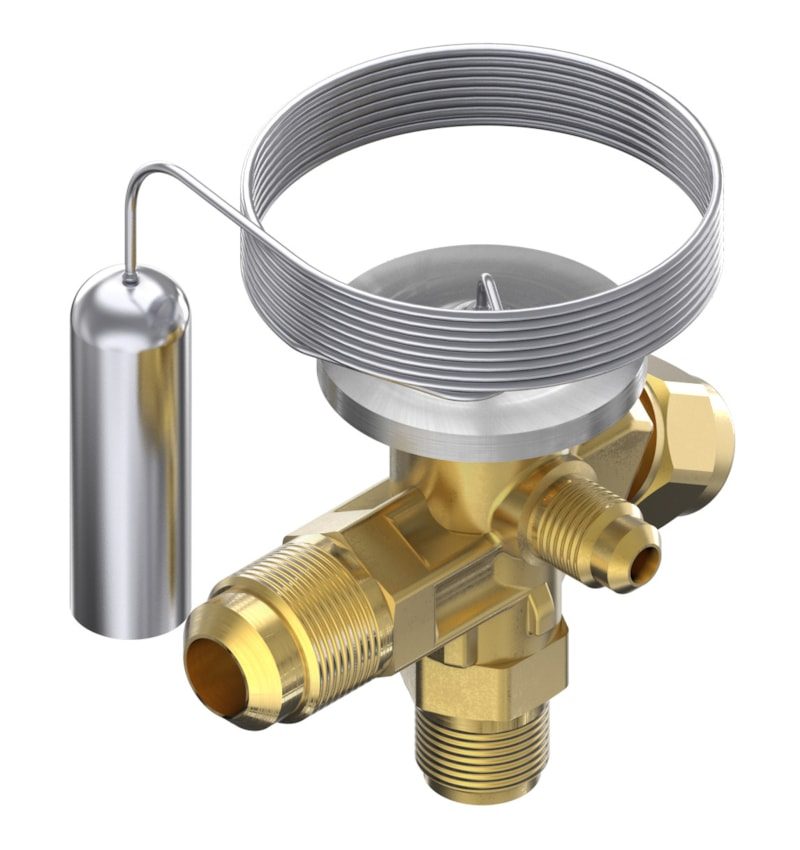

Danfoss TEZ 2 Thermostatic Expansion Valve R407C 3/8"X1/2" Flare
Part number068Z3501Item numberDAN-068Z3501EAN / GTIN5702428052832HS code8481.80
CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
HVAC & Refrigeration
Expansion Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TEZ 2 (TE 2) thermostatic expansion valve for R407C refrigerant. External equalization, without MOP. Angleway body with flare connections. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Type
- Thermostatic Expansion Valve
- Series
- TEZ 2 / TE 2
- Refrigerant
- R407C
- Inlet
- 3/8" Flare
- Outlet
- 1/2" Flare
- Equalization
- External
- Capillary
- 1.5m
- Temp Range
- -40 to +10°C
- Max Working Pressure
- 34 bar
- MOP
- Without
- Static Superheat
- 5°C
- Body
- Angleway, Brass
- Code number
- 068Z3501
- Product group
- Expansion valves
- Direction
- Angleway
- Connection material
- Brass
- Inlet connection type
- Flare
- Inlet size
- 3/8 in
- Outlet connection type
- Flare
- Outlet size
- 1/2 in
- Temperature range
- -40 °C to 10 °C
- Fluid Group
- 2
- PED category
- Art. 4, par. 3
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.294 kg
- EAN
- 5702428052832
- Capillary tube length
- 1500 mm
- Equalization connection type
- Flare
- Equalization size
- 1/4 in
- Flow direction
- Bi-flow with orifice 01-05
- Flow direction indicator
- Embossed 1-way arrow
- Identical product
- 068Z3653
- Parts included
- Bulb strap
- Pressure equalization
- Externally equalized
- Rated cap. cond. Range N [IMP]
- OS=10.8 °F; tcond=100 °F; tevap=40 °F; tliq=98 °F
- Superheat setting
- Adjustable
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Classification / Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- HS Code
- 8481.80
Compatibility & Fitment
Refrigerant compatibility listed. Verify with your system spec.
Not sure if it fits? Email sales@cballast.com with your equipment serial number or photos — we confirm fit before you order.
Product Documentation
Document preview: Danfoss 068Z3501 — OEM Product Page
More from Danfoss
Technical guides
- Expansion Valve Finder — Danfoss TE 2 / TE 5 / TE 12 / TE 20 / TE 55, TGE, TUA / TUB / TUBE, T2 / TS2, AKV and ETS Colibri by Refrigerant, Connection and Type
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
Catalogue entry last verified: 2026-08-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 068Z3501?
- 068Z3501 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 068Z3501.
- What is the HS code for 068Z3501?
- The customs tariff (HS) code for 068Z3501 is 8481.80.
- Who manufactures 068Z3501?
- 068Z3501 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 068Z3501?
- Yes — the 068Z3501 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 068Z3501?
- The minimum order quantity is 1.
- Is 068Z3501 available?
- Yes — 068Z3501 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
