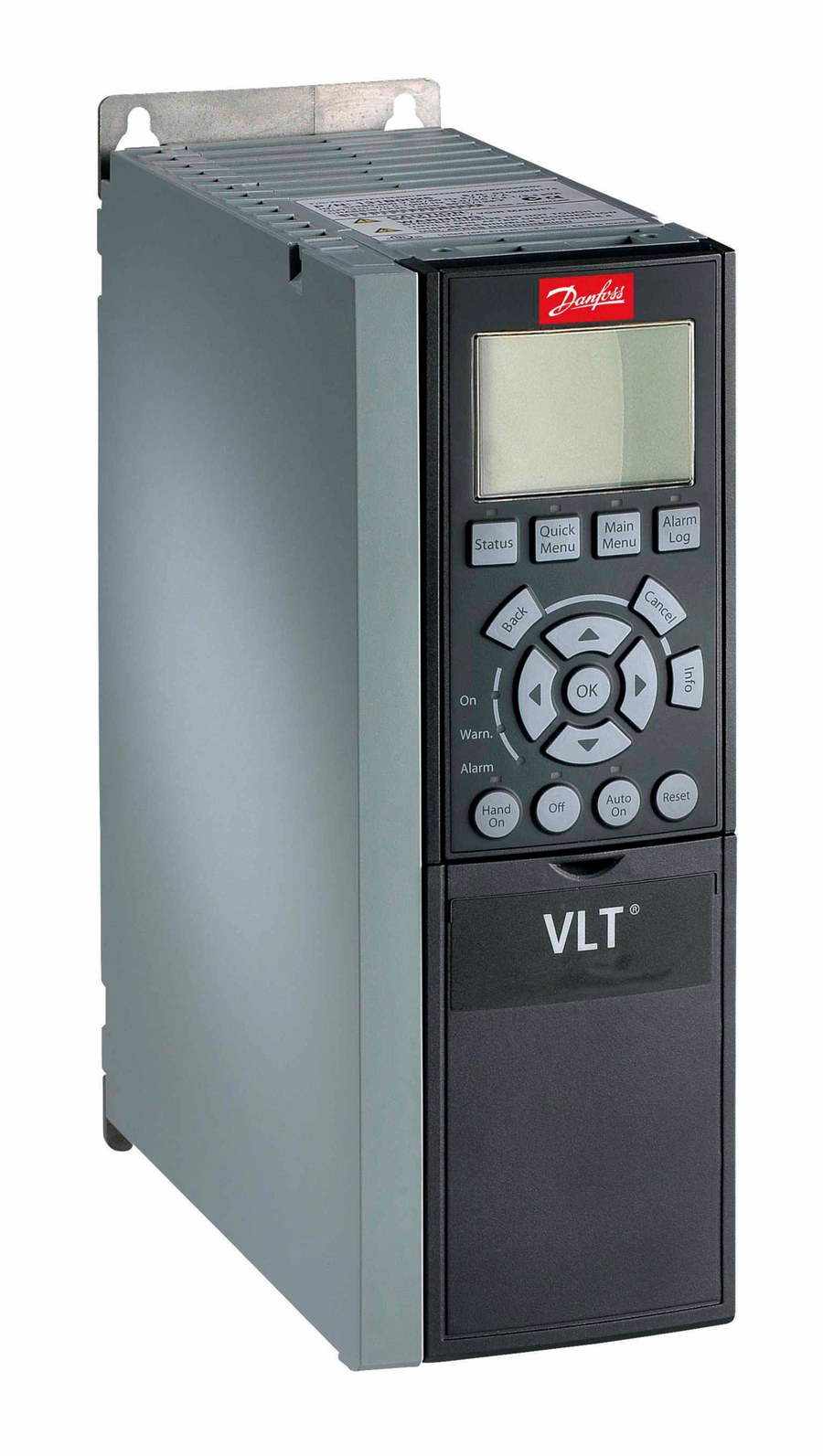

Danfoss FC-302 11kW
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss 131B0078 FC-302 11kW. Danfoss OEM. Danfoss vfds for industrial and marine service. Standard input/output.
Technical Specifications
- Material
- Sheet steel enclosure, IGBT power stage
- Temperature range
- -10°C to +50°C (derating above 40°C)
- Approval
- CE, UL, cUL, CSA, RCM, EAC, DNV, ABS, LR, BV, ClassNK, KR, RINA
- Standards
- IEC 61800-3, IEC 61800-5-1, EN 60034
- Approvals
- DNV, ABS, BV, LR
- HS code
- 8504.40
- MPN
- 131B0078
- Product Group
- FC-
- Series
- 302
- Power Rating
- P2K2
- Phase
- T
- Mains Voltage
- 5
- Enclosure
- E20
- RFI Filter
- H2
- Brake - Safe Stop
- X
- LCP
- G
- Coating PCB
- X
- Mains Option
- X
- Adaptation A
- X
- Adaptation B
- X
- Software Release
- SXXX
- Software Language Pack
- X
- A Option
- AX
- B Option
- BX
- C0 Option MCO
- CX
- C1 Option
- X
- C Option Software
- XX
- D Option
- DX
- Frame Size
- A2
- Product Catalog
- NO_VIEW
- Power 160% (HO) [KW]
- 2.2
- Power Loss HO [W]
- 88
- kVA
- 3.88
- Continuous Current (HO) [A]
- 5.6
- Intermittent Current (HO) [A]
- 8.96
- Height [mm]
- 268,0
- Width w/ no C options [mm]
- 90,0
- Width w/ two C options [mm]
- 150,0
- Depth [mm]
- 205,0
- Depth with Option A/B [mm]
- 220,0
- ECCN EU
- Y901
- ECCN US
- 3A999.a
- Product View (Switch)
- GLBL
Standards & Compliance
- Material
- Sheet steel enclosure, IGBT power stage
- Temperature Range
- -10°C to +50°C (derating above 40°C)
- Classification / Approval
- CE, UL, cUL, CSA, RCM, EAC, DNV, ABS, LR, BV, ClassNK, KR, RINA
- HS Code
- 8504.40
Compatibility & Fitment
Standard input/output. Check kW rating and voltage to match your application.
