Danfoss EVR 3 Solenoid Valve 3/8" ODF Solder NC Refrigeration
Pricing
Request a quote
We reply within 24 hours
Product Description

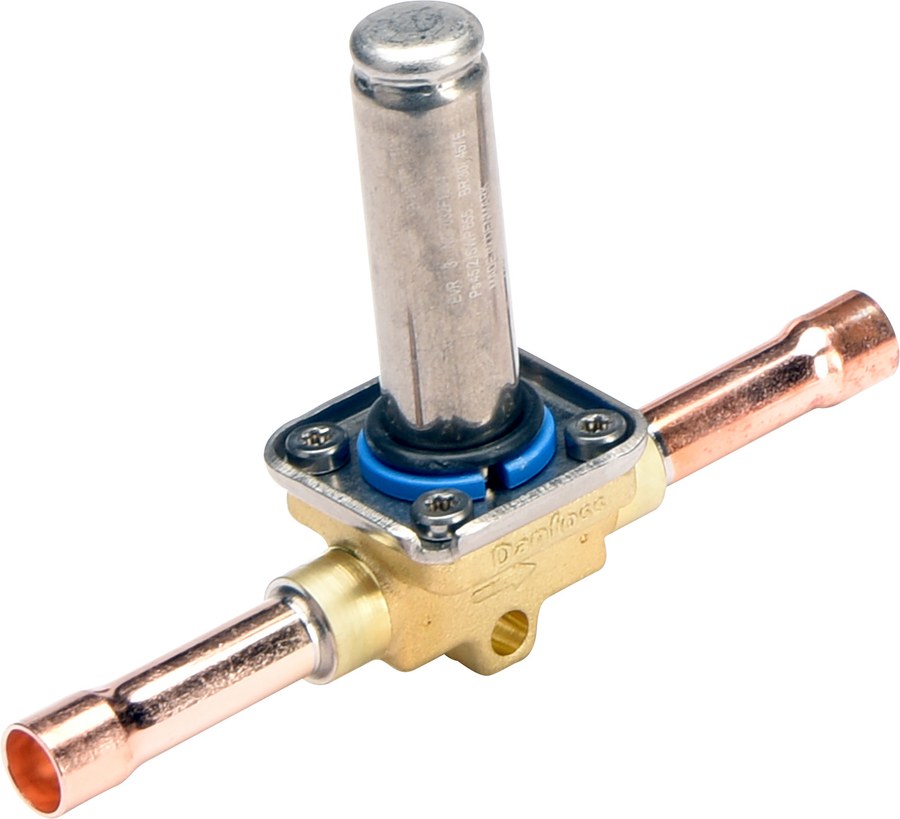

Danfoss EVR 3 normally closed solenoid valve for refrigeration liquid, suction, and hot-gas lines. 3/8" ODF solder connections. Provides on-off electrical control of fluid flow in refrigeration, hydraulic or pneumatic lines.
Technical Specifications
- Type
- 2-Way Normally Closed Solenoid Valve
- Series
- EVR 3
- Connection
- 3/8" (10mm) ODF Solder
- Kv
- 0.27 m³/h
- Max Working Pressure
- 45.2 bar
- Media Temp
- -40 to +105°C
- Body
- Brass
- Refrigerants
- R134a, R404A, R407C, R410A, R22, R513A
- Coil
- Sold separately (BE024DS, BG024DS)
- Function
- NC (Normally Closed)
- Code number
- 032F1204
- Product group
- Solenoid valves
- Type designation
- Solenoid valve, Solder
- Direction
- Straightway
- Valve operation
- Direct
- Inlet connection type
- Solder, ODF
- Inlet size
- 3/8 in
- Outlet connection type
- Solder, ODF
- Outlet size
- 3/8 in
- Orifice size
- 3.30 mm
- Cv value
- 0.310 gal/min
- MaxOPD 10W AC
- 38 bar
- MWP PED compliant
- 49 bar
- MinODP
- 0.000 bar
- MOPD [bar/psi]
- Coil Dependent
- Medium temp. range note
- Defrost max 130°C/265°F
- Ambient temperature
- -40 - 80 °C
- Lubricants compatibility
- AB; MO; PAG; PAO; POE; PVE
- Fluid Group
- 1; 2
- PED category
- Art. 4, par. 3
- Approval
- EAC; LLC CDC TYSK
- UL approved refrigerants
- R1234ze(E); R125; R134a; R152a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R513B; R515A; R515B; R600; R600a
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.174 kg
- EAN
- 5702422004189
- Actuator system
- 13.5 mm
- Identical product
- 032F5084
- Manual operation option
- No
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Material
- Brass body, NBR/FKM seals
- Temperature Range
- -10°C to +80°C (media)
- Classification / Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- HS Code
- 8481.80
Compatibility & Fitment
Refrigerant compatibility listed. Verify with your system spec.
