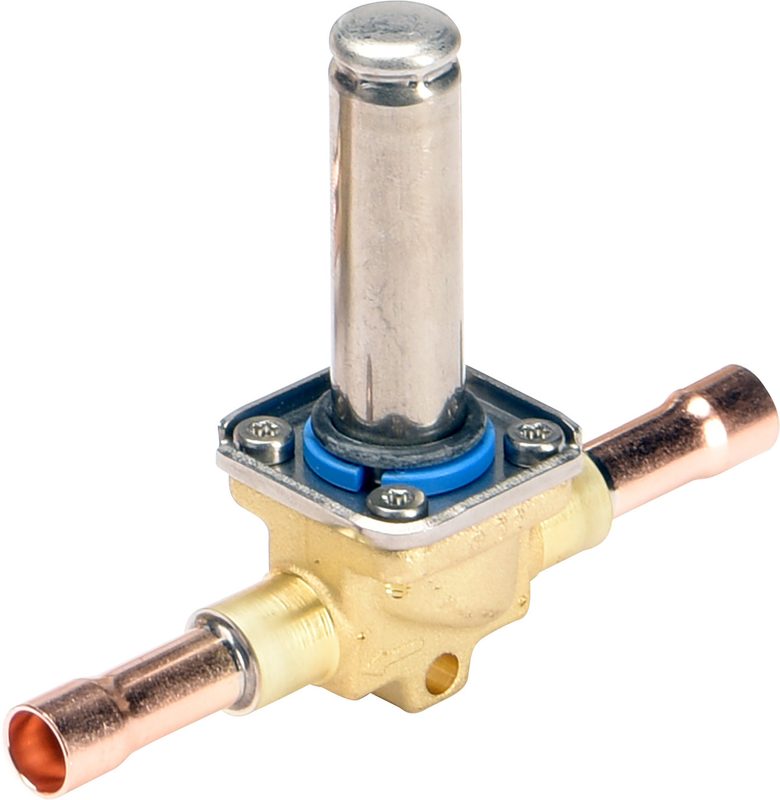

Danfoss EVR 6 Solenoid Valve 1/2" ODF Solder NC Refrigeration

Danfoss EVR 6 normally closed solenoid valve for refrigeration and air conditioning systems. 1/2" ODF solder connections. Provides on-off electrical control of fluid flow in refrigeration, hydraulic or pneumatic lines.

Type

2-Way Normally Closed Solenoid Valve

Series

EVR 6

Connection

1/2" (12mm) ODF Solder

Kv

1.0 m³/h

Max Working Pressure

45.2 bar

Media Temp

-40 to +105°C

Body

Brass

Refrigerants

R134a, R404A, R407C, R410A, R22, R513A

Coil

Sold separately

Function

NC (Normally Closed)

Code number

032L1209

Product group

Solenoid valves

Type designation

Solenoid valve, Solder

Direction

Straightway

Valve operation

Servo-diaphragm

Inlet connection type

Solder, ODF

Inlet size

1/2 in

Outlet connection type

Solder, ODF

Outlet size

1/2 in

Orifice size

6.00 mm

Cv value

1.150 gal/min

MaxOPD 10W AC

38 bar

MaxOPD 20W DC

28 bar

MaxOPD coil BJ/BX

38 bar

MWP PED compliant

49 bar

MinODP

0.030 bar

MOPD [bar/psi]

Coil Dependent

Medium temp. range note

Defrost max 130°C/265°F

Ambient temperature

-40 - 80 °C

Lubricants compatibility

AB; MO; PAG; PAO; POE; PVE

Fluid Group

1; 2

PED category

Art. 4, par. 3

Approval

EAC; LLC CDC EURO-TYSK; UL

UL approved refrigerants

R1234ze(E); R125; R134a; R152a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R513B; R515A; R515B; R600; R600a

UL mark

Yes

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.19 kg

EAN

5702428952910

Actuator system

13.5 mm

Identical product

032L7308

Material

Brass body, NBR/FKM seals

Temperature Range

-10°C to +80°C (media)

Classification / Approval

CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL

HS Code

8481.80
